Rev. 1 | Page 21 of 50 | www.onsemi.com
ADM1029
MEASURE
FAN SPEED
FAN 1 (REG 0x70)
FAN 2 (REG 0x71)
PROGRAM FAN
MINIMUM DUTY CYCLE
FAN 1 (REG 0x60)
FAN 2 (REG 0x61)
CONFIGURE TEMP
COOLING ACTION
LOCAL TEMP (REG 0x48)
REMOTE 1 TEMP (REG 0x49)
REMOTE 2 TEMP (REG 0x4A)
PROGRAM FAN START
TEMPERATURE, TMIN
LOCAL TEMP (REG 0x80)
REMOTE 1 TEMP (REG 0x81)
REMOTE 2 TEMP (REG 0x82)
PROGRAM TEMP-TO-FAN
SPEED CONTROL SLOPE,
TRANGE
LOCAL TEMP (REG 0x88)
REMOTE 1 TEMP (REG 0x89)
REMOTE 2 TEMP (REG 0x8A)
CONFIGURE CONTROL
LOOP HYSTERESIS
LOCAL TEMP (REG 0x88)
REMOTE 1 TEMP (REG 0x89)
REMOTE 2 TEMP (REG 0x8A)
CONFIGURE FAN
SPIN-UP TIME
(REGISTER 0x0C)
CONFIGURE PWM DRIVE
FREQUENCY
FAN 1 (REG 0x68)
FAN 2 (REG 0x69)
CONFIGURE TACH
OSCILLATOR FREQUENCY
FAN 1 (REG 0x68)
FAN 2 (REG 0x69)
TEMP COOLING ACTION (CONFIGURE REG 0x48 FOR LOCAL
TEMP, REG 0x49 FOR REMOTE 1 TEMP AND REG 0x4A FOR
REMOTE 2 TEMP)
OPTION 1
OPTION 2
OPTION 3
OPTION 4
OPTION 5
ADM1029
REMOTE 1
TEMPERATURE
REMOTE 2
TEMPERATURE
FAN 1
FAN 2
OPTION 1
ADM1029
LOCAL TEMP
FAN 1
FAN 2
OPTION 2
ADM1029
REMOTE 1
TEMPERATURE
FAN 1
FAN 2
OPTION 3
REMOTE 2
TEMPERATURE
REMOTE 2
TEMPERATURE
ADM1029
REMOTE 1
TEMPERATURE
FAN 1
FAN 2
OPTION 4
REMOTE 1
TEMPERATURE
REMOTE 2
TEMPERATURE
FAN 1
FAN 2
OPTION 5
ADM1029
LOCAL TEMP
BIT 0 (REG 0x49) AND/OR BIT 1 (REG 0x4A) = 1
REMOTE 1 TEMP CONTROLS FAN 1
REMOTE 2 TEMP CONTROLS FAN 2
BIT 0 (REG 0x48) AND BIT 1 (REG 0x48) = 1
LOCAL TEMP CONTROLS FAN 1 AND/OR FAN 2
BIT 0 (REG 0x49) AND BIT 1 (REG 0x49) = 1
REMOTE 1 TEMP CONTROLS FAN 1 AND/OR FAN 2
BIT 0, 1 (REG 0x48, 0x49, 0x4A) = 1
FAN 1 AND/OR FAN 2 RUNS AT FASTEST SPEED
CALCULATED BY ALL TEMPERATURE CHANNELS
BIT 0 (REG 0x4A) AND BIT 1 (REG 0x4A) = 1
REMOTE 2 TEMP CONTROLS FAN 1 AND/OR FAN 2

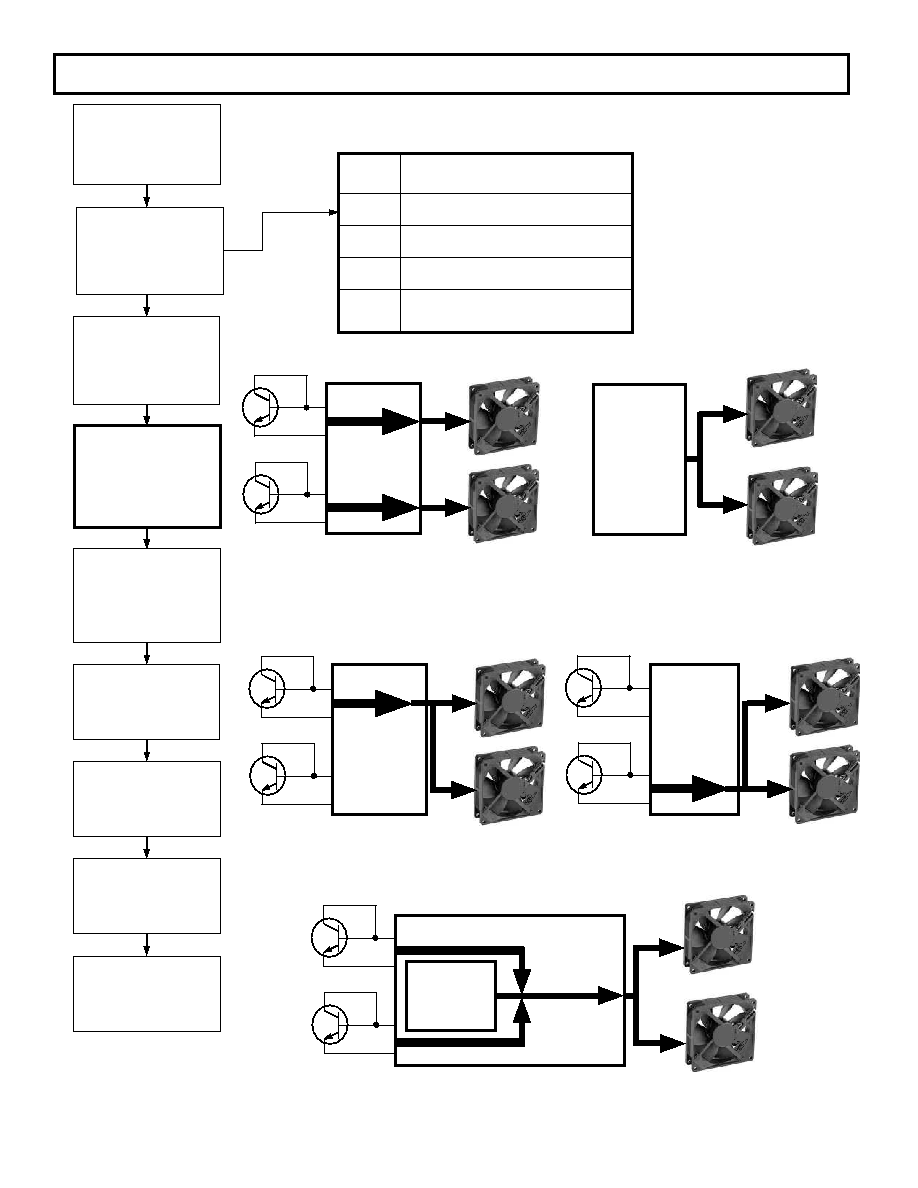

Figure 15. Configuring Automatic Fan Speed Control
