Features

• Enhanced design!

100% backward compatible with

previous generation

(SST-PFB-CLX)

Up to 2 times faster

Easier to change module’s

configuration with PLC in RUN

mode

Runs without ladder code

Module can “Set Slave” address

Dynamically add/remove

Profibus slaves from scan list

• Remote Configuration and

diagnostic through RSLinx ®

• Profibus modules can be used in

Local or Remote (through CIP

networks) Racks

• Certified PROFIBUS CommDTM

driver for FDT Frame engineering

tools

• Provides user-defined data space

up to 1984 Bytes Input and

1968 Bytes Output

• Supports all PROFIBUS baud rates

including 45.45 kbps

• Manages DP-V1 Services

• Simultaneous operation of

PROFIBUS DP Master and Slave

• Multiple SST-PB3-CLX-RLL modules

can be used in one CLX rack

Protocols

• PROFIBUS DP-V0 Master Class 1&2

• PROFIBUS DP-V1 Master Class 1&2

• PROFIBUS DP-V0 Slave

Typical Applications

• Chemical or pharmaceutical

application running PROFIBUS PA

• Machine builder application with

high-speed control requirements

PROFIBUS® DP Master/Slave

For the Rockwell ControlLogix® Controller

Overview

The BradCommunications

™ SST™ Profibus® module connects your Rockwell

ControlLogix

® controller to Profibus as a master or slave to scan or emulate

PROFIBUS DP I/O. With the new user-defined data space of 1984 Bytes Input and

1968 Bytes Output, the BradCommunications

™ SST™ Profibus module provides a

cost efficient solution to connect the ControlLogix CPU with large PROFIBUS

networks.

Remote Link Library

The Remote Link Library software provides added functionality to the

BradCommunications SST Profibus module by allowing you to remotely monitor or

download changes to your Profibus configuration. This is done by routing data from

the BradCommunications SST Profibus DP Master Configuration software through

Rockwell Automation

®’s RSLinx software via Ethernet to the Allen-Bradley

ControlLogix backplane. The Profibus Scanner can be used on a Local Rack or on

a Remote Rack through CIP networks like EtherNet/IP or ControlNet

CommDTM Driver for FDT Tools

By purchasing SST-PB3-CLX-DTM part number, you will get the driver license to

use the certified CommDTM driver conforms to FDT v1.2 specifications. It is the

ideal solution for connecting FDT engineering tools such as PACTware

™ or

FieldCare

™ to PROFIBUS. It allows the linking with Device DTMs for the

configuration and diagnostics with DP-V1 devices including Profibus PA field

instruments.

- Fieldcare Screenshot -

- Pactware Screenshot -

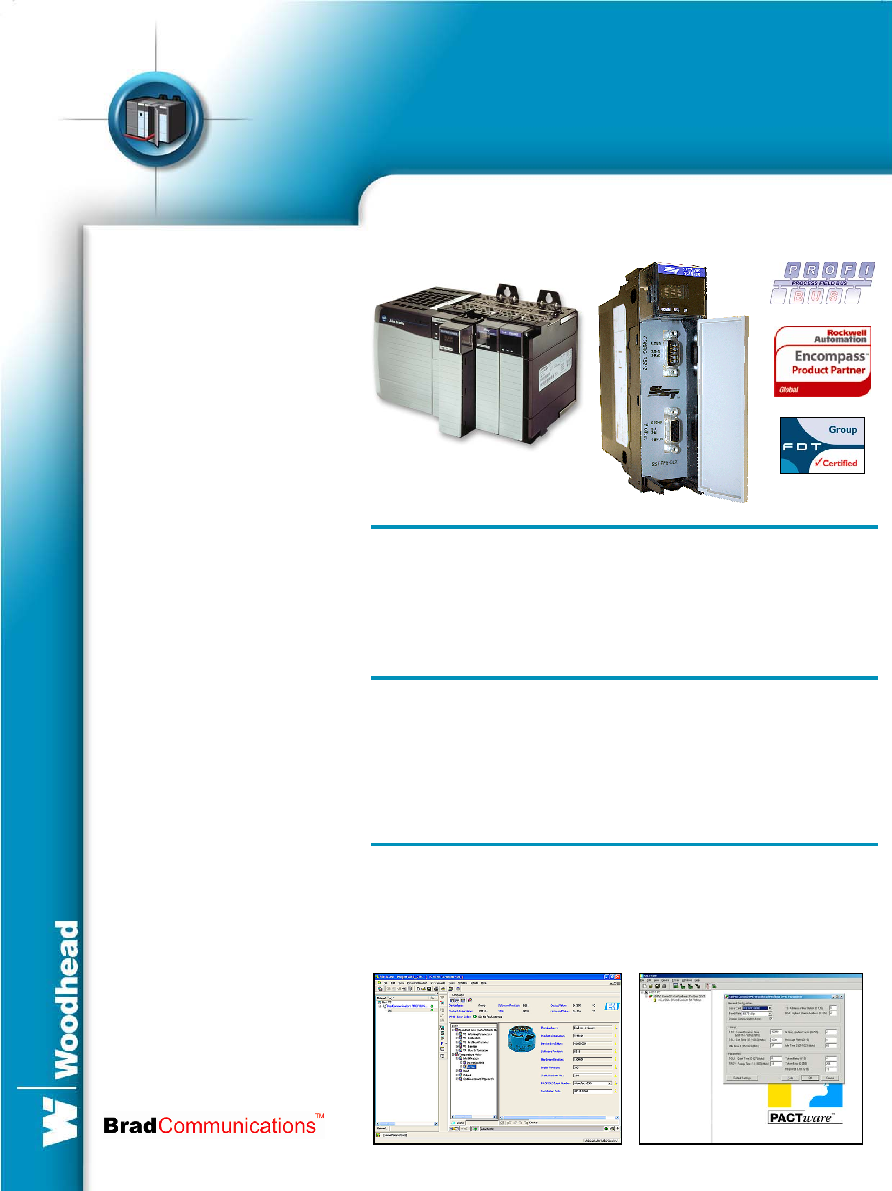

The BradCommunications™ SST Profibus communication

module connects your Rockwell ControlLogix® controller

to PROFIBUS DP network.
