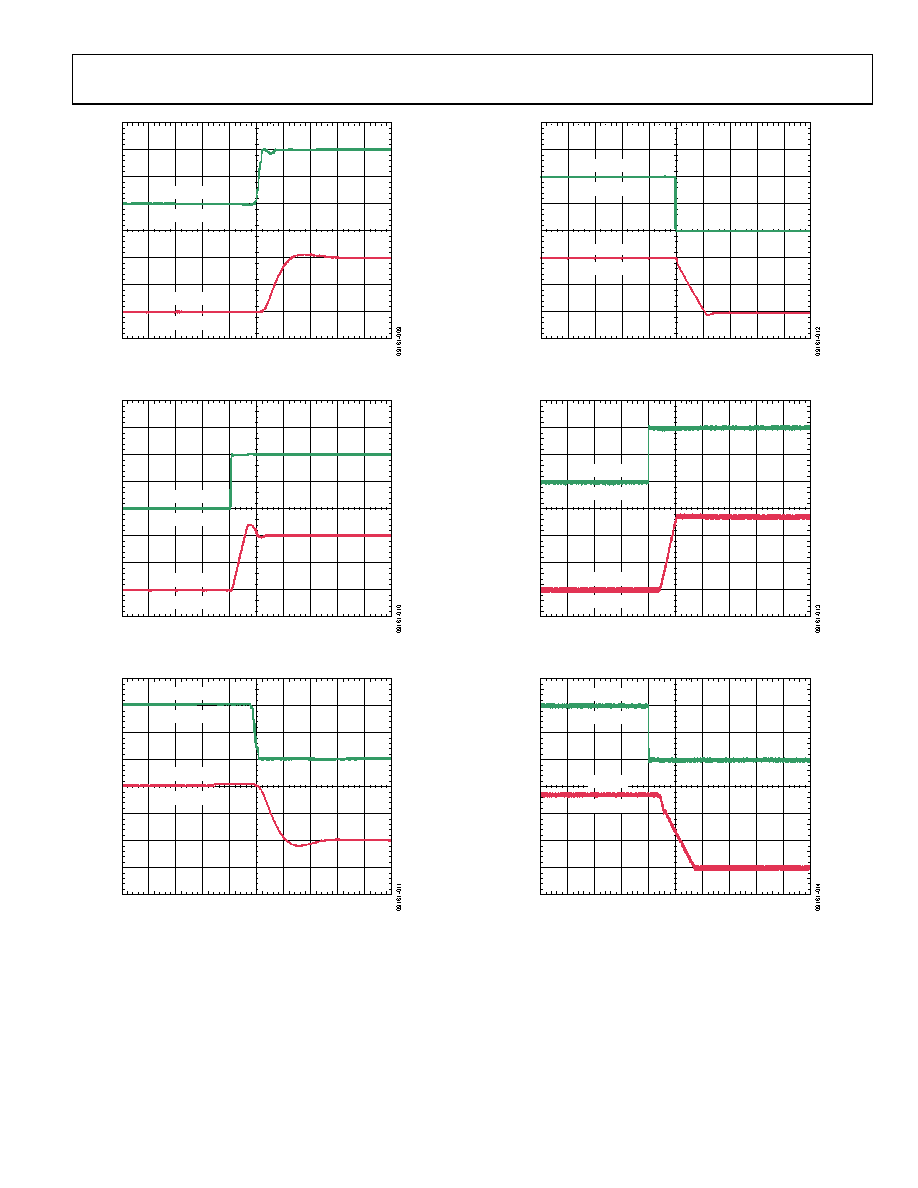

AD8217
Rev. 0 | Page 7 of 16
INPUT
OUTPUT
5mV/DIV
1µs/DIV
100mV/DIV
Figure 9. Rise Time (Differential Input = 5 mV)
INPUT
OUTPUT
100mV/DIV
2V/DIV
5µs/DIV
Figure 10. Rise Time (Differential Input = 200 mV)
INPUT
OUTPUT
5mV/DIV
100mV/DIV
1µs/DIV
Figure 11. Fall Time (Differential Input = 5 mV)
INPUT
OUTPUT
100mV/DIV
2V/DIV
5µs/DIV
Figure 12. Fall Time (Differential Input = 200 mV)
INPUT
OUTPUT
200mV/DIV
2V/DIV
5µs/DIV
Figure 13. Differential Overload Recovery, Rising
INPUT
OUTPUT
200mV/DIV
2V/DIV
5µs/DIV
Figure 14. Differential Overload Recovery, Falling
