Typical applications

IGBT

Snubbering

Climatic

Max. operating temperature: 110

°C

Climatic category (IEC 60068-1): 55/100/56

Construction

Dielectric: polypropylene (PP)

Wound capacitor technology with internal

series connection

Plastic case (UL 94 V-0)

Epoxy resin sealing (UL 94 V-0)

Features

High pulse strength and high contact reliability

Very low inductance

Terminals

Strap terminals, tinned copper or brass (max. torque 10 Nm)

Marking

Manufacturer's logo, ordering code, style (MKP)

rated capacitance (coded), cap. tolerance (code letter),

rated DC voltage, date of manufacture (coded)

Delivery mode

Bulk (untaped)

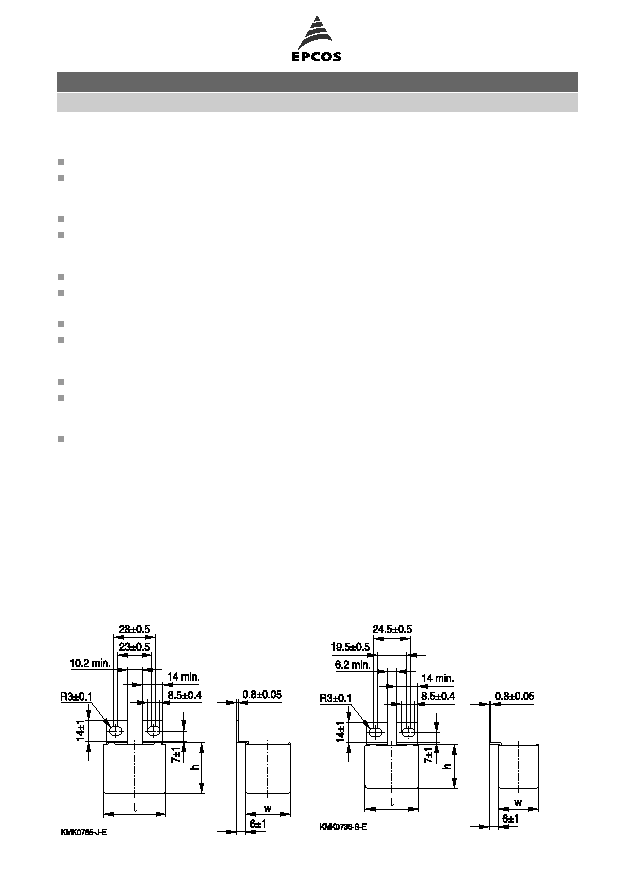

Dimensional drawings

T1 (code no. 561)

T2 (code no. 562)

Metallized polypropylene film capacitors (MKP)

B32656S

Snubber (wound)
