 10 / 20 page
background image

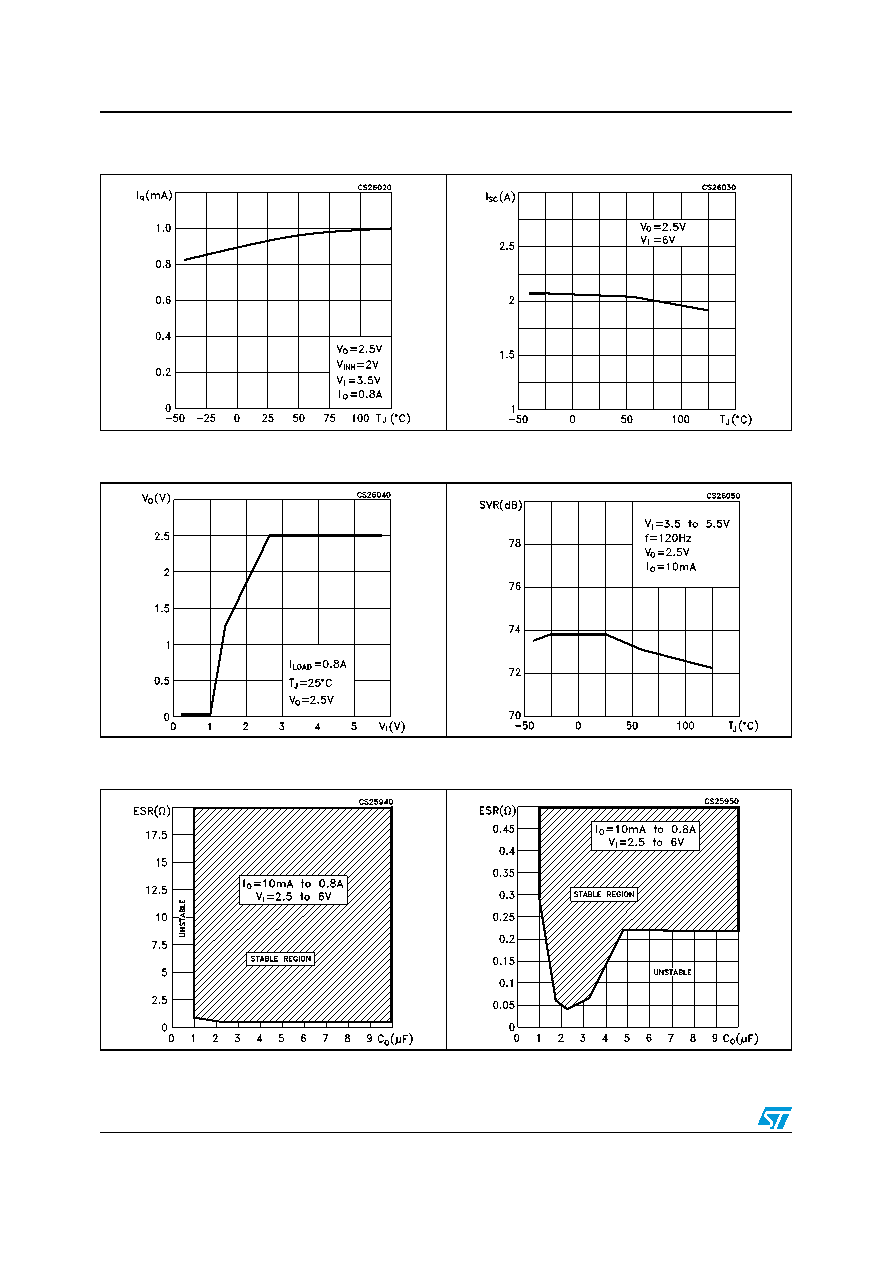

Typical performance characteristics
LD39080
10/20
Figure 13.
Quiescent current vs temperature
Figure 14.
Short circuit current vs temperature
Figure 15.
Output voltage vs input voltage
Figure 16.
Supply voltage rejection vs
temperature
Figure 17.
Stability region vs CO & ESR (at
100kHz)
Figure 18.
Stability region vs CO & Low ESR
(at 100kHz)
