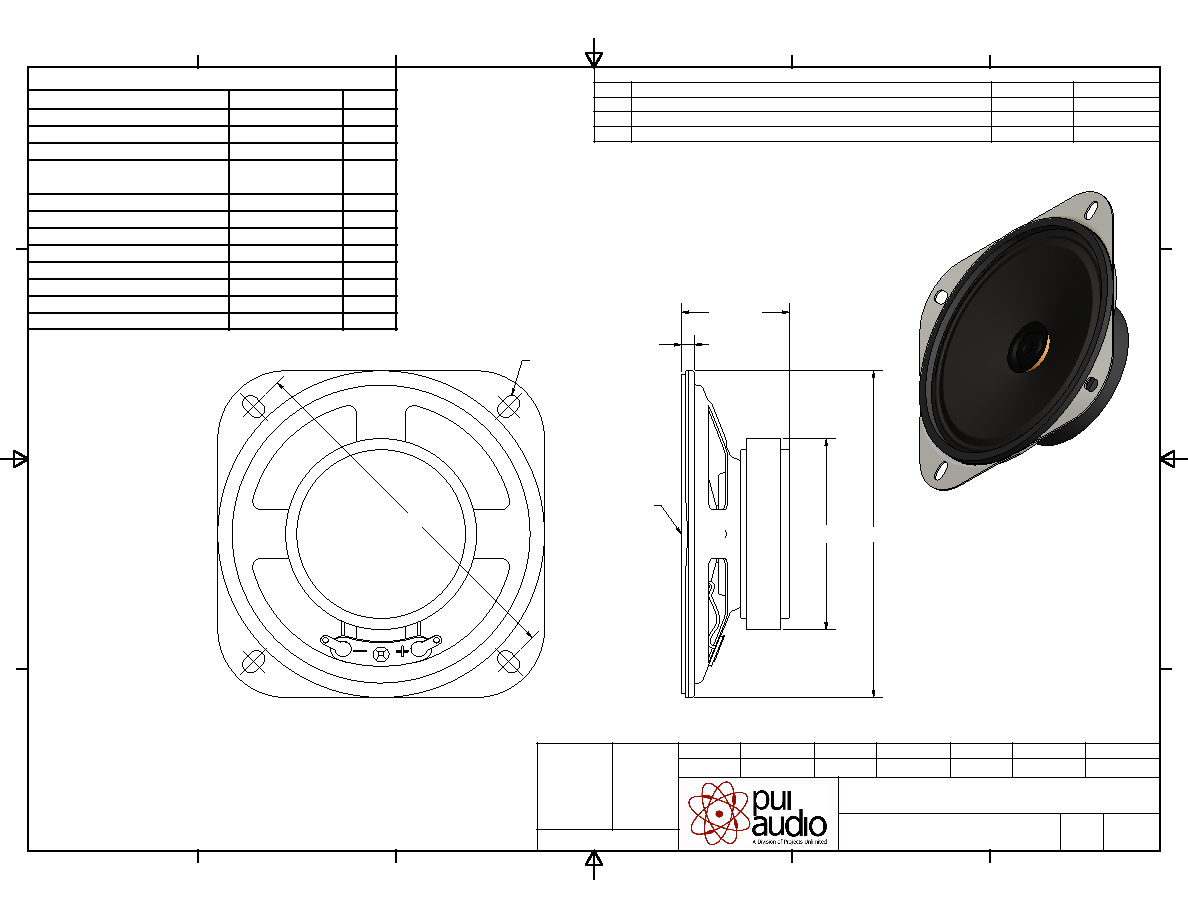

Speaker

AS07708PS-2-WR-R

B.R.

E.P.

1/28/2009

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

3/30/2006

Date

3/30/2006

Date

3/30/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS07708PS-2-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

3/30/2006

A

ADDED MOUNTING HOLE DIMENSION

12/19/2007

R.W.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/28/2009

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

4

W

MAX INPUT POWER

8

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/1M

(AT 400, 600, 800, 1.0 kHz)

90 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

270 ± 20%

Hz

FREQUENCY RANGE

270 ~ 8,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-20 ~ +50

°C

WEIGHT

118

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

Δ4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

85

3

`0.3

25.5

`1

45

n`1

77

Ø

3.8 x 5.8 (4)

Δ4
