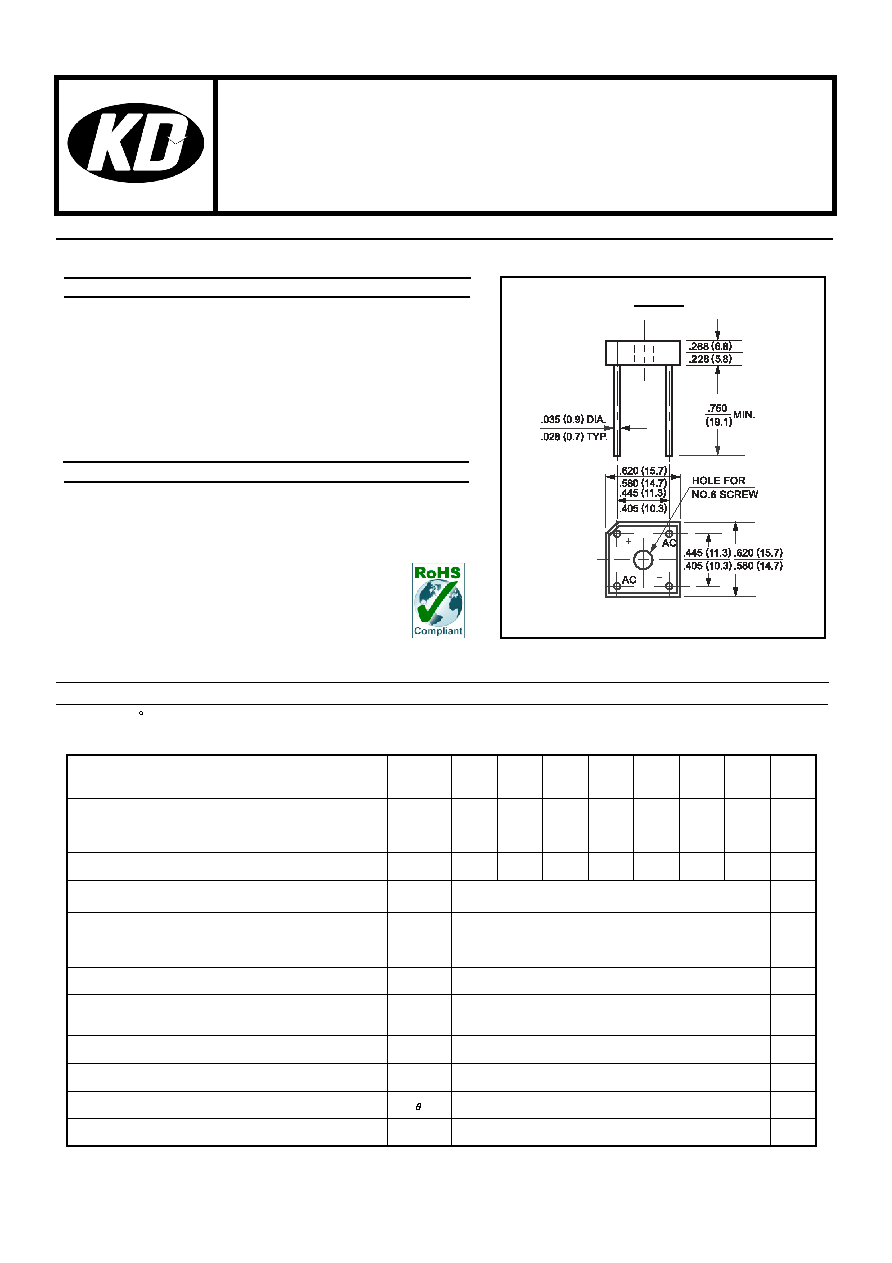

KBPC3005 THRU KBPC310

SINGLE PHASE SILICON BRIDGE RECTIFIER

Reverse Voltage - 50 to 1000 Volts

Forward Current - 3.0 Ampere

FEATURES

MECHANICAL DATA

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

●

Diffused Junction

●

Case: UL-94 Class V-0 recognized Flame Retardant Epoxy

●

Terminals: Plated leads solderable per

MIL-STD 202, method 208

●

Mounting Position: Any

●

Marking: Type Number

Surge overload rating: 50A peak

Dimensions in inches and (milimeters)

KBPC3

Characteristic

Symbol KBPC

3005

KBPC

301

KBPC

302

KBPC

304

KBPC

306

KBPC

308

KBPC

310

Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

VRRM

VRWM

VR

50

100

200

400

600

800

1000

V

RMS Reverse Voltage

VR(RMS)

35

70

140

280

420

560

700

V

Average Rectified Output Current (Note 1) @TC = 50°C

IO

3.0

A

Non-Repetitive Peak Forward Surge Current 8.3ms

Single half sine-wave superimposed on rated load

(JEDEC Method)

IFSM

A

Forward Voltage per leg

@IF = 1.5A

VFM

1.1

V

Peak Reverse Current

@TA = 25°C

At Rated DC Blocking Voltage

@TA = 125°C

IR

5.0

500

µA

I2t Rating for Fusing (t<8.3ms) (Note 2)

I2t

A2s

Typical Junction Capacitance (Note 3)

Cj

pF

Typical Thermal Resistance per leg (Note 1)

R JC

°C/W

Operating and Storage Temperature Range

Tj, TSTG

-65 to +125

°C

Note: 1. Mounted on metal chassis.

2. Non-repetitive, for t > 1ms and < 8.3ms.

3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
