AD8220

Rev. B | Page 8 of 28

ABSOLUTE MAXIMUM RATINGS

Table 3.

Parameter

Rating

Supply Voltage

±18 V

Power Dissipation

See Figure 3

Output Short-Circuit Current

Indefinite1

Input Voltage (Common Mode)

±Vs

Differential Input Voltage

±Vs

Storage Temperature Range

−65°C to +125°C

Operating Temperature Range2

−40°C to +125°C

Lead Temperature (Soldering 10 sec)

300°C

Junction Temperature

140°C

θJA (4-Layer JEDEC Standard Board)

135°C/W

Package Glass Transition Temperature

140°C

ESD (Human Body Model)

4 kV

ESD (Charge Device Model)

1 kV

ESD (Machine Model)

0.4 kV

1 Assumes the load is referenced to midsupply.

2 Temperature for specified performance is −40°C to +85°C. For performance

to 125°C, see the Typical Performance Characteristics section.

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

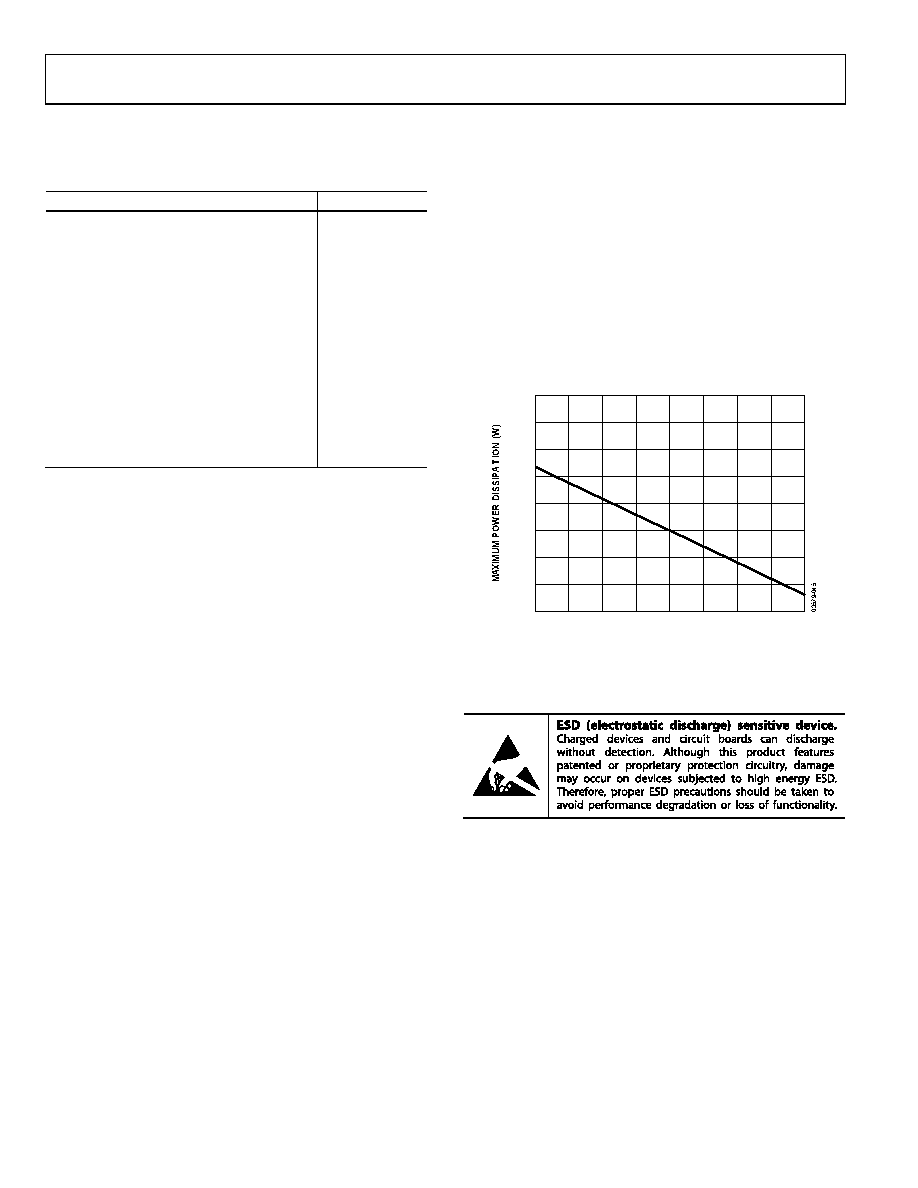

Figure 3 shows the maximum safe power dissipation in the

package vs. the ambient temperature for the MSOP on a 4-layer

JEDEC standard board. θJA values are approximations.

2.00

–40

120

AMBIENT TEMPERATURE (°C)

1.75

1.50

1.25

1.00

0.75

0.50

0.25

–20

100

Figure 3. Maximum Power Dissipation vs. Ambient Temperature

ESD CAUTION
