NJM2829 데이터시트(PDF) 7 Page - New Japan Radio

부품명 NJM2829
상세설명  Very Low Output Negative Voltage Regulator
PDF  9 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  NJRC [New Japan Radio]
홈페이지  http://www.jrc.co.jp/eng/index.html
Logo NJRC - New Japan Radio

NJM2829 데이터시트(HTML) 7 Page - New Japan Radio

  NJM2829 Datasheet HTML 1Page - New Japan Radio NJM2829 Datasheet HTML 2Page - New Japan Radio NJM2829 Datasheet HTML 3Page - New Japan Radio NJM2829 Datasheet HTML 4Page - New Japan Radio NJM2829 Datasheet HTML 5Page - New Japan Radio NJM2829 Datasheet HTML 6Page - New Japan Radio NJM2829 Datasheet HTML 7Page - New Japan Radio NJM2829 Datasheet HTML 8Page - New Japan Radio NJM2829 Datasheet HTML 9Page - New Japan Radio
Zoom Inzoom in Zoom Outzoom out
 7 / 9 page
background image
NJM2829
- 7 -
Ver.2011-01-27
0
0.5
1
1.5
2
-50
0
50
100
150
Temperature : Ta (
oC)

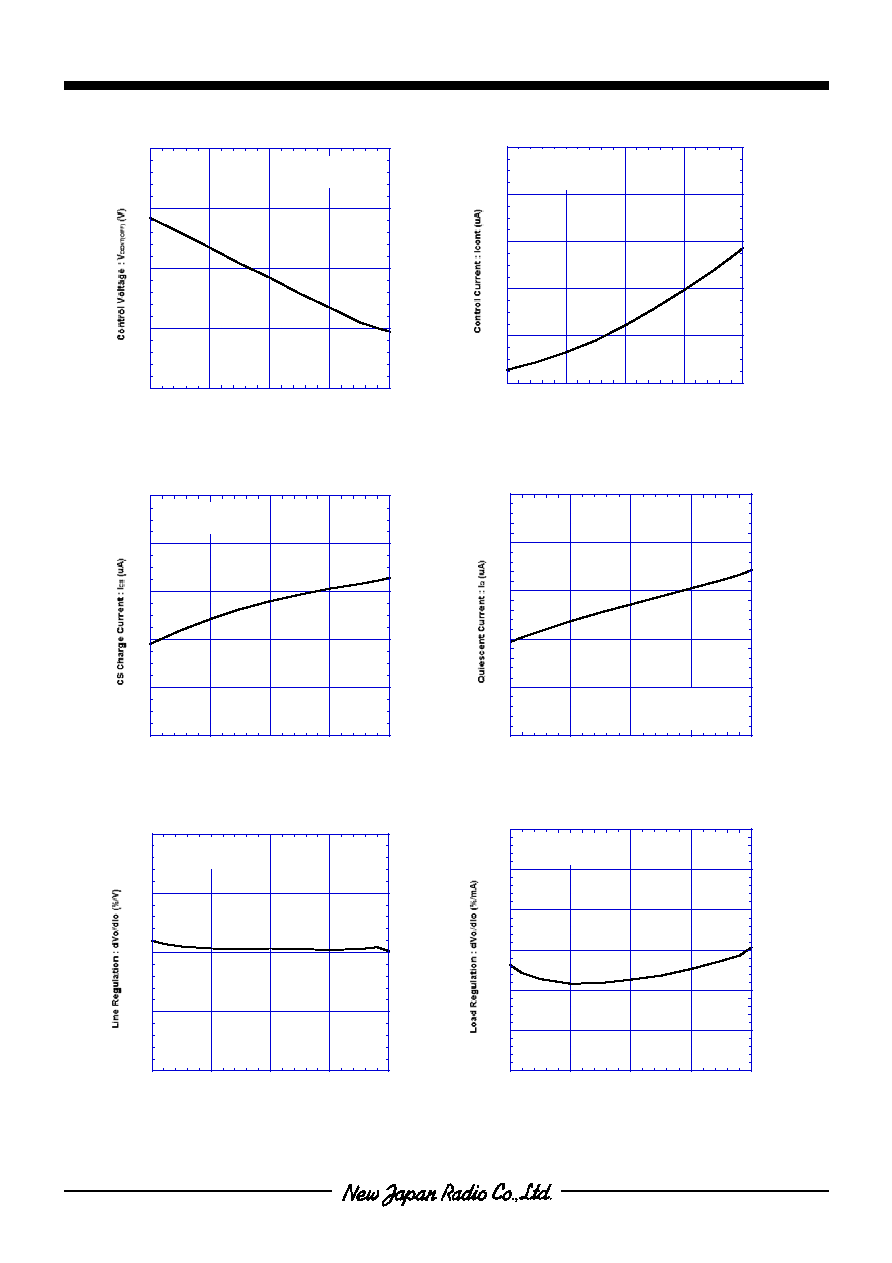

NJM2829_-1.0V
Control Voltage v.s. Temperature
@:VIN=-3.2V
Io=30mA
Co=1uF(Ceramic)
0
2
4
6
8
10
-50
0
50
100
150
Temperature : Ta (
oC)
NJM2829_-1.0V
CS Charge Current vs. Temperature
@:VIN=-3.2V
CS is short to ground.(VI)
Co=2.2uF(Ceramic)
0
50
100
150
200
250
-50
0
50
100
150
Temperature : Ta (
oC)
NJM2829_-1.0V
Quiescent Current vs. Temperature
@:VIN=-3.2V
Output is open.
Co=2.2uF(Ceramic)
Icont, including
-0.1
-0.05
0
0.05
0.1
-50
0
50
100
150
Temperature : Ta (
oC)
NJM2829_-1.0V
Line Regulation vs. Temperature
@:dVIN=-3.2-12V
Io=30mA
Co=2.2uF(Ceramic)
0
0.005
0.01
0.015
0.02
0.025
0.03
-50
0
50
100
150
Temperature : Ta (
oC)
NJM2829_-1.0V
Load Regulation vs. Temperature
@:VIN=-3.2V
Io=0-60mA
Co=2.2uF(Ceramic)
0
2
4
6
8
10
-50
0
50
100
150
NJM2829_1.0V
Control Current vs. Temperature
Temperature : Ta (
oC)
@:VIN=-3.2V
Output : No Load
Co=2.2uF
Vcont=1.6V
