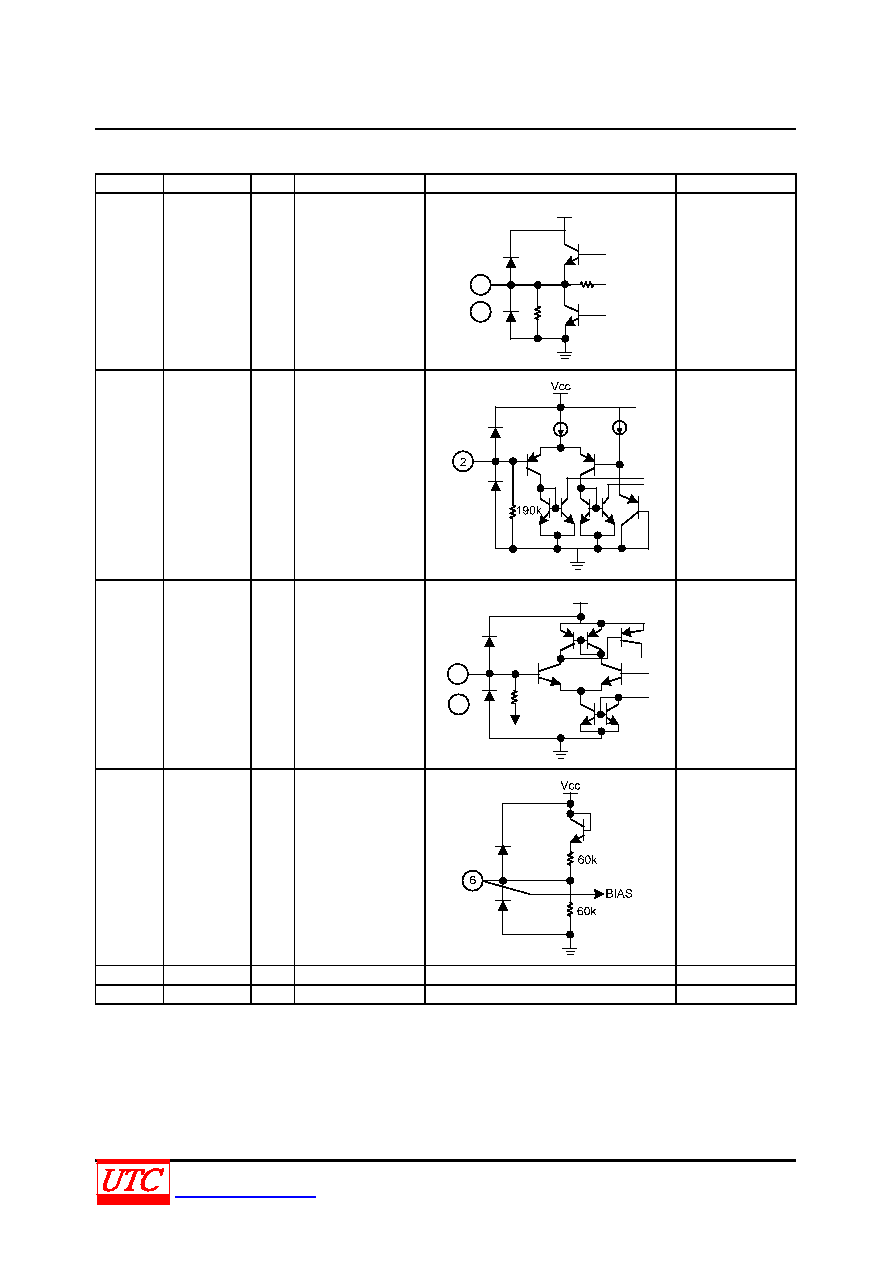

background image
3544
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 10
www.unisonic.com.tw
QW-R107-040,C
PIN DESCRIPTIONS
PIN NO.
PIN NAME
I/O
PIN VOLTAGE
INTERNAL EQUIVALENT CIRCUIT
FUNCTION
1
7
OUT1
OUT2
O
O
2.1V
2.1V
(VCC=5V)
Vcc
10k
1
7
Output pin
2
MUTE
I
0.1V
(When open)
Mute control pin
(set to low for
prevention of
popping noise
when power is
turned on and off).
Operating: High
Muting: Low(open)
3
5
IN1
IN2
I
I
2.1V
2.1V
(VCC=5V)
3
5
Vcc
180k
BIAS
Input pin
6
BIAS
I/O
2.1V
(VCC=5V)
Bias pin (the
external 47μF
capacitor also
serves as the
anti-pop time
constant, therefore
make the proper
considerations be
changing it).
4
GND
I
8
VCC
I
