75185
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
8 of 10
www.unisonic.com.tw
QW-R113-003,F

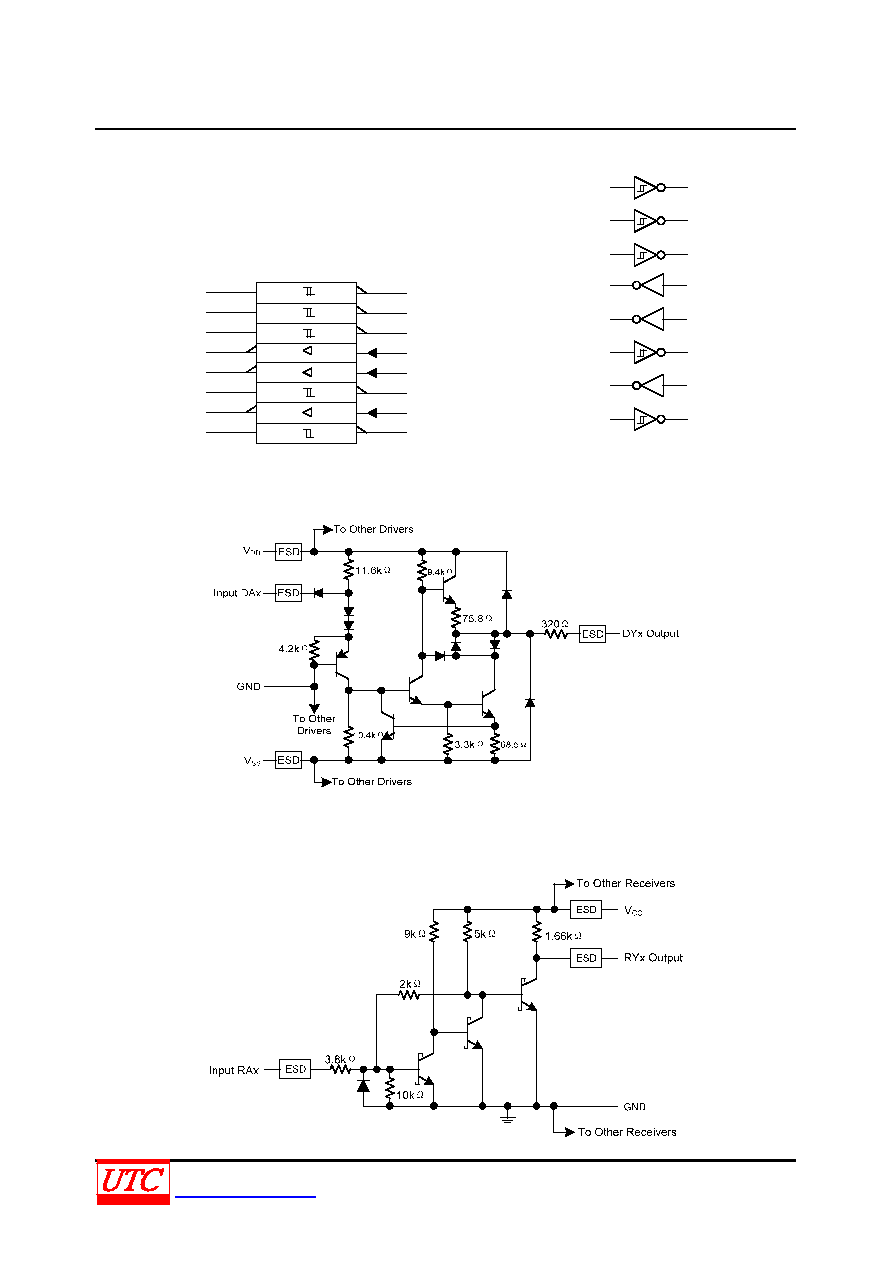

LOGIC SYMBOL AND LOGIC DIAGRAM
19
18
17
16
15
14
13
12
RY1
RY2
RY3
DA1
DA2
RY4
DA3
RY5
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
2
3
4
5
6
7
8
9
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
RY1
RY2
RY3
DA1
DA2
RY4
DA3
RY5
CIRCUIT OF DRIVERS (Resistor value shown are nominal.)
CIRCUIT OF EACH RECEIVER (Resistor value shown are nominal.)
