Axial Leaded

www.littelfuse.com

©2006 Littelfuse

DO-41 Series

Specifications are subject to change without notice.

4

Telecom Design Guide

CONSTRUCTION VARIATION

0

P

: Single SIDACtor chip used

as a single device

PACKING STYLE

RP : Reel Pack per EIA RS-296

SURGE I

H

: 35A 10/1000µs

PACKAGE TYPE

T : DO-41

L : RoHS Compliant

DEVICE TYPE

: SIDACtor

Pxxx0 T HLRP

MEDIAN VOLTAGE

xxx : xxx volts

Part Marking System

Part Numbering System

Package

Type

Description

Packing

Quantity

Added

Suffix

Industry

Standard

DO-41

Axial

5000

RP

EIA RS-296

Packaging

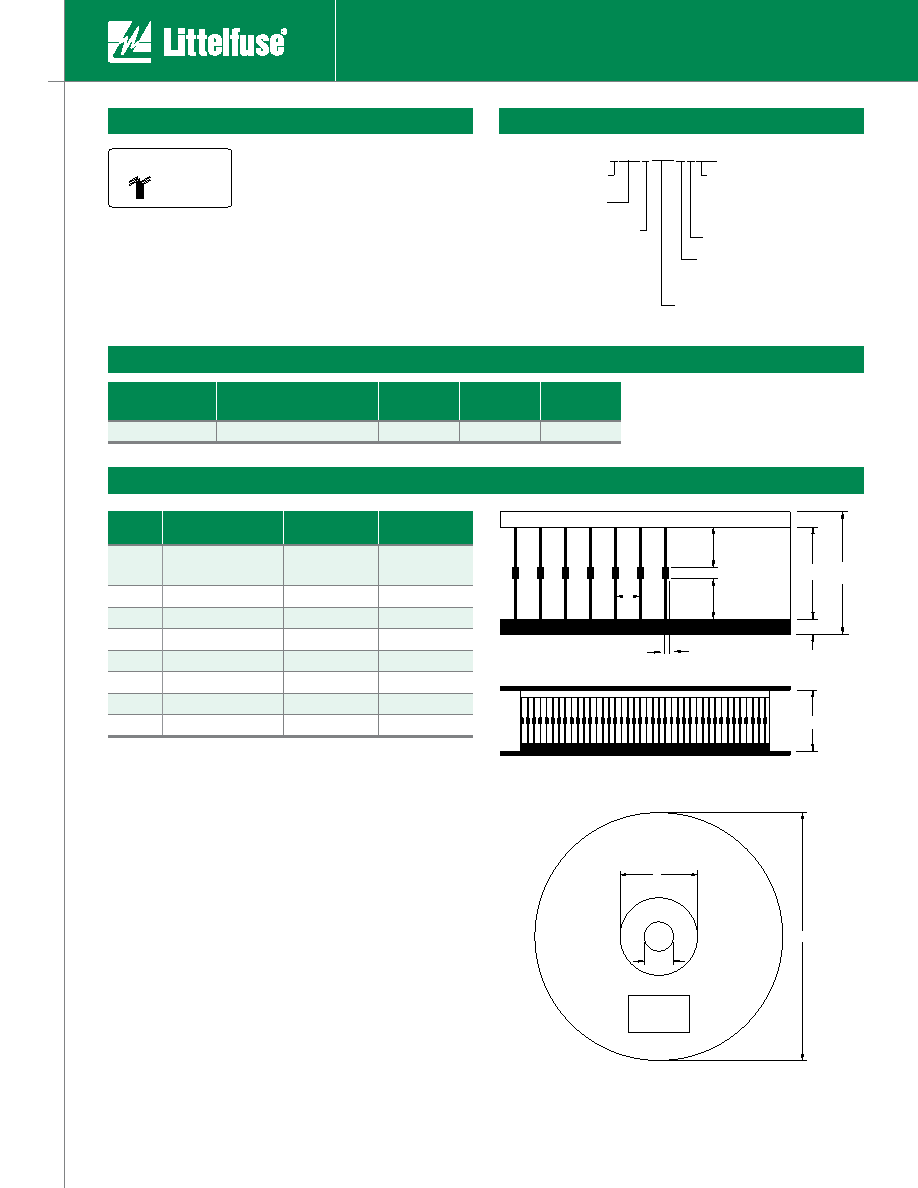

Tape and Reel Specification

Symbol

Case Type

Inches

MM

A

Component Spacing

(lead to lead)

0.200 ± 0.020”

5.08 ± 0.508

B

Tape Spacing

2.062 ± 0.059”

52.37 ± 1.498

C

Tape Width

0.250”

6.35

D

Max. Off Alignment

0.048”

1.219

E

Reel Dimension

13”

330.2

F

Max Hub Recess

3”

76.19

G

Max. Abor Hole

0.68”

17.27

H

Reel Dimension

2.75”

69.85

First Line: Product Name (see marking column in

table on page 1)

Second Line: Lot number

XXXX

XXXX

OFF CENTER BOTH SIDES

(±0.039")

B

OVERALL

LENGTH

C

A

E

F

G

H

LABEL

recess depth max 0.75”

D

OFF CENTER BOTH SIDES

(±0.039")

B

OVERALL

LENGTH

C

A

E

F

G

H

LABEL

recess depth max 0.75”

D
