FEATURES

DIRECT REPLACEMENT FOR SILICONIX LSDPAD10

HIGH ON ISOLATION

20fA

ULTRALOW LEAKAGE ≤ 10 pA

REVERSE BREAKDOWN VOLTAGE

REVERSE CAPACITANCE

ABSOLUTE MAXIMUM RATINGS

@ 25°C (unless otherwise noted)

Maximum Temperatures

Storage Temperature ‐65°C to +150°C

Operating Junction Temperature ‐55°C to +135°C

Maximum Power Dissipation

Continuous Power Dissipation

500mW

MAXIMUM CURRENT

Forward Current (Note 1)

50mA





LSDPAD10 ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)

SYMBOL

CHARACTERISTICS

MIN.

TYP.

MAX.

UNITS

CONDITIONS

Reverse Breakdown Voltage ‐45

‐‐

‐‐

V

IR = ‐1µA

Forward Voltage

‐‐

0.8

1.5

V

IF = 1mA

Total Reverse Capacitance

‐‐

‐‐

2.0

pF

‐‐

‐‐

0.5

pF

Maximum Reverse Leakage Current

‐‐

‐‐

‐10

pA

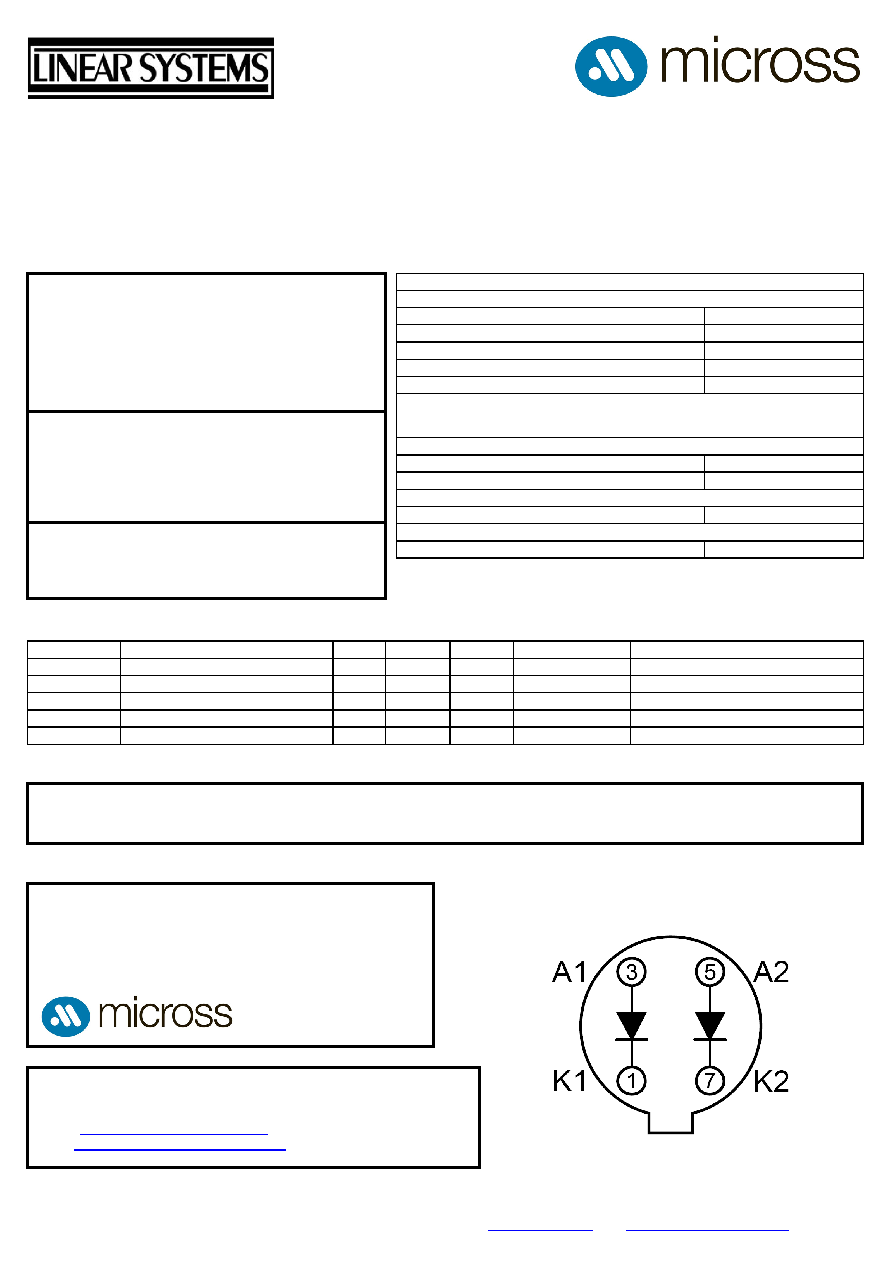

TO-72 (Bottom View)

The LSDPAD10 extremely low-leakage monolithic dual

diode provides a superior alternative to conventional

diode technology when reverse current (leakage) must

be minimized. In addition the monolithic dual

construction allows excellent capacitance matching per

diode. The LSDPAD10 features a leakage current of -

10 pA and is well suited for use in applications such as

input protection for operational amplifiers.

LSDPAD10 Benefits:

Negligible Circuit Leakage Contribution

Circuit “Transparent” Except to Shunt

High-Frequency Spikes

Simplicity of Operation

LSDPAD10 Applications:

Op Amp Input Protection

Multiplexer Overvoltage Protection

The LSDPAD10 is a low leakage Monolithic Dual Pico-Amp Diode

LSDPAD10

LOW LEAKAGE

PICO-AMP DUAL DIODE

Available Packages:

LSDPAD10 in TO-72

LSDPAD10 available as bare die

Please contact Micross for full package and die dimensions

Linear Systems replaces discontinued Siliconix LSDPAD10

Notes:

1. Absolute maximum ratings are limiting values above which LSDPAD10 serviceability may be impaired.
