USB2SER Data Sheet, Rev. 0
Pins and Connections
Freescale Semiconductor
4
1
Pins and Connections
1.1
Block diagram

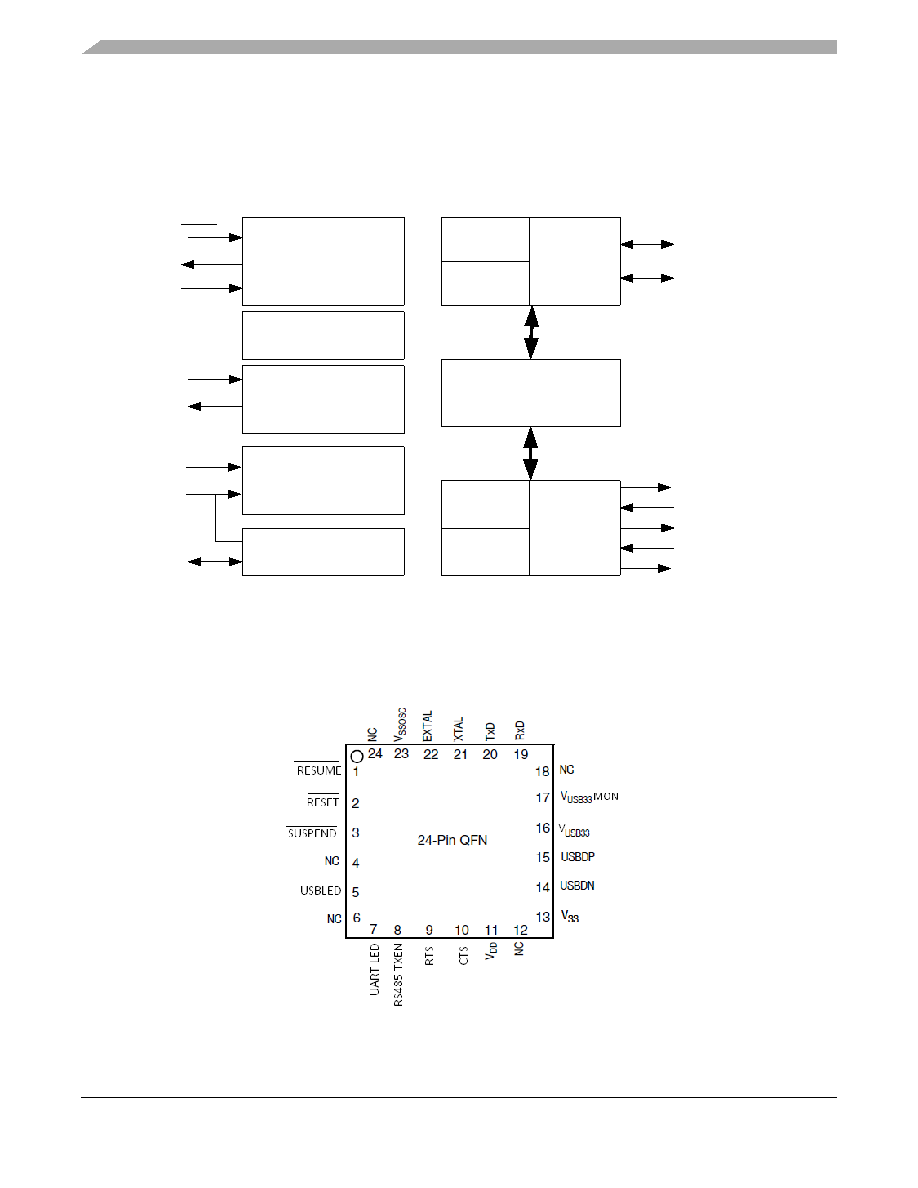

Figure 1. Device block diagram
1.2
Device pin out
Figure 2. USB2SER — 24-QFN Package
System Control
Reset
Power Management
Reset
Suspend
Resume
User Flash
512 Bytes
Clock Generator
Module
EXTAL
XTAL
System Voltage
Regulator
USB 3.3 Voltage
Regulator
VDD
VSS
VUSB33
USB
Module
Endpoint
RAM
Full Speed
USB
Transceiver
USB2SER
Engine
UART TX
RAM
UART /
RS485
UART RX
RAM
USBDP
USBDN
TXD
RXD
RTS
CTS
RS485 CTL
