Preliminary Technical Data
AD8420
Rev. PrD | Page 7 of 7

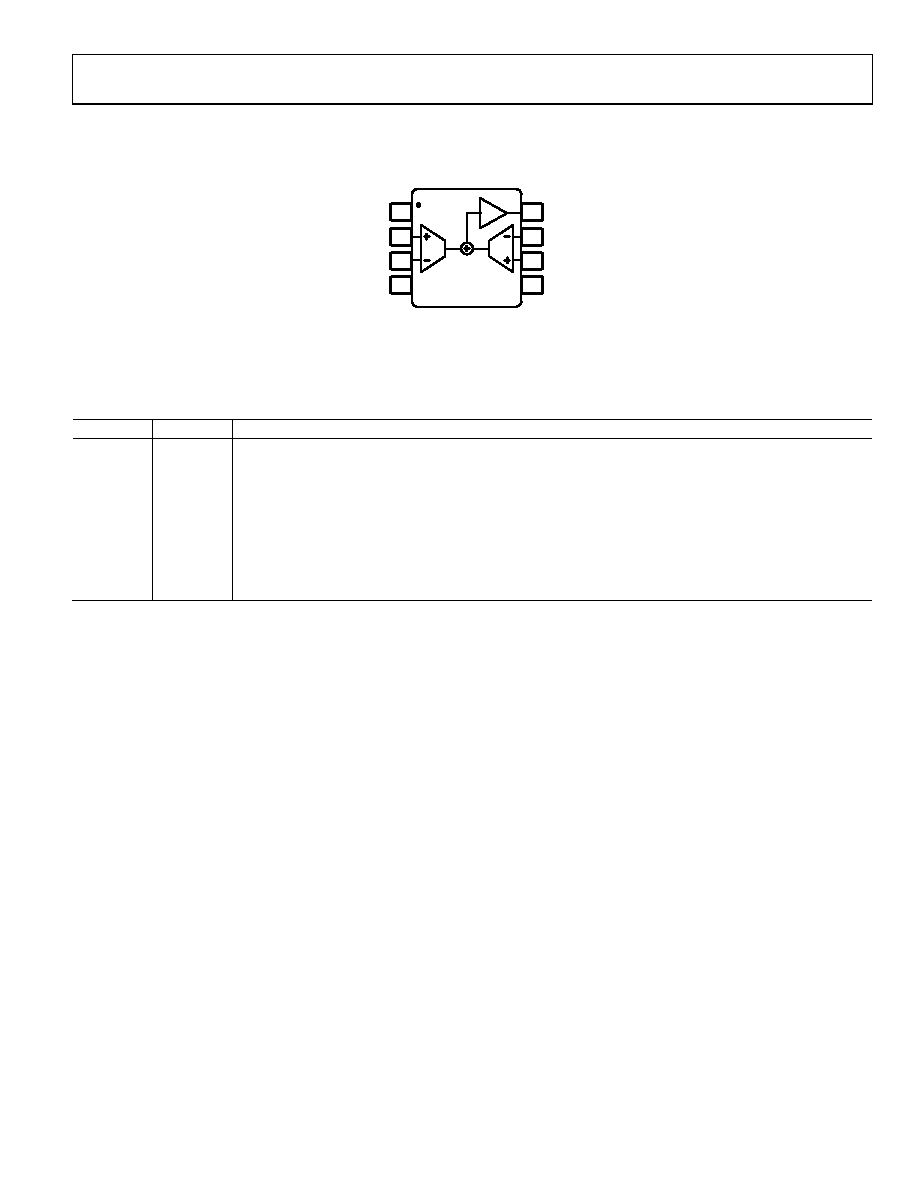

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
TOP VIEW
(Not to Scale)
–IN
1
NC
2
3
+IN
4
+VS
8
VOUT
7
REF
6
–VS
5
AD8420
FB
Figure 2. Pin Configuration
Table 6. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
NC
This pin not connected internally. For best CMRR vs. frequency and leakage performance, connect this pin to
negative supply.
2
+IN
Positive Input.
3
−IN
Negative Input
4
−VS
Negative Supply.
5
+VS
Positive Supply.
6
REF
Reference.
7
FB
Feedback.
8
VOUT
Output.
