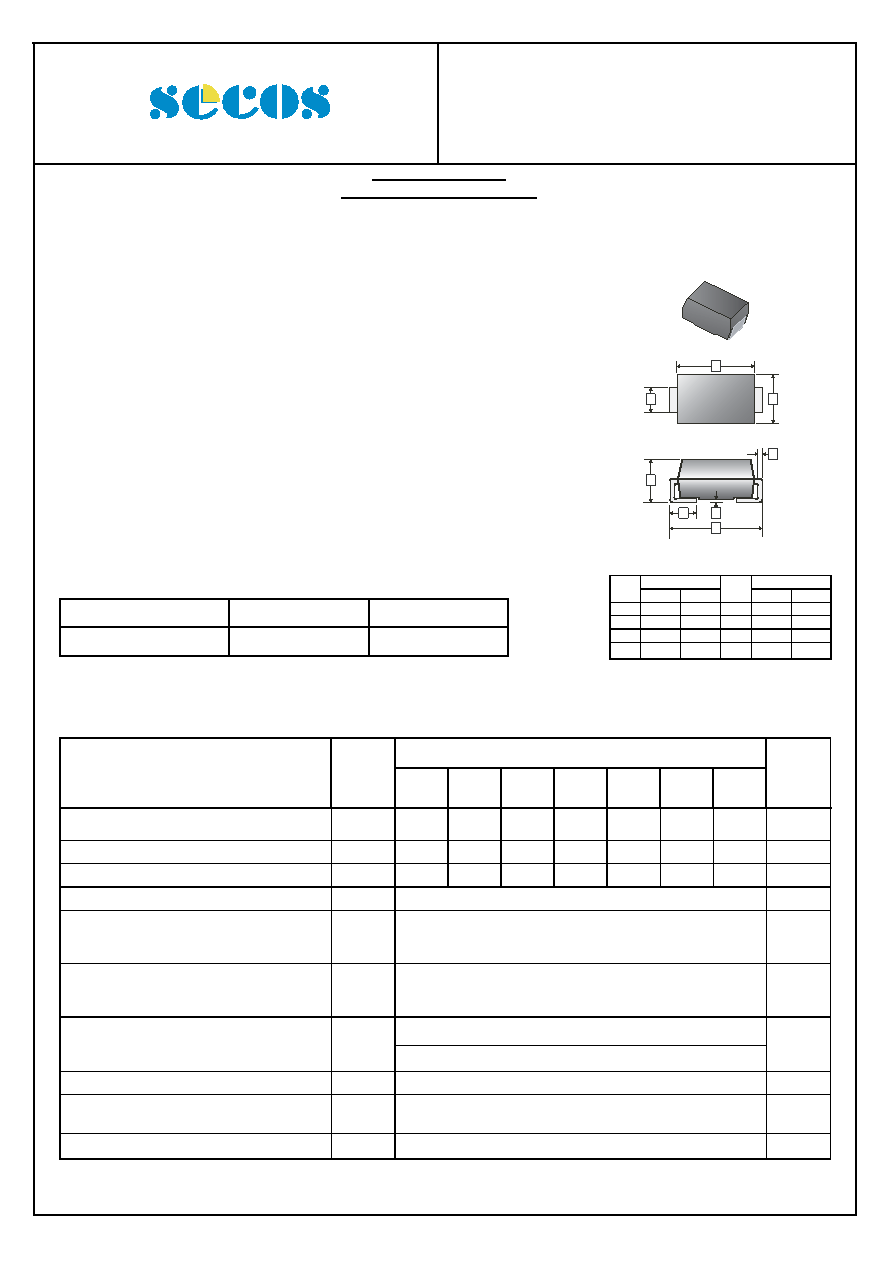

QG501C ~ QG507C

50 ~ 1000 V

5.0 Amp Surface Mount Silicon

General Purpose Rectifiers

Elektronische Bauelemente

16-Dec-2010 Rev. A

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

A

B

E

G

D

F

C

H

RoHS Compliant Product

A suffix of “-C” specifies halogen-free

FEATURES



Glass passivated junction



High surge current capability



Low reverse current



Component in accordance to RoHS 2002/95/EC

MECHANICAL DATA



Cases：SMC(DO-214AB)



Case Material：Molded Plastic. UL Flammability

Classification Rating 94V-0



Terminals：Lead Free Plating(Tin Finish)

Solderable Per MIL-STD-202, Method 208



Polarity：Cathode Band



Weight：0.231 grams(approximate)

PACKAGE INFORMATION

Product

MPQ

LeaderSize

QG501C~QG507C

3K / Reel

13” inch

Parameters

Symbol

Part Number

Units

QG

501C

QG

502C

QG

503C

QG

504C

QG

505C

QG

506C

QG

507C

Maximum repetitive peak reverse voltage

50

100

200

400

600

800

1000

V

Maximum RMS voltage

35

70

140

280

420

560

700

V

Maximum DC blocking voltage

50

100

200

400

600

800

1000

V

Maximum average forward rectified current

5.0

A

Peak Forward Surge Current, 8.3ms single

half sine-wave superimposed on rated load

125

A

Maximum Instantaneous

1.15

V

Maximum DC Reverse

Current at Rated DC

Blocking Voltage

@ TA=25°C

5

@TA=100°C

50

Typical Junction Capacitance (Note 1)

60

pF

Thermal Resistance Junction to Ambient

100

°C / W

Storage and Operating Temperature Range

-55 ~ 150, -55 ~ 150

°C

Notes：

1.

Measured at 1.0MHz and applied reverse voltage of 4.0V DC

SMC(DO-214AB)

REF.

Millimeter

REF.

Millimeter

Min.

Max.

Min.

Max.

A

2.750

3.250

E

-

0.203

B

6.520

7.110

F

7.750

8.130

C

5.590

6.220

G

0.760

1.520

D

2.000

2.620

H

0.150

0.305
