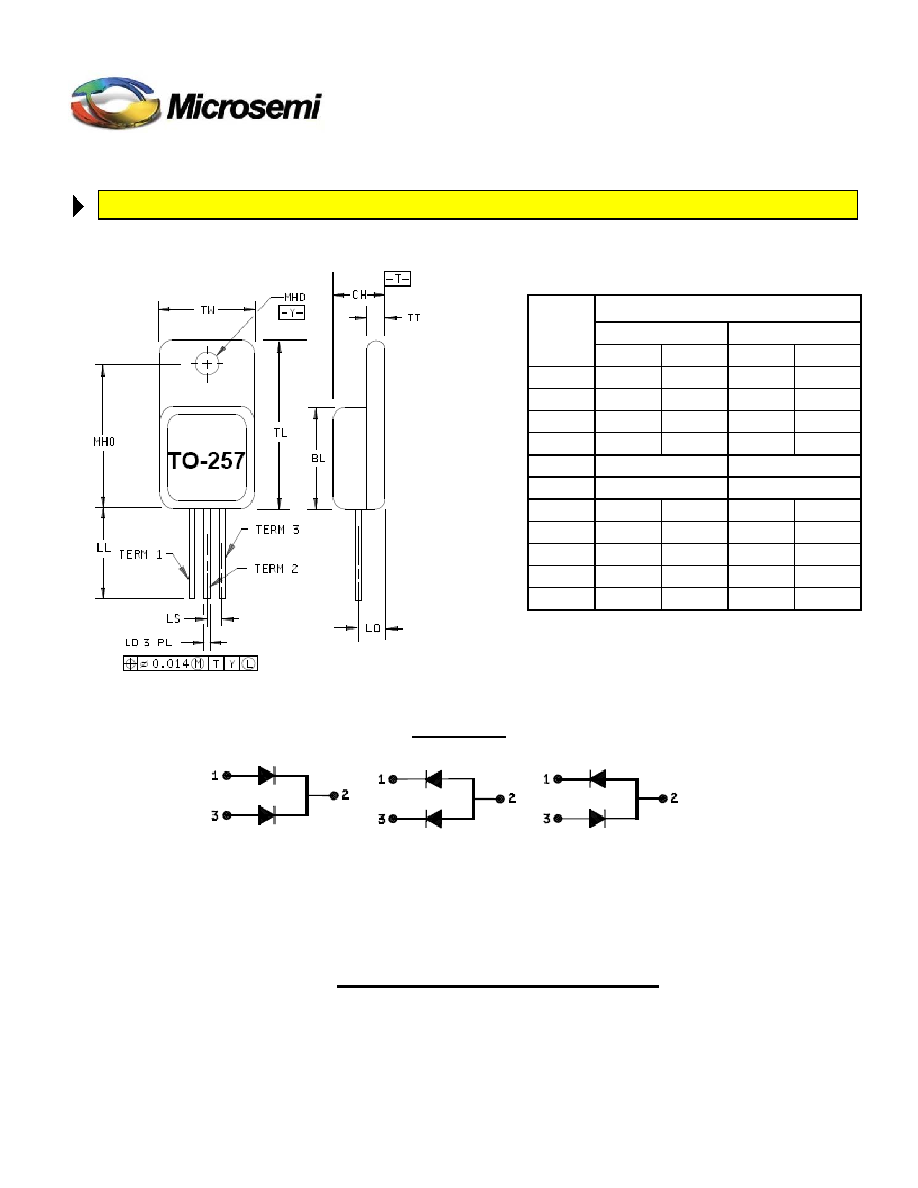

PACKAGE DIMENSIONS

SCHEMATIC

NOTE:

1.

Dimensions are in inches.

2.

Millimeters are given for general information only.

3.

In accordance with ASME Y14.5M. diameters are equivalent to

Φx symbology.

FIGURE 1: Physical dimension for TO-257, CC, CA, Doubler.

Dimensions

Ltr

Inches

Millimeters

Min

Max

Min

Max

BL

.410

.430

10.41

10.92

CH

.190

.200

4.83

5.08

LD

.025

.040

0.64

1.02

LL

.500

.750

12.70

19.05

LO

.120 BSC

3.05 BSC

LS

.100 BSC

2.54 BSC

MHD

.140

.150

3.56

3.81

MHO

.527

.537

13.39

13.64

TL

.645

.665

16.38

16.89

TT

.035

.045

0.89

1.14

TW

.410

.420

10.41

10.67
