STEW05CFN

Plastic Encapsulate ESD Protection Diodes

Elektronische Bauelemente

27-Jun-2011 Rev. A

Page 2 of 2

http://www.SeCoSGmbH.com

Any changes of specification will not be informed individually.

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Working Peak Reverse Voltage

-

-

5.0

V

Reverse Breakdown Voltage

6.2

-

7.2

V

Reverse Leakage Current

-

-

0.5

µ

A

Clamping Voltage (8/20 µs)

-

-

10

V

Typical Junction Capacitance

1

-

9

10

pF

0Vdc Bias f=1Mhz between pin 1,2 to 3

(Gnd)

Note:

1.

Capacitance between pins 1 and 2 is half of the value, in a bi-directional configuration.

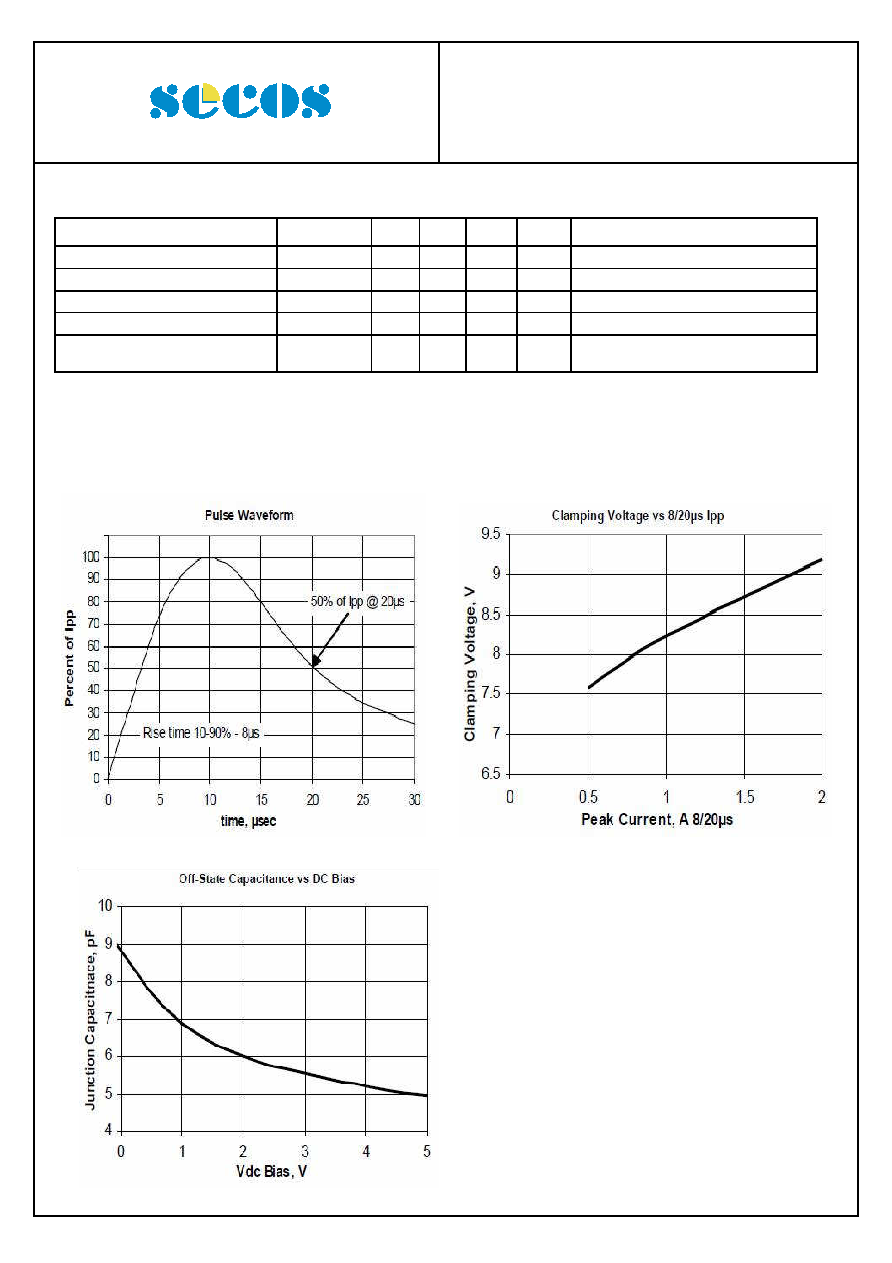

CHARACTERISTIC CURVES
