TL594
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
7 of 9
www.unisonic.com.tw
QW-R103-031.B

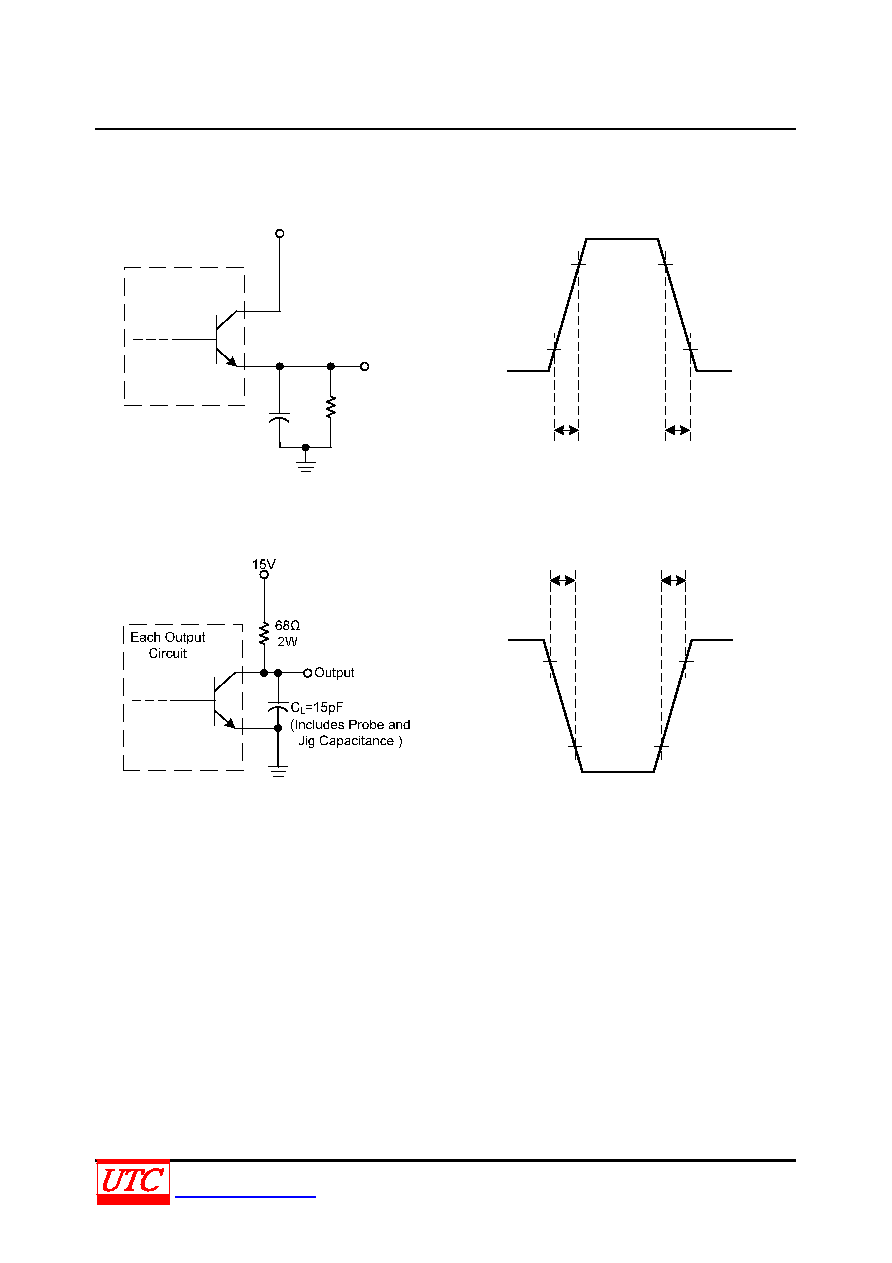

PARAMETER MEASUREMENT INFORMATION(Cont.)
Test Circuit
Output-Voltage Waveform
15V
Output
CL=15pF
Each Output
Circuit
(Includes Probe and
Jig Capacitance )
68Ω
2W
tF
tR
90%
90%
10%
10%
Figure 3. Emitter-Follower Configuration
Test Circuit
Output-Voltage Waveform
tF
tR
90%
90%
10%
10%
Figure 4. Common-Emitter Configuration
