US1528
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 8
www.unisonic.com.tw
QW-R502-457.b

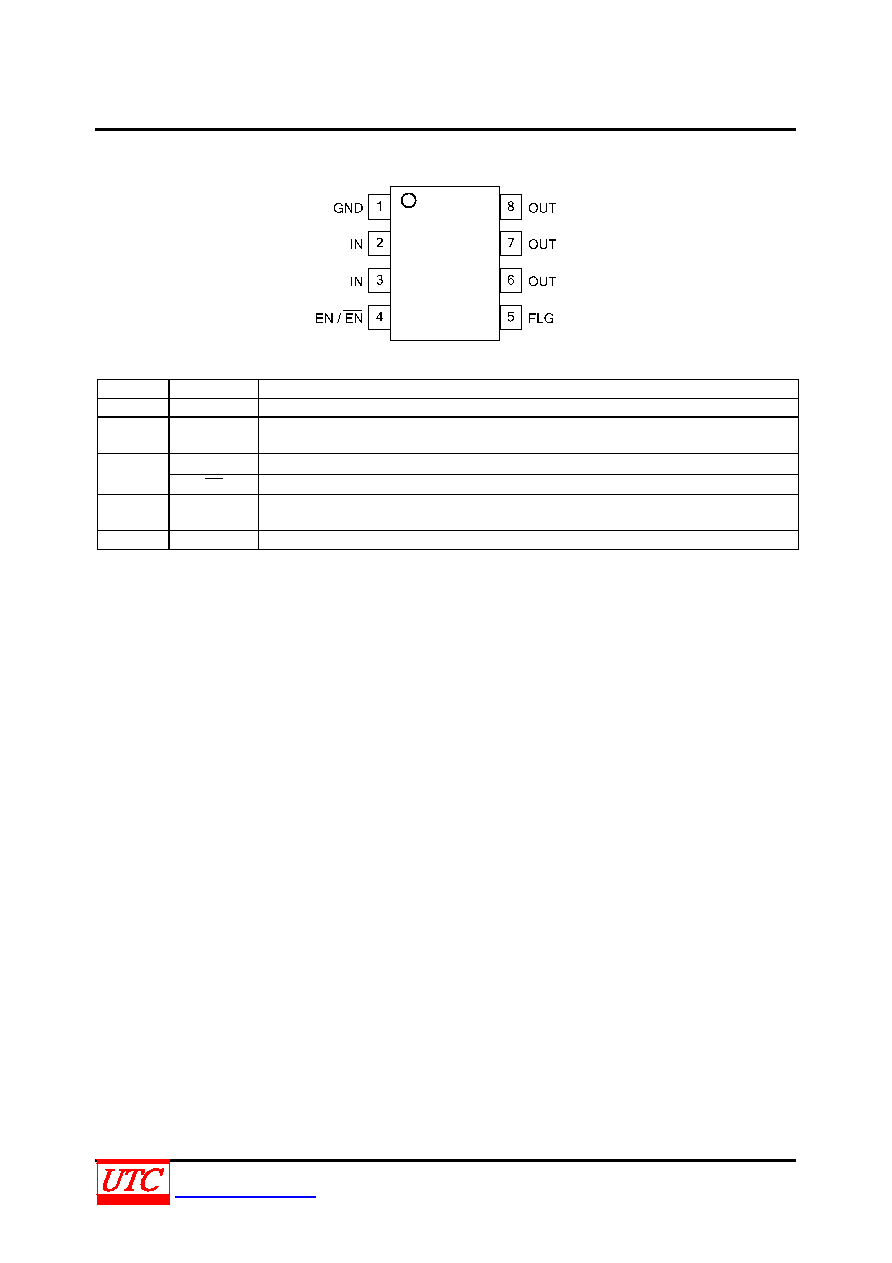

PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
GND
Ground.
2, 3
IN
Input Supply: Output MOSFET source, which also supplies IC's internal circuitry.
Connect to positive supply.
EN
Active-High switch enable input. A logic low turns on the switch.
4
EN
Active-Low switch enable input. A logic low turns on the switch.
5
FLG
Open-Drain Fault Flag (Output): Active-low, open-drain output. Indicates overcurrent,
thermal shutdown and UVLO.
6, 7, 8
OUT
Switch Output: Output MOSFET drain. Typically connect to switched side of load.
