MOUNTING INFORMATION

Mounting box for physical setting & stability. It is not waterproof, make connections with waterproof wire nuts.

MDEXLUMGU2_B

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

PRIVATE LABEL

OEM PROGRAM

Dialight Lumidrives

York House • Weatherby Road • Long Marston, York, YO26 7NH

Tel: 0845 6346161 • Fax: 0845 6346160 • www.dialight.com

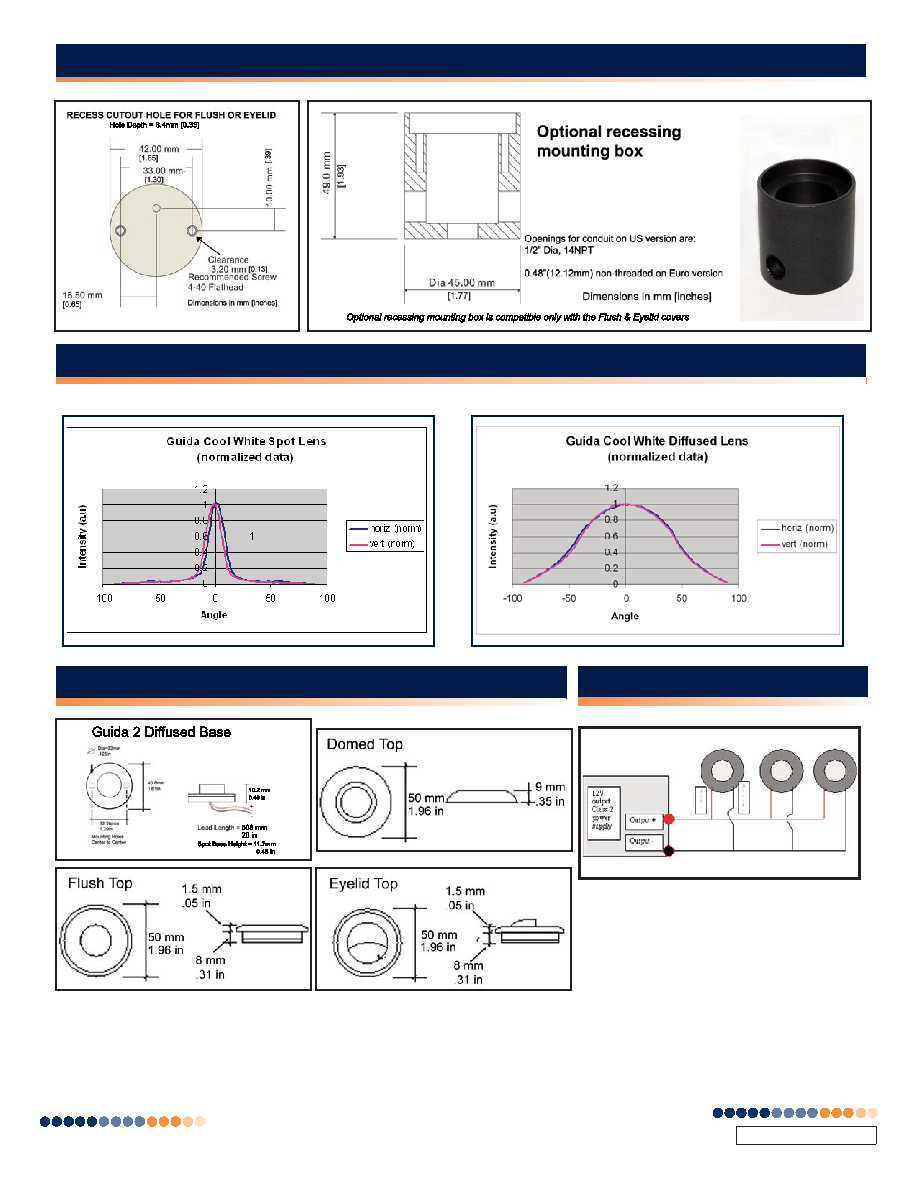

PHOTOMETRIC DATA

IES files available upon request

WIRING DIAGRAM

MECHANICAL DIMENSIONS

Dialight reserves the right to make changes at

any time in order to supply the best product

possible.

Eyelid top not compatible

with spot base optic
