EVALHVLED805
Electrical schematic
Doc ID 18457 Rev 1
7/9

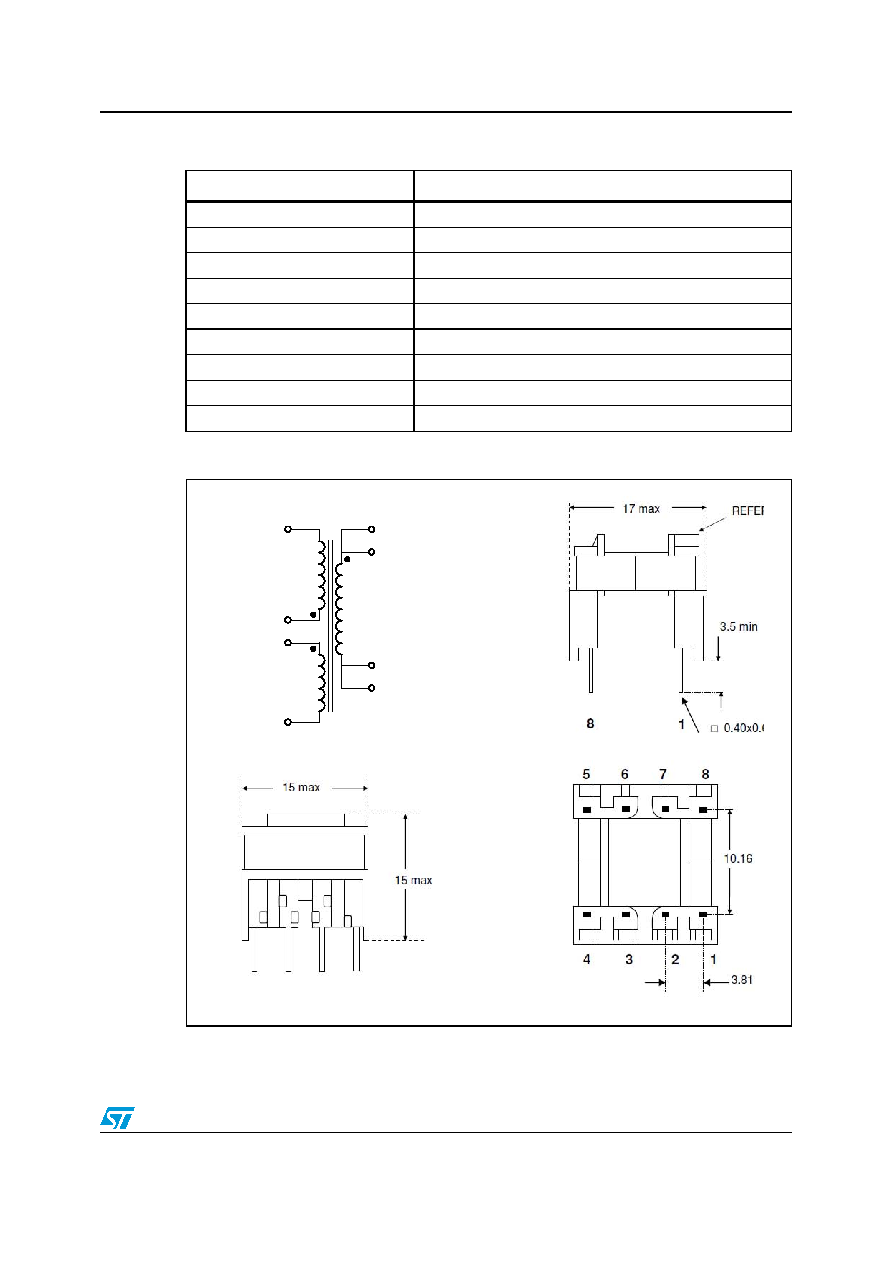

Figure 11.
Transformer electrical scheme and dimensions
Table 2.
Transformer characteristics
Manufacturer
Magnetica
Part number
1921.0013 Rev. 2
Core
E13 – N87 (or equivalent)
Primary inductance
2.6mH ± 15%
Air gap
˜ 70 µm
Leakage inductance
1.42% nom
Primary to secondary turn ratio
7.68 ± 5% (123 : 14)
Primary to auxiliary turn ratio
5.59 ± 5% (123 : 19)
Primary saturation current
0.21AP max (BSAT=0.35 T)
Insulation primary-secondary
4 kV
