MOSA
MS6853
Mono 1.9W / Stereo 300mW Power Amplifier
REV 6
8/14
www.mosanalog.com
FREQUENCY (Hz)
FREQUENCY (Hz)
FREQUENCY (Hz)

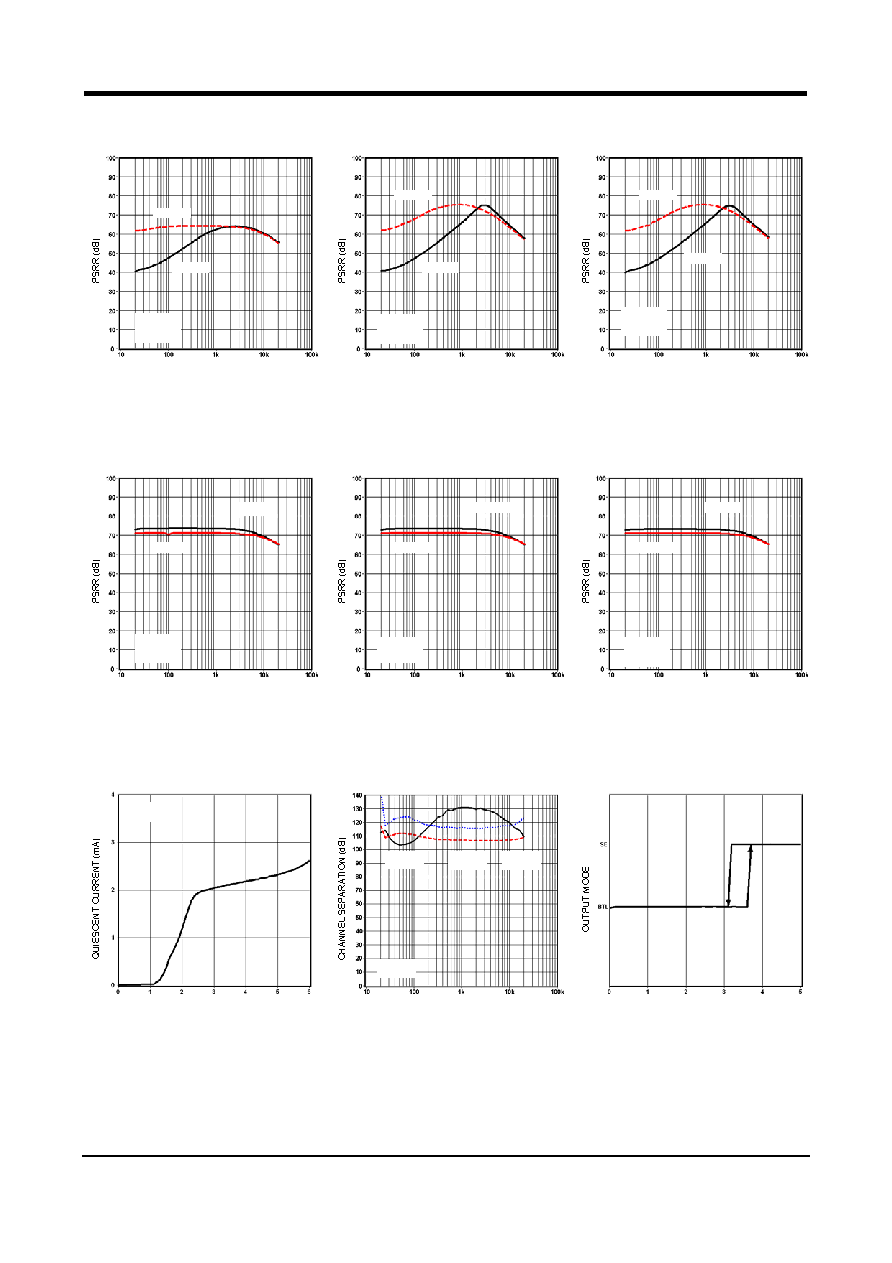

PSRR vs. frequency
PSRR vs. frequency
PSRR vs. frequency
CBP=10uF
CBP=10uF
CBP=10uF
CBP=1uF
CBP=1uF
CBP=1uF
VDD=2.7V
SE mode
RL=32Ω
VDD=5V
SE mode
RL=32Ω
VDD=3.3V
SE mode
RL=32Ω
FREQUENCY (Hz)
FREQUENCY (Hz)
FREQUENCY (Hz)
PSRR vs. frequency
PSRR vs. frequency
PSRR vs. frequency
CBP=1uF
CBP=1uF
CBP=1uF
CBP=10uF
CBP=10uF
CBP=10uF
VDD=2.7V
BTL mode
RL=8Ω
VDD=5V
BTL mode
RL=8Ω
VDD=3.3V
BTL mode
RL=8Ω
SUPPLY VOLTAGE (V)
FREQUENCY (Hz)
HP-IN VOLTAGE (V)
Quiescent current vs. supply voltage
Channel separation vs. frequency
Output mode vs. HP-IN voltage
VIN=0V
No load
VDD=5V
Po=90mW
VDD=3.3V
Po=40mW
VDD=2.7V
Po=25mW
SE mode
RL=32Ω
