상세설명	Echotel짰 Model 300/301 Ultrasonic Non-Contact Transmitter For Level, Volume, and Open Channel Flow

PDF	12 Pages

Scroll/Zoom	100%

제조업체	MAGNETROL [Magnetrol International, Inc.]

홈페이지	http://www.magnetrol.com

Logo

5 / 12 page

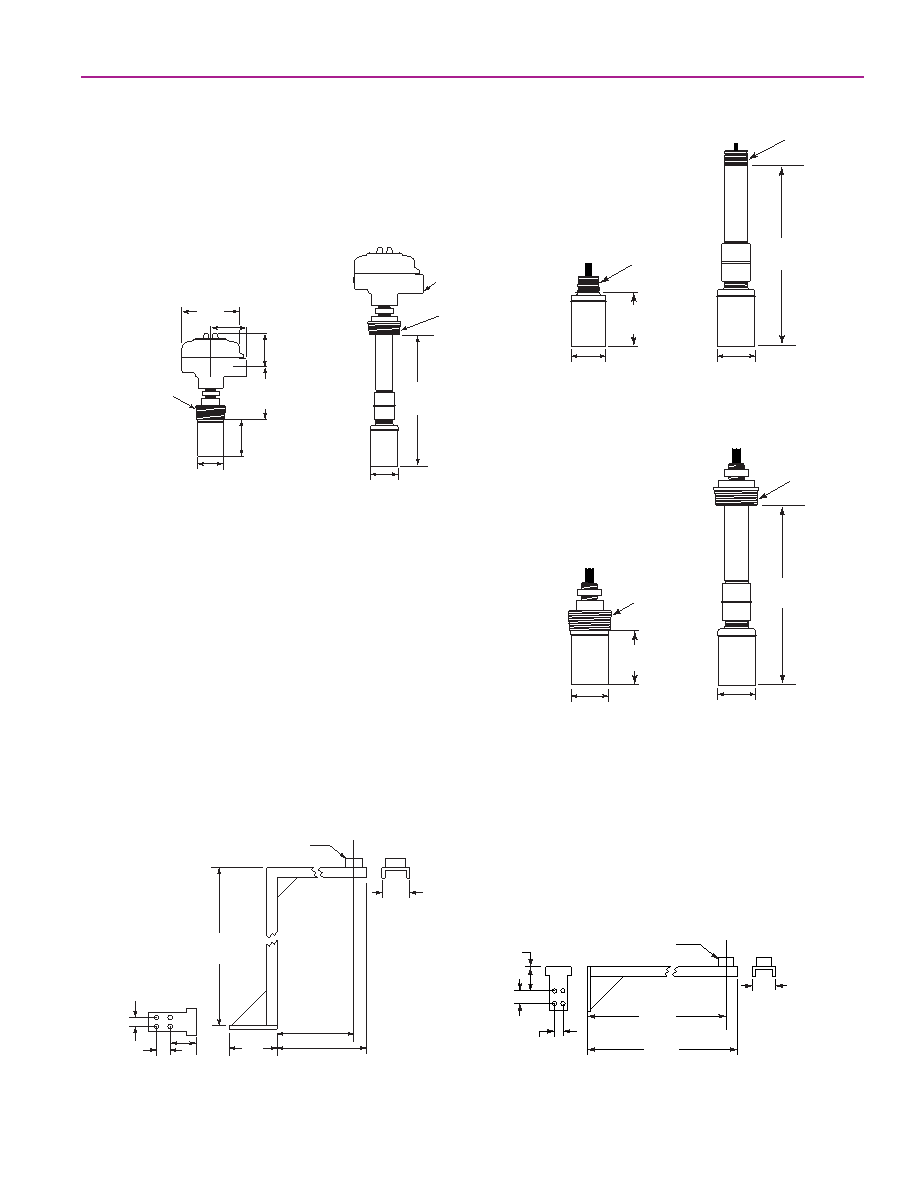

DIMENSIONAL

SPECIFICATIONS

INCHES

(MM)

2" NPT

Process Connection

3.00" (76)

Insertion Length

4.63 (118)

Dia.

3.00 (76)

2.75

(70)

4.50

(114)

2.12 (54)

Insertion Dia.

2" NPT

Process

Connection

3/4" NPT

10.00" (254)

Insertion Length

2.12 (54)

Insertion Dia.

3.00

(76)

29.00

(736)

1.50

(38)

3.12

(79)

6.12

(155)

20.50 (520)

22.50 (571)

2.00

(50)

2" Female NPT

(P/N 36-3813-001)

20.50

(520)

22.50

(571)

3.00

(76)

1.50

(38)

2.00

(50)

3.12

(79)

2" Female NPT

(P/N 36-3812-001)

Floor Mount Bracket

Wall Mount Bracket

OPTIONAL

MOUNTING

BRACKETS

MODEL

384

TRANSDUCERS

2" NPT

Process

Connection

3.00" (76)

Insertion Length

2" NPT

Process

Connection

10.00" (254)

Insertion Length

1" NPT

Process

Connection

3.00" (76)

Insertion Length

1" NPT

Process

Connection

10.00" (254)

Insertion Length

2.12 (54)

Insertion Dia.

2.12 (54)

Insertion Dia.

2.12 (54)

Insertion Dia.

2.12 (54)

Insertion Dia.

2" NPT Transducer with Housing

1" NPT Transducer without Housing

2" NPT Transducer without Housing
