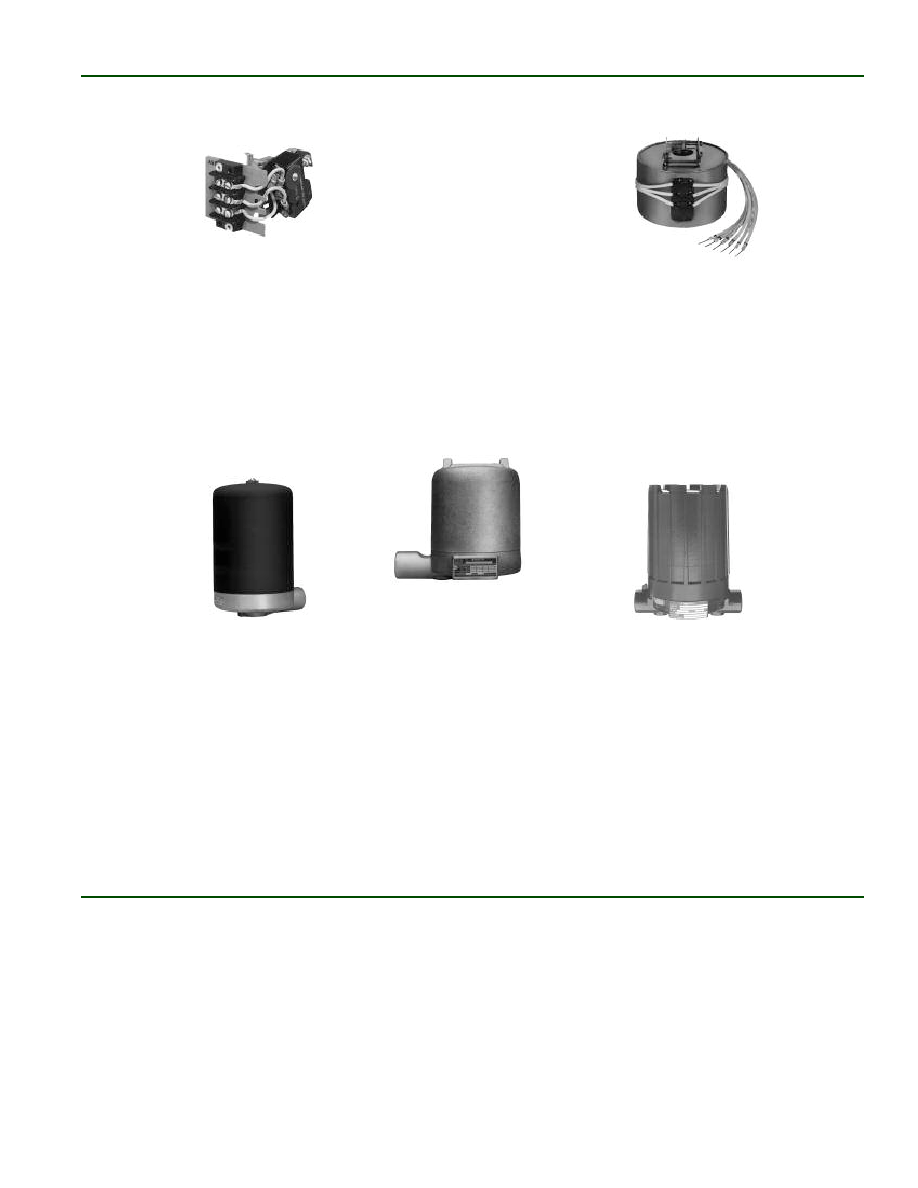

SERIES C, D, R & S DRY CONTACT SWITCHES

• Designed for AC and DC current applications

• Process temperatures to +1000° F (+538° C)

S P E C I F I C A T I O N S

S W I T C H

M E C H A N I S M S

A N D

E N C L O S U R E S

TYPE 4X/7/9 Cast Iron Enclosure

TYPE 4X Carbon Steel Enclosure

TYPE 4X/7/9 Aluminum Enclosure

A S M E

B 3 1 . 1

C O N S T R U C T I O N

PRODUCT DESIGN

Pressure vessels are designed within code specified

stress limits. Design calculations, design prints and weld

qualifications are available for audit. All chamber branch

and circumferential weld joints are designed to achieve

FULL penetration.

WELDING

All welding is performed by qualified welders and per

procedures required by the ASME Boiler Pressure Vessel

Code Sec. IX. Welds are visually inspected for FULL

penetration. All other non-destructive examination is

performed per ANSI B31.1.

MATERIALS OF CONSTRUCTION

All pressure-retaining materials are procured with

Certificates of Conformance to assure compliance of

components with required standards.

HYDROSTATIC TEST

All chambers are hydrostatically tested at 1.5 times the

design pressure.

SWITCH ENCLOSURE

• TYPE 4X blue polymer coated carbon steel, weather

resistant for non-hazardous areas

• TYPE 4X/7/9 blue polymer coated aluminum and

cast iron enclosures

• Designed to meet Class I, Div. 1 Groups C & D and

Class I, Div. 1 Group B

SERIES F, HS, 8 & 9 HERMETICALLY SEALED SWITCHES

• Ideal for use in salt and other corrosive atmospheres

• Positively pressurized capsule for entire mechanism

and contacts

• Process temperatures to +1000° F (+538° C)
