ADL5565

Rev. 0 | Page 10 of 28

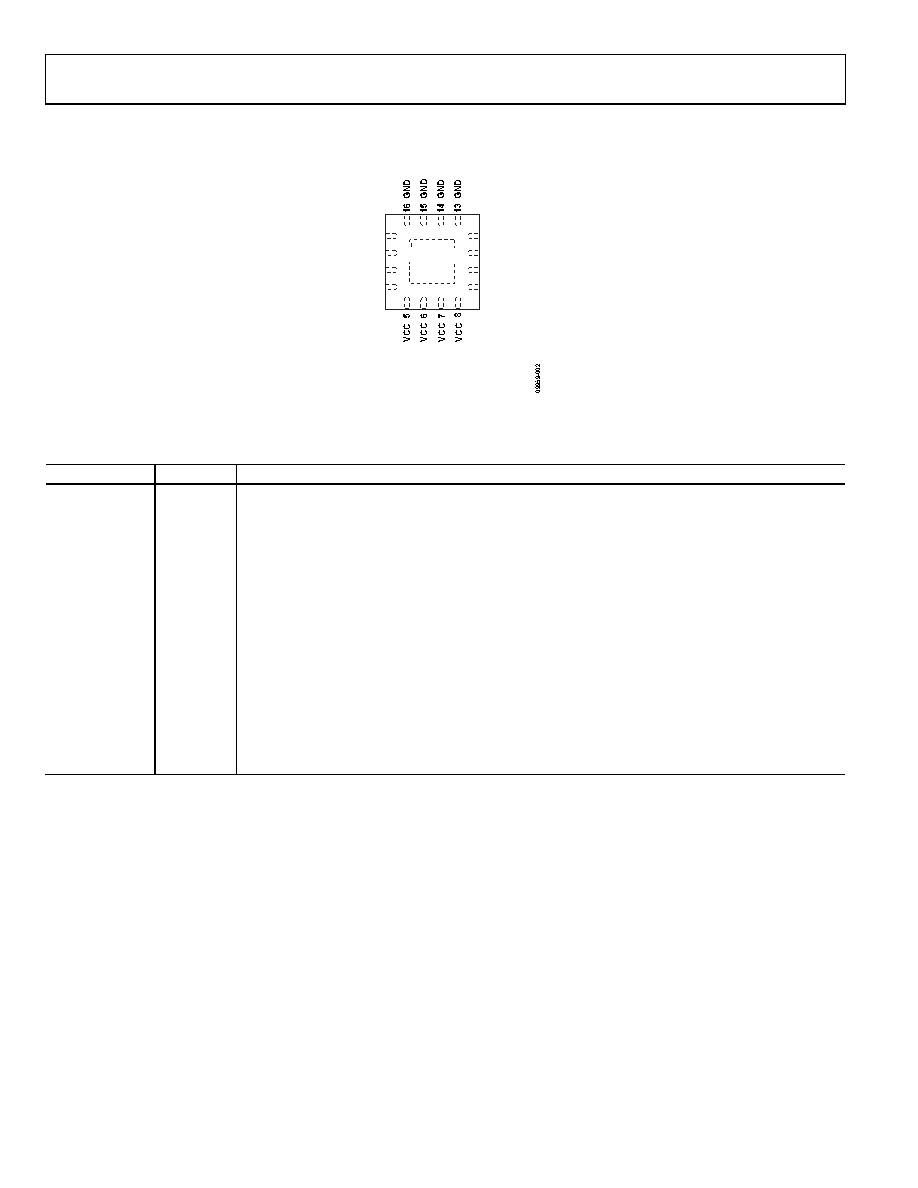

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

VIP2

VIP1

VIN1

VIN2

VOP

ENBL

VON

VCOM

NOTES

1. EXPOSED PADDLE IS INTERNALLY

CONNECT TO GND AND MUST BE

SOLDERED TO A LOW IMPEDANCE

GROUND PLANE.

TOP

VIEW

ADL5565

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

VIP2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIP1 for AV = 15.5 dB.

VIP1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIP2 for AV = 15.5 dB.

VIN1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIN2 for AV = 15.5 dB.

VIN2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIN1 for AV = 15.5 dB.

5, 6, 7, 8

VCC

Positive Supply.

VCOM

Common-Mode Voltage. A voltage applied to this pin sets the common-mode voltage of the input and

output. Typically decoupled to ground with a 0.1 μF capacitor. With no reference applied, input and

output common mode floats to midsupply (VCC/2).

VON

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

VOP

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

ENBL

Enable. Apply positive voltage (1.3 V < ENBL < VCC) to activate device.

13, 14, 15, 16,

Exposed Paddle

GND

Ground. Exposed paddle is internally connected to GND and must be soldered to a low impedance

ground plane.
