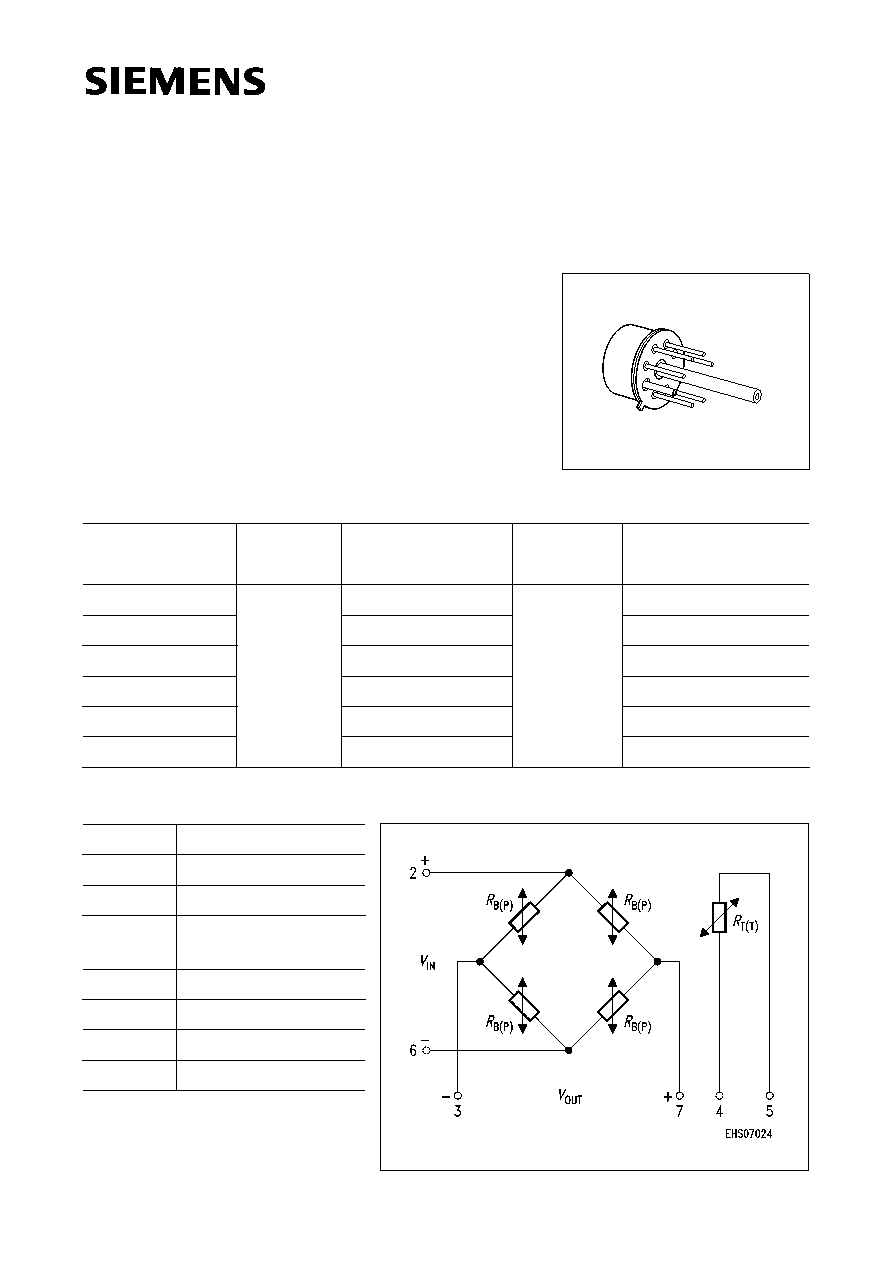

TO-8-4

Semiconductor Group

1

02.97

Silicon Piezoresistive

Relative Pressure Sensor

KPY 41-R

KPY 46-R

Features

• Low pressure and temperature hysteresis

• Fast response

• High sensitivity and linearity

• Fatigue free monocrystaline silicon diaphragm

giving high load cycle stability

• High long term stability

• Pressure coupled to rearside of silicon diaphragm

• Built in silicon temperature sensor

Type and

Marking

Symbol

Pressure Range

Unit

Ordering Code

KPY 41 R

P

0 … PN

0

… 0.25

bar

Q62705-K159

KPY 42 R

0

… 0.6

Q62705-K160

KPY 43 R

0

… 1.6

Q62705-K161

KPY 44 R

0

… 4

Q62705-K163

KPY 45 R

0

… 10

Q62705-K165

KPY 46 R

0

… 25

Q62705-K167

Pin Configuration

1

Capillary tube

2+

V

IN

3

− V

OUT

4

Temperature sensor

(typ.

R

25 = 2 kΩ)

5

Temperature sensor

6

− V

IN

7+

V

OUT

8

Not connected
