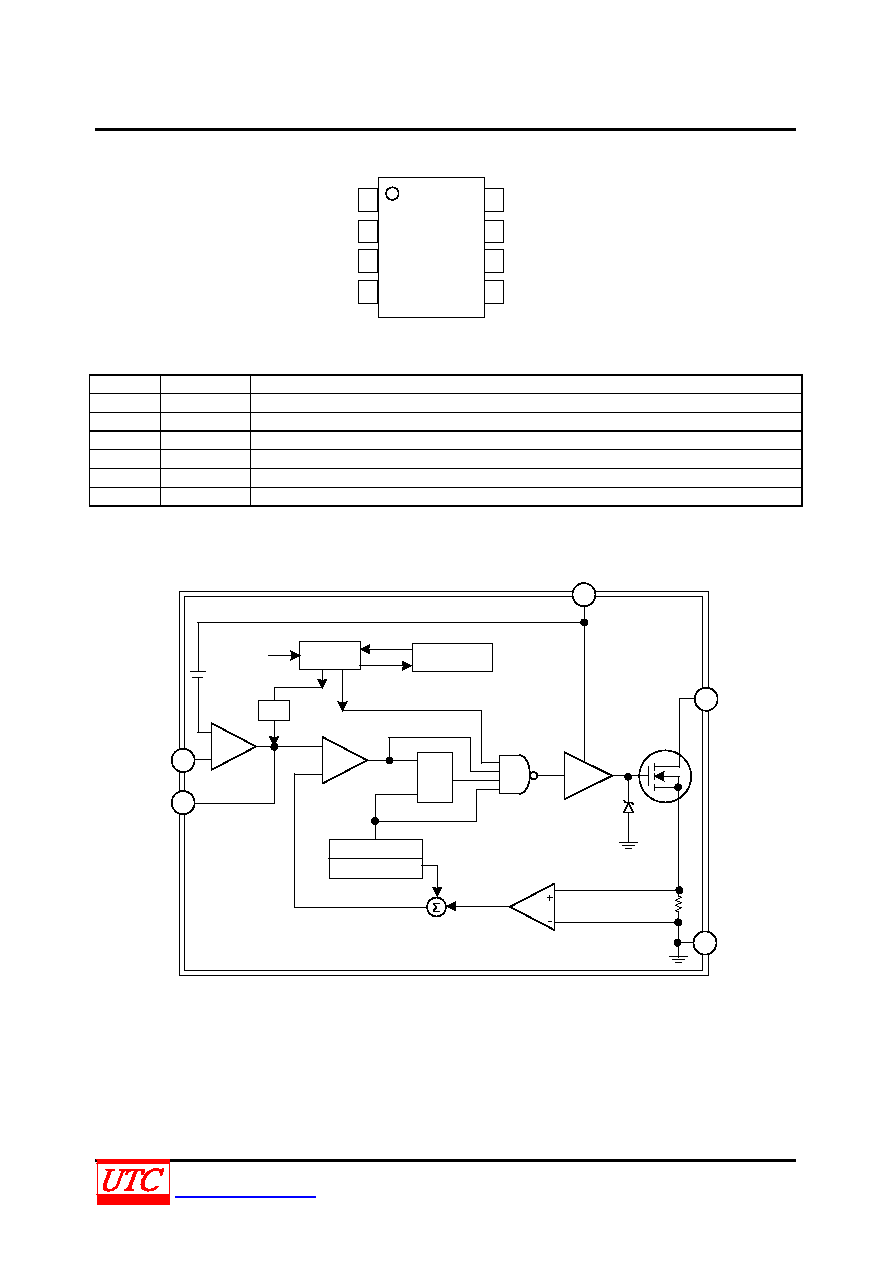

background image
L3010
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R125-024.a
PIN CONFIGURATION
1
2
3
4
8
7
6
5
SW
GND
SENSE
VIN
NC
NC
NC
COMP
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
SW
Power Switch output.
2
GND
Ground.
3
SENSE
Current sense pin.
4
VIN
Input supply voltage.
5
COMP
Compensation pin, connects to external capacitor.
6~8
NC
No Connected.
BLOCK DIAGRAM
4
VIN
2 GND
1 SW
Driver
NMOS
Reference
S
Q
R
Rsense
Current Sense
+ +
+
-
UVLO
280KHz
Slope COMP
OTP
SS
+
-
COMP 5
SNESE 3
EA
PWM
88mV
