62783
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R113-009.C

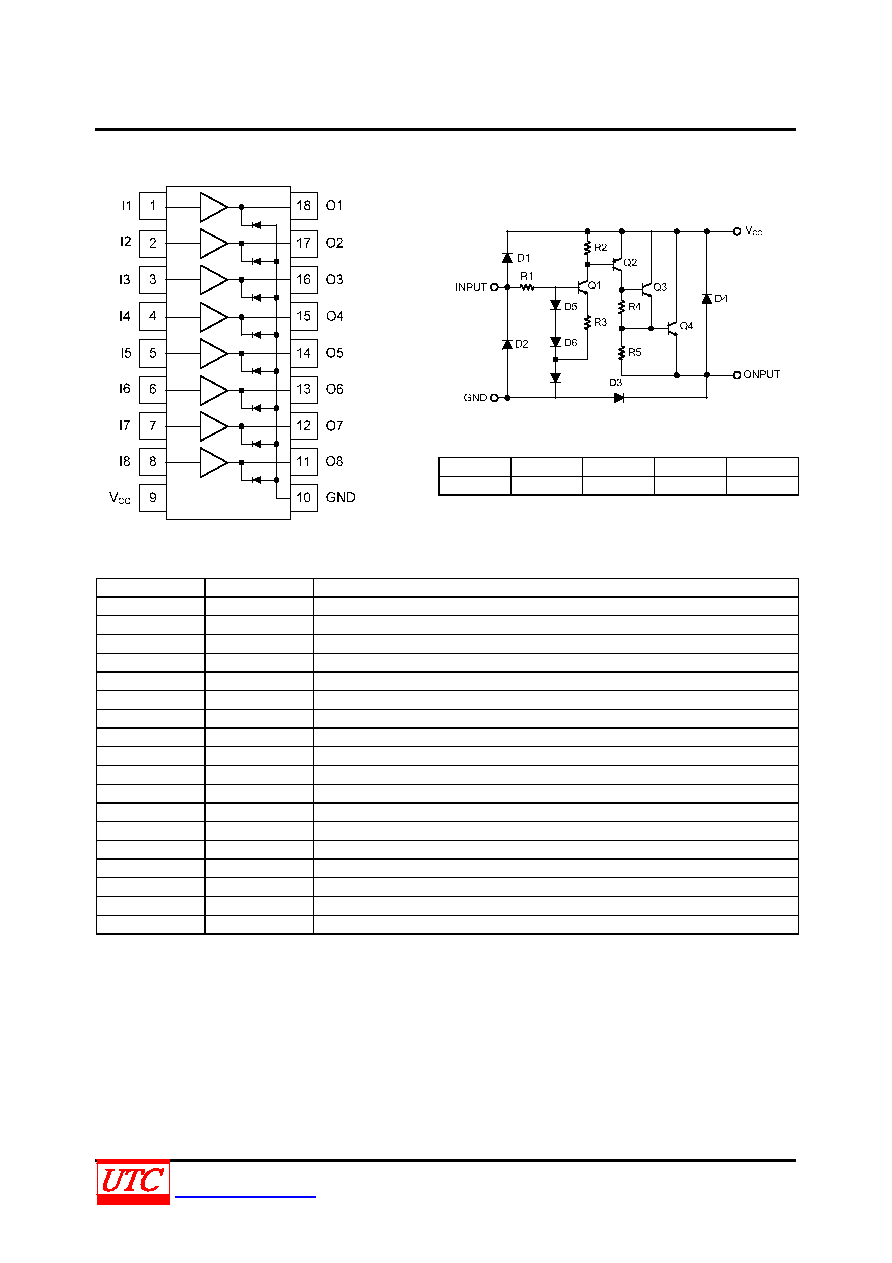

PIN CONFIGURATION
SCHEMATICS(EACH DRIVER)
R1
R2
R3
R4
R5
10kΩ
20kΩ
2.6kΩ
10kΩ
5kΩ
Note: The input and output parasitic diodes cannot be
used as clamp diodes
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
I1
Input Of CH1
2
I2
Input Of CH2
3
I3
Input Of CH3
4
I4
Input Of CH4
5
I5
Input Of CH5
6
I6
Input Of CH6
7
I7
Input Of CH7
8
I8
Input Of CH8
9
VCC
Power Supply
10
GND
Ground
11
O8
Output Of CH8
12
O7
Output Of CH7
13
O6
Output Of CH6
14
O5
Output Of CH5
15
O4
Output Of CH4
16
O3
Output Of CH3
17
O2
Output Of CH2
18
O1
Output Of CH1
