UT45N03L-TM3-R 데이터시트(PDF) 3 Page - Unisonic Technologies

부품명 UT45N03L-TM3-R
상세설명  40A, 25V N-CHANNEL POWER MOSFET
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  UTC [Unisonic Technologies]
홈페이지  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

UT45N03L-TM3-R 데이터시트(HTML) 3 Page - Unisonic Technologies

  UT45N03L-TM3-R Datasheet HTML 1Page - Unisonic Technologies UT45N03L-TM3-R Datasheet HTML 2Page - Unisonic Technologies UT45N03L-TM3-R Datasheet HTML 3Page - Unisonic Technologies UT45N03L-TM3-R Datasheet HTML 4Page - Unisonic Technologies UT45N03L-TM3-R Datasheet HTML 5Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 3 / 5 page
background image
UT45N03
Power MOSFET
UNISONICTECHNOLOGIESCO.,LTD
3 of 5
www.unisonic.com.tw
QW-R502-165.C

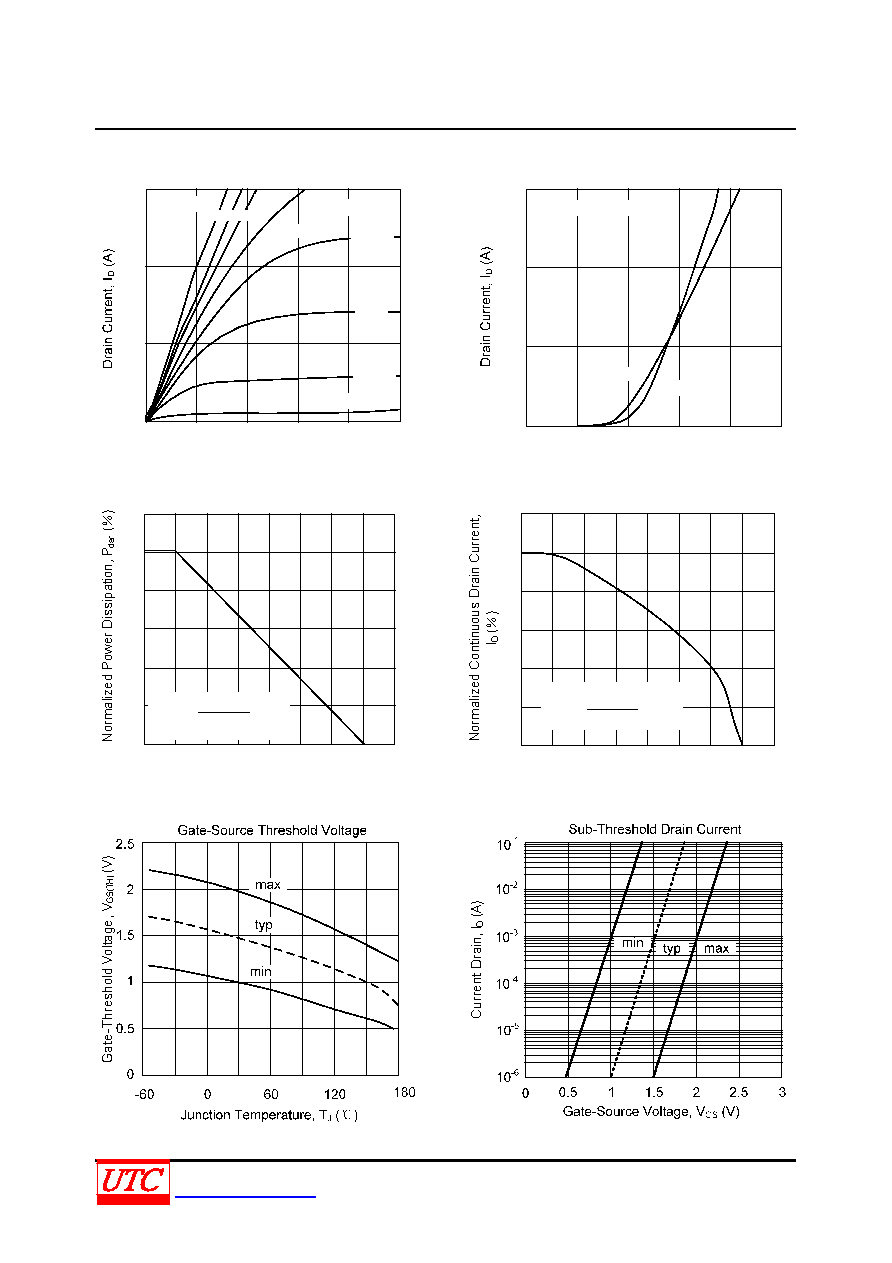

TYPICAL CHARACTERISTICS
175℃
TJ=25℃
VDS>ID×RDS(ON)
45
30
15
0
02
1
34
5
Gate-Source Voltage, VGS (V)
Transfer Characteristics
Output Characteristics
VGS=2V
2.5V
3V
3.5V
TJ=25℃
4V
5V
6V
10V
45
30
15
0
0
0.4
0.8
1.2
1.6
2
Drain-Source Voltage, VDS (V)
120
80
40
0
0
50
100
150
200
Normalized Continuous Drain Current
120
80
40
0
0
50
100
150
200
Normalized Total Power Dissipation
Temperature, TC (℃)
Temperature, TC (℃)
Pder=
PD
PD(25°C)
×100%
Ider=
ID
ID(25°C)
×100%
