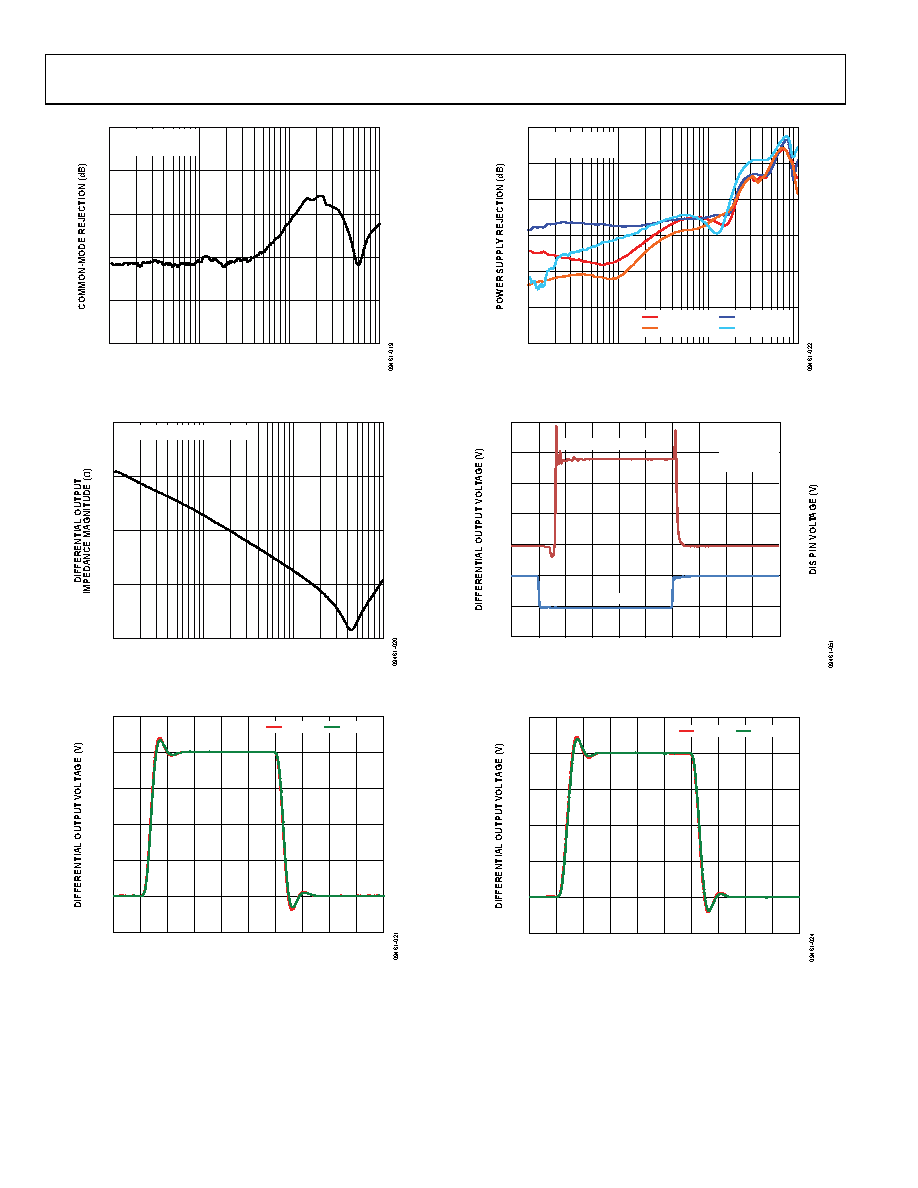

AD8141/AD8142
Rev. 0 | Page 10 of 24
–20
–30
–40
–50
–60
–70
1
10
100
1k
FREQUENCY (MHz)
∆VOUT, dm/∆VIN, cm
∆VIN, cm = 1V p-p
Figure 18. Common-Mode Rejection vs. Frequency
100k
10k
1k
100
10
1
10
100
1k
FREQUENCY (MHz)
DIRECTLY AT DRIVER OUTPUT
Figure 19. Disabled Output Impedance Magnitude vs. Frequency
0.15
0.10
0.05
0
–0.05
–0.10
–0.15
0
5
10
15
20
25
30
35
40
45
50
TIME (ns)
AD8141
AD8142
Figure 20. Small Signal Transient Response
–30
–40
–50
–60
–70
–80
–90
1
10
100
1k
FREQUENCY (MHz)
±2.5V SUPPLIES
∆SUPPLY = ±0.5V
AD8141 VS+
AD8141 VS–
AD8142 VS+
AD8142 VS–
Figure 21. Power Supply Rejection vs. Frequency
–5
0
5
10
15
20
25
30
–1.5
–1.0
–0.5
0
0.5
1.0
1.5
2.0
0
40
80
120
160
200
240
280
320
360
400
TIME (ns)
VS+ = +2.5V
VS– = –2.5V
VIN = 0.7VDC
VOCM = GND
DIS PIN
DIFFERENTIAL OUTPUT
Figure 22. Disable Response Time
1.5
1.0
0.5
0
–0.5
–1.0
–1.5
0
5
10
15
20
25
30
35
40
45
50
TIME (ns)
AD8141
AD8142
Figure 23. Large Signal Transient Response
