ADP1853
Data Sheet
Rev. 0 | Page 26 of 28

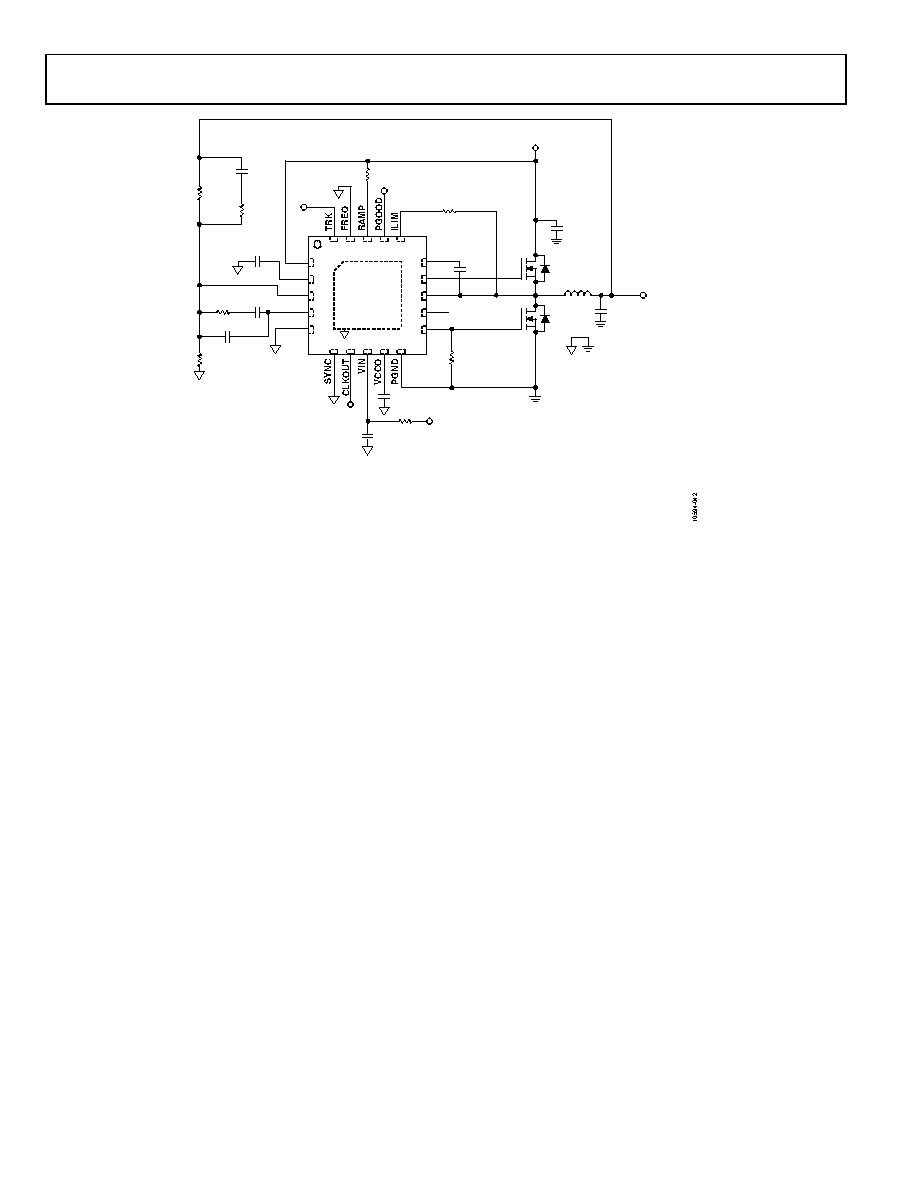

Figure 36. 25 A Circuit Operating in Voltage Mode
M2
M1
VIN = 9V TO 15V
L
100kΩ
1
2
3
4
5
6
7
8
9
10
17
18
19
20
12
13
14
15
AGND
DL
CS
SW
DH
EN
ADP1853
16
11
BST
SS
COMP
FB
CIN
COUT
EP
TO VIN
TO
VCCO
1µF
2Ω
1µF
32.4kΩ
21.5kΩ
75pF
1600pF
0.1µF
0.1µF
fSW = 300kHz
CIN: OS-CON 150µF/20V, 20SEP150M, SANYO + CAP CER 10µF 25V X7R 1210, MURATA GRM32DR71E106KA12
L: 1µH COILCRAFT SER1412-102ME
M1: INFINEON BSC052N03LS
M2: INFINEON BSC0902NS
COUT: POSCAP 330µF/6.3V SANYO 6TPE330MFL + CAP CER 22µF 10V X5R 1210 MURATA GRM32ER61A226KE20L
7.15kΩ
2.74kΩ
VOUT
3.3V
25A
196kΩ
2kΩ
510pF
