A-USBPA-3-R datasheet(1/1 Pages) ASSMANN

부품명	A-USBPA-3-R

상세설명	USB Assembly Type 3.0, 9 Pin A/M

PDF	1 Pages

Scroll/Zoom	100%

제조업체	ASSMANN [Assmann Electronics Inc.]

홈페이지	http://www.assmann.us

Logo

1 / 1 page

Material:

• Housing: PBT+30% G.F. UL 94v-0

• Contact 5P: Phosphor Bronze

• Contact 4P: Brass

• Shell: SPCC

• Plating Contact: Gold Flash & Tin over

Nickel Plated

• Plating Shell: Nickel Plated over All

Electrical:

• Current Rating: 1.0A @ 30V AC Min.

• Withstanding Voltage: 500V AC for 1 Min.

• Mating Force: 3.57KgF Max.

• Unmating Force: 1.02KgF Min.

1

2

3

4

5

6

7

1

2

3

4

5

6

7

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

Item No.

Drawing No.

Title

Name

Chappell

Drawn

10.19.11

Approved

Modification

Date

Name

Scale

TOLERANCE

1:1

X.X

X.XX

X.XXX

Angle

±0.40

±0.25

±0.15

±3°

Replace

Sheet

A-USBPA-3-R

Complaint

RoHS

rev00

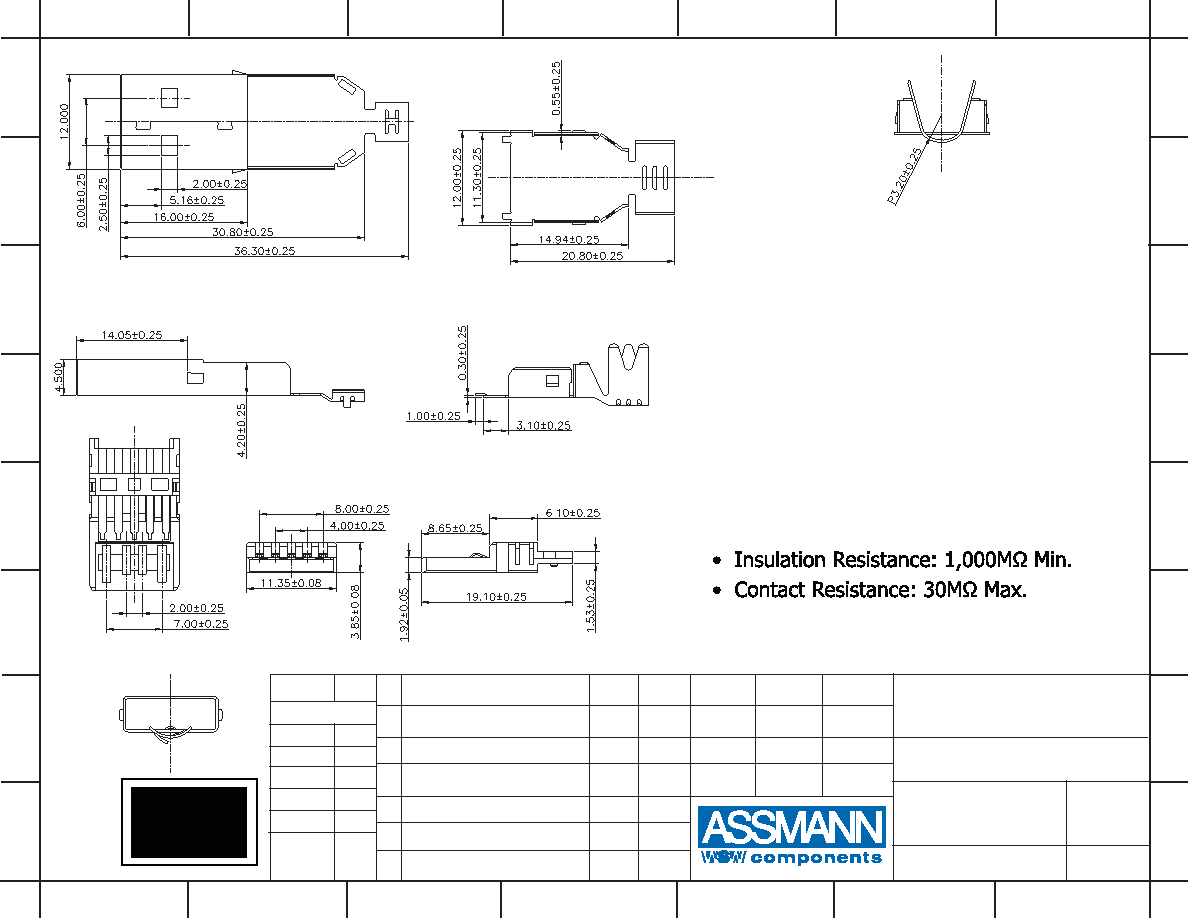

USB Assembly Type 3.0, 9 Pin A/M, 15”,

Solder Type
