A-USBPB-R datasheet(1/1 Pages) ASSMANN

부품명	A-USBPB-R

상세설명	USB, Type B, Assembly-Type, VERSION 1.1

PDF	1 Pages

Scroll/Zoom	100%

제조업체	ASSMANN [Assmann Electronics Inc.]

홈페이지	http://www.assmann.us

Logo

1 / 1 page

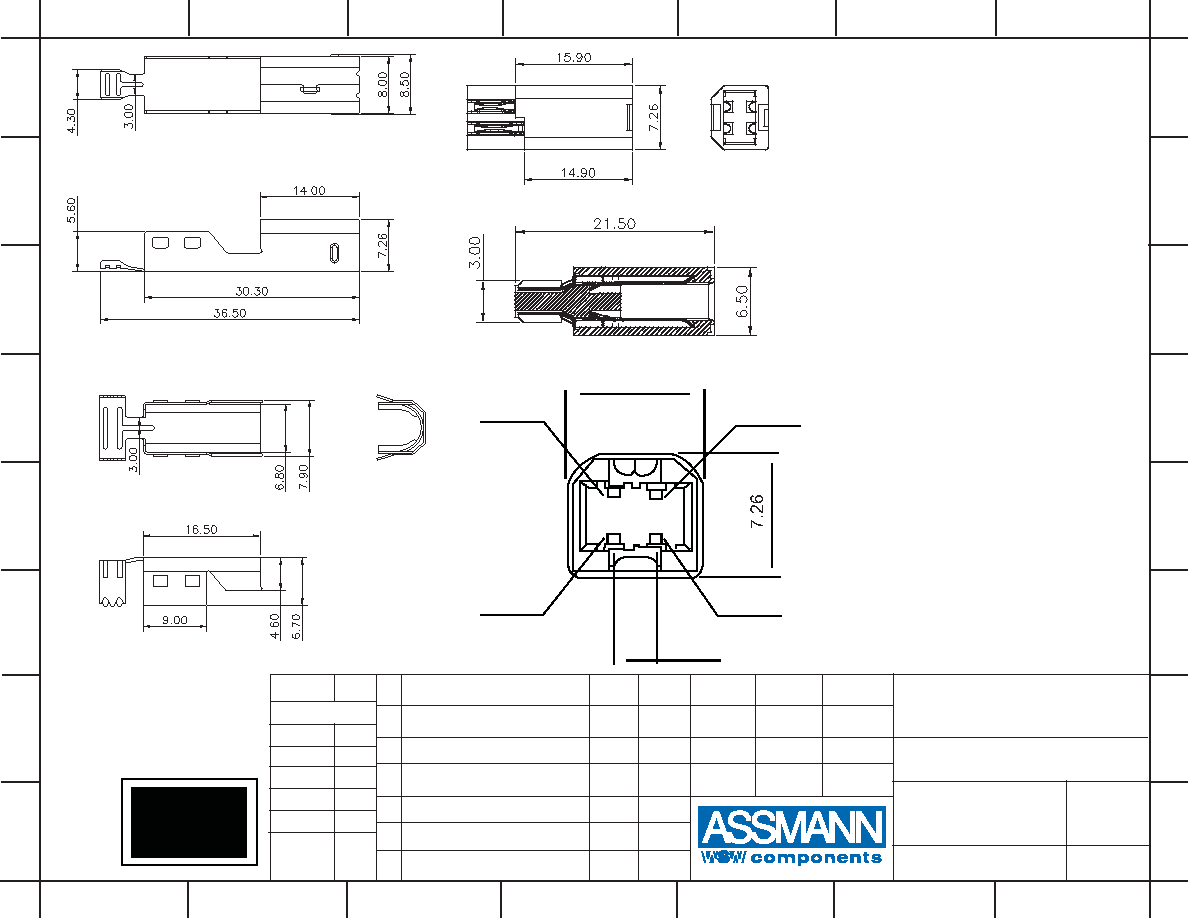

Posn. 1

8.0

Posn. 2

Posn. 3

Posn. 4

2.50 Ref

Unit: MM±0.15MM

Material:

• Housing: PBT+30%GF UL 94V-0

• Contact: Brass

• Shell: SPCC

• Contact: 5 Gold Contact Plating

over Nickel Plated

• Shell: Nickel Over All Plating

Electrical:

• Voltage Rating: 30V

• Current Rating: 1.5A

• Contact Resistance Terminal: 30M Max

• Dielectric Withstanding Voltage: 500V AC

• Insulation Resistance: 1000M Min

Mechanical:

• Mating: 35N Max

• Withdrawl Force: 10N Min

• Durability: 1500 Cycles Min

Environmental:

• Temperature Range: -20°~+85°C

1

2

3

4

5

6

7

1

2

3

4

5

6

7

A

B

C

D

E

F

G

H

A

B

C

D

E

F

G

H

Item No.

Drawing No.

Title

Name

Chappell

Drawn

10.19.11

Approved

Modification

Date

Name

Scale

TOLERANCE

1:1

X.X

X.XX

X.XXX

Angle

±0.40

±0.25

±0.15

±3°

Replace

Sheet

A-USBPB-R

USB, Type B, Assembly-Type,

Version 1.1

Complaint

RoHS

rev00
