SP9600DS/04
SP9600 12-Bit, Low Power Voltage Output D/A Converter
© Copyright 2000 Sipex Corporation
6

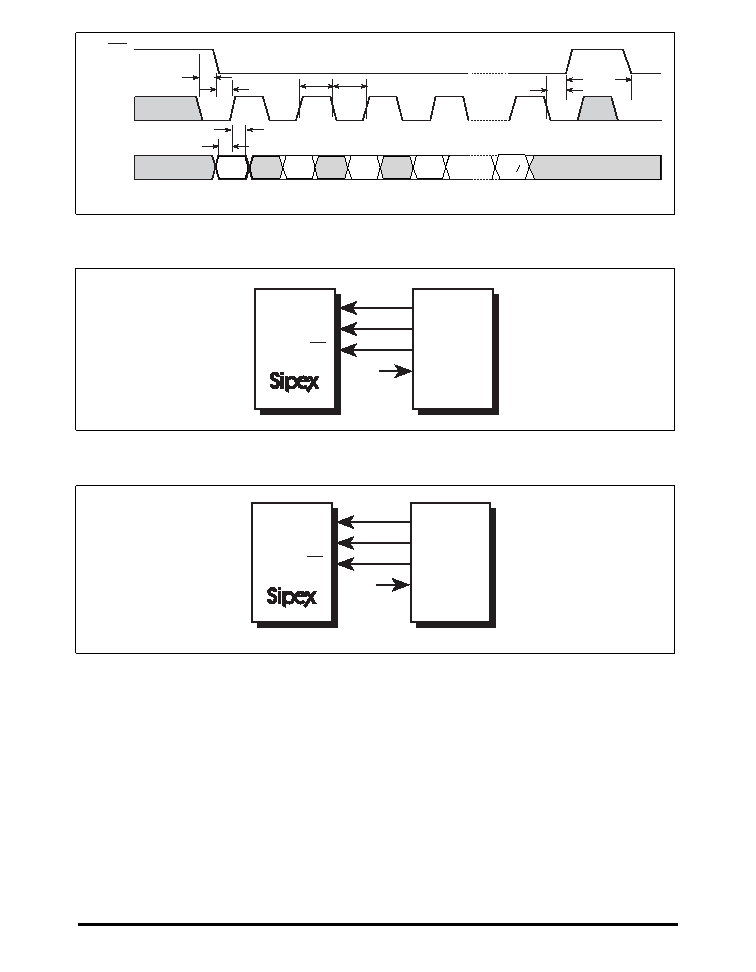

Figure 3. Timing Diagram
tCSW
tCSH1
tCSS
tCL
tCH
tCSHO
tDS
tDH
CS
SCLK
DIN
DB11
DB10
DB9
DB8
DB0
SCLK
DIN
CS
SK
SO
I/O
SI
N/C
SP9600
MICROWIRE
PORT
Figure 4. Microwire Connection
SCLK
DIN
CS
SK
MOSI
I/O
MISO
N/C
SP9600
SPI
PORT
CPOL = 0, CPHA = 0
Figure 5. SPI Connection
