SL74HC161
System Logic
Semiconductor
SLS

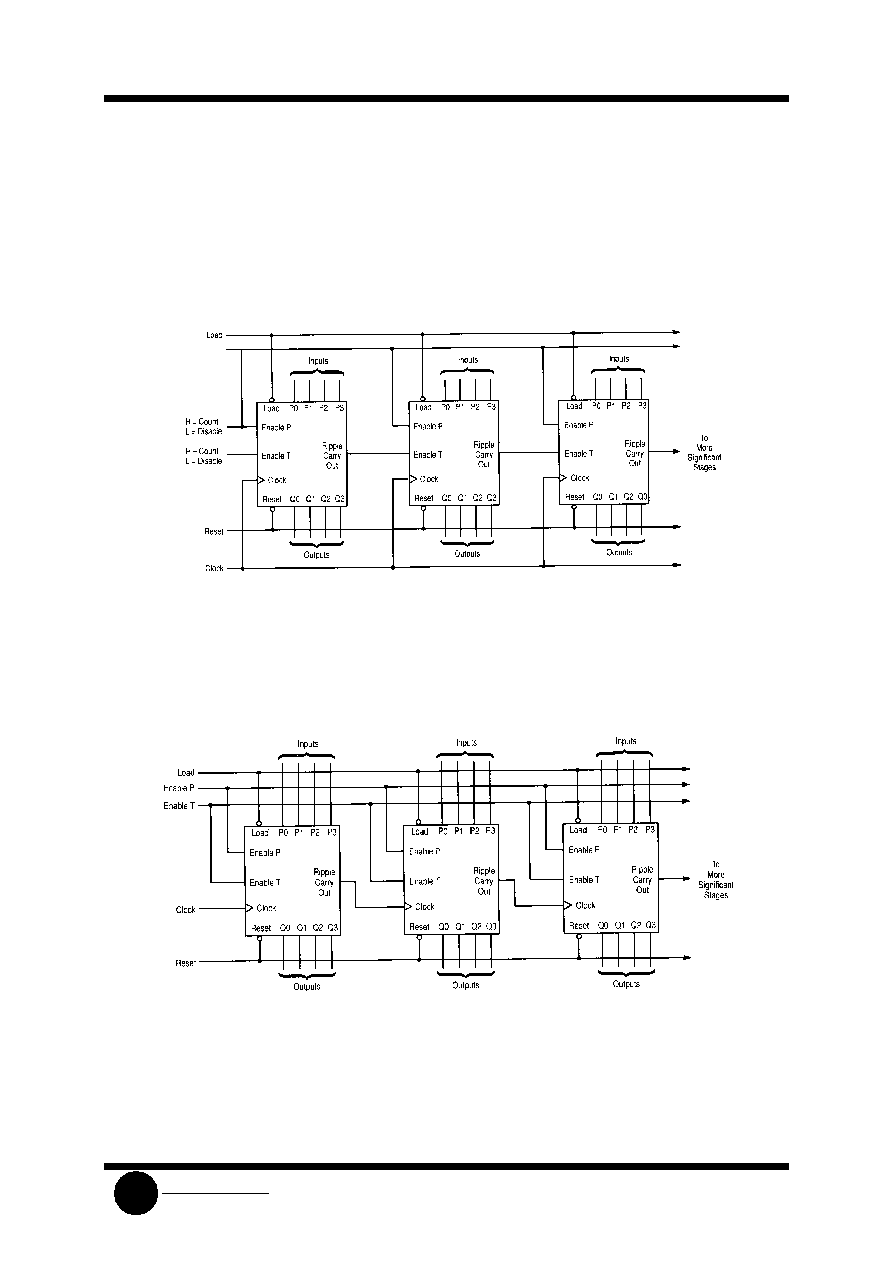

TYPICAL APPLICATIONS CASCADING
Note:When used in these cascaded configurations the clock fmax guaranteed limits may not apply.
Actual performance will depend on number of stages. This limitation is due to set up times
between Enable (Port) and clock.
Figure 9. N-Bit Synchronous Counters
Figure 10. Nibble Ripple Counter
