42 / 45 page

Phihong USA Corporation • 47800 Fremont Blvd. Fremont, CA 94538 • Tel: 1.510.445.0100 Fax: 1.510.445.1678

www.phihong.com or www.midspans.com

-42-

5.2.

Updating EEPROM Contents with POEB-x.x.bin

After the POEA-x.x.bin update is complete, the web/SNMP interface image POEB-x.x.bin needs to be

uploaded into the internal EEPROM. There are two methods to updating the POEB-x.x.bin.

Method One:

In the address bar of your internet browser, enter http://hostname/upload, where hostname is the

string corresponding to the Midspan IP address. Then use the Browse... button (see Fig.5.3 Upload in

Internet Explorer) to locate the ﬁle POEB-x.x.bin, then click the Upload button.

If the EEPROM is successfully updated, <Software Update Successful > will be displayed in a new

window. Click on Site main page to open the main controller.

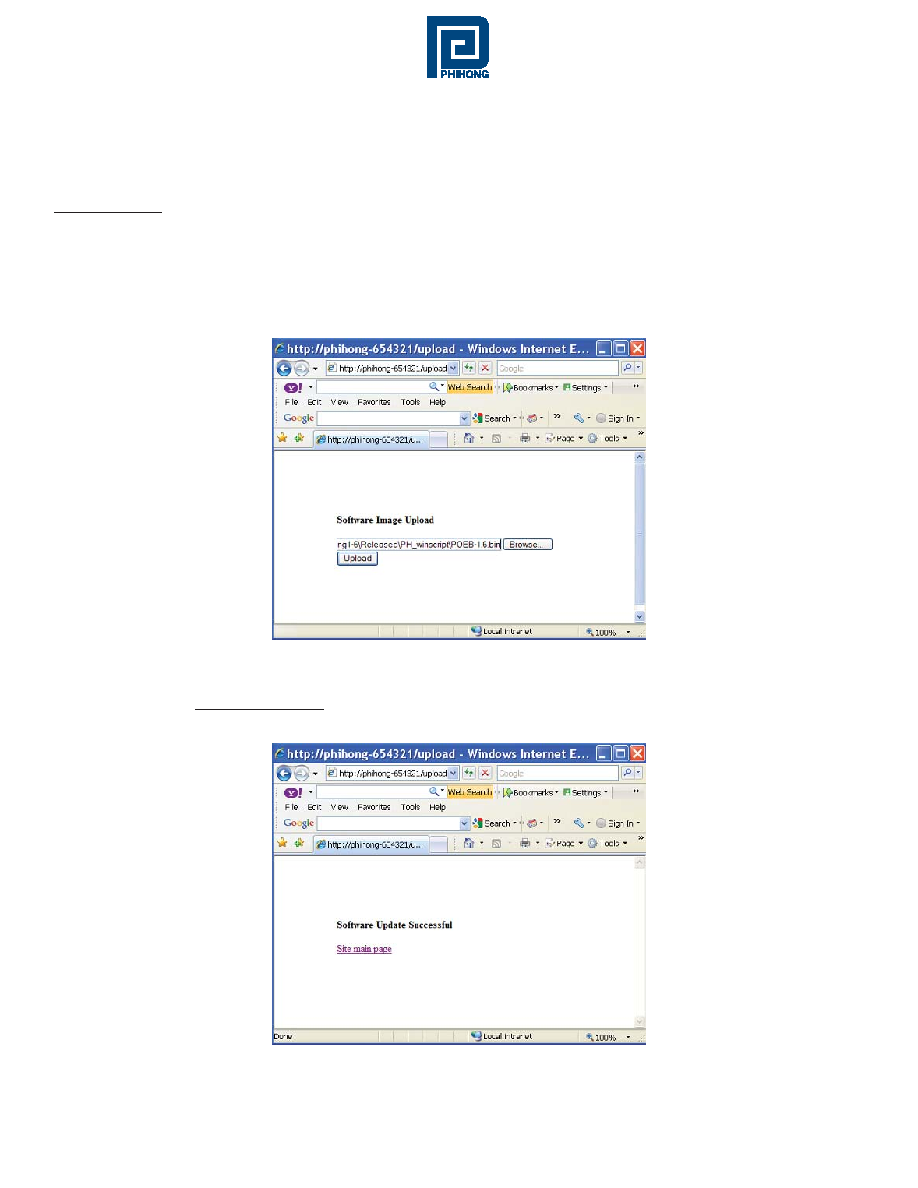

Figure 34: Upload in Internet Explorer

Figure 35: Software Update Successful Window
