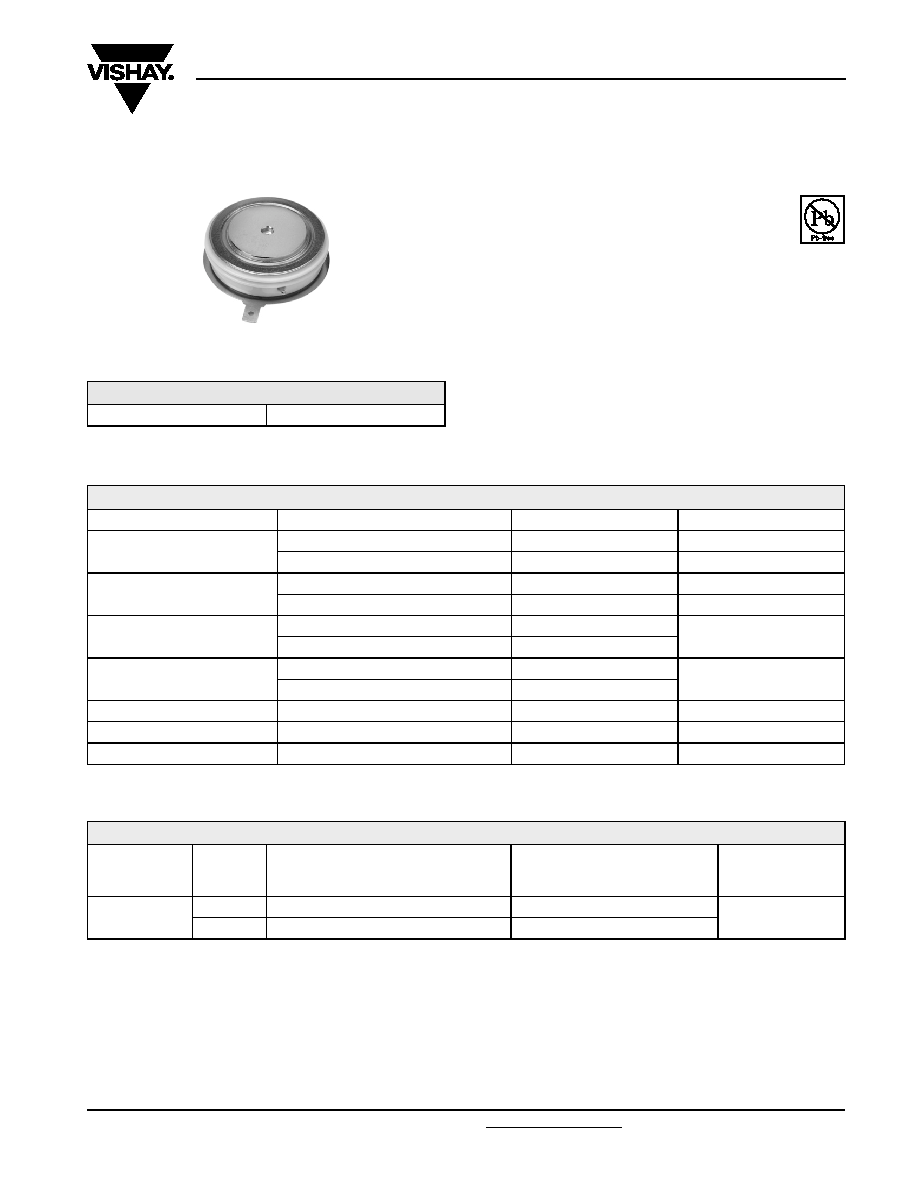

Phase Control Thyristors

(Hockey PUK Version), 960 A

ST380CPbF Series

Vishay High Power Products

FEATURES

• Center amplifying gate

• Metal case with ceramic insulator

• International standard case TO-200AB (E-PUK)

• Low

profile

hockey

PUK

to

increase

current-carrying capability

• Lead (Pb)-free

• Designed and qualified for industrial level

TYPICAL APPLICATIONS

• DC motor controls

• Controlled DC power supplies

• AC controllers

ELECTRICAL SPECIFICATIONS

PRODUCT SUMMARY

IT(AV)

960 A

TO-200AB (E-PUK)

RoHS

COMPLIANT

MAJOR RATINGS AND CHARACTERISTICS

PARAMETER

TEST CONDITIONS

VALUES

UNITS

IT(AV)

960

A

Ths

55

°C

IT(RMS)

1900

A

Ths

25

°C

ITSM

50 Hz

15 000

A

60 Hz

15 700

I2t

50 Hz

1130

kA2s

60 Hz

1030

VDRM/VRRM

400/600

V

tq

Typical

100

µs

TJ

- 40 to 125

°C

VOLTAGE RATINGS

TYPE NUMBER

VOLTAGE

CODE

VDRM/VRRM, MAXIMUM REPETITIVE PEAK

AND OFF-STATE VOLTAGE

V

VRSM, MAXIMUM

NON-REPETITIVE PEAK VOLTAGE

V

IDRM/IRRM MAXIMUM

AT TJ = TJ MAXIMUM

mA

ST380C..C

04

400

500

50

06

600

700
