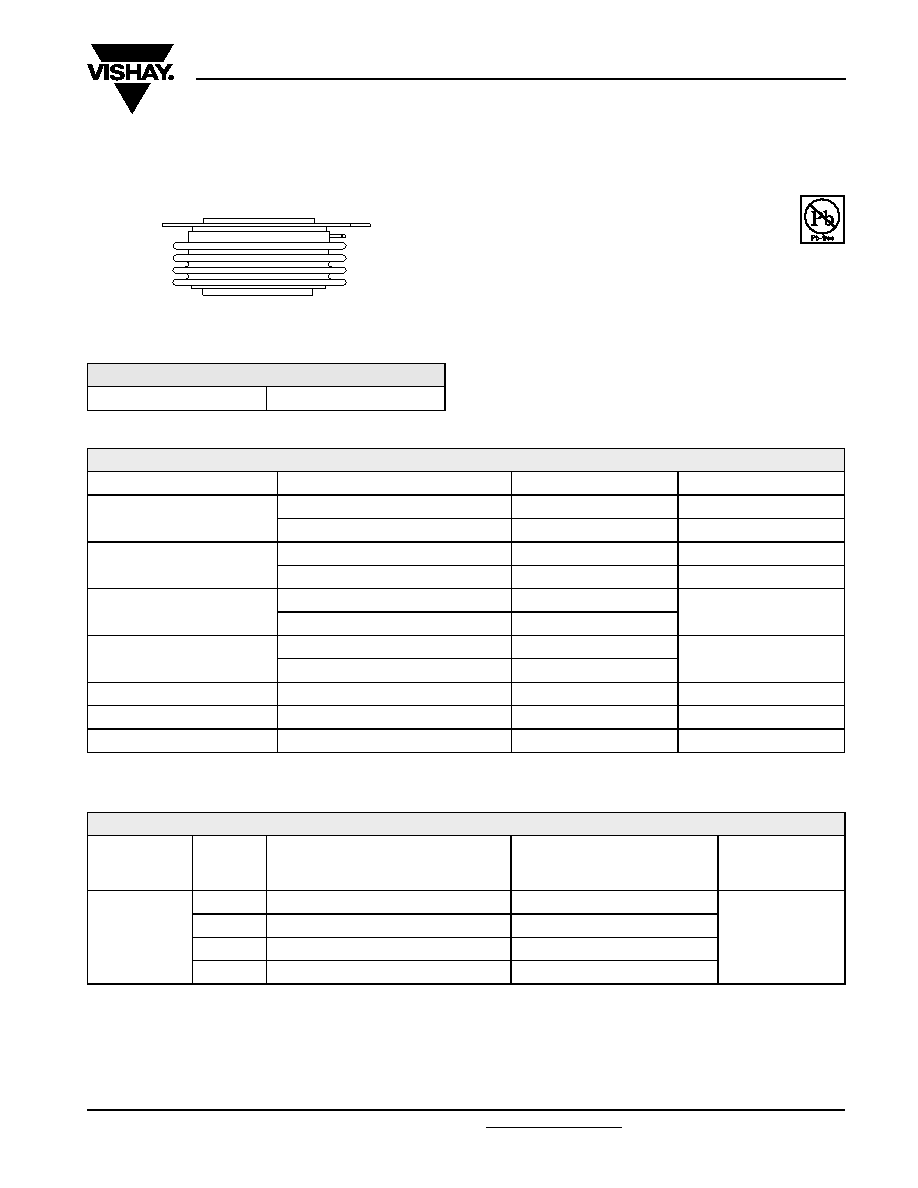

Phase Control Thyristors

(Hockey PUK Version), 910 A

ST700CLPbF Series

Vishay High Power Products

FEATURES

• Center amplifying gate

• Metal case with ceramic insulator

• International standard case TO-200AC (B-PUK)

• Lead (Pb)-free

• Designed and qualified for industrial level

TYPICAL APPLICATIONS

• DC motor controls

• Controlled DC power supplies

• AC controllers

ELECTRICAL SPECIFICATIONS

PRODUCT SUMMARY

IT(AV)

910 A

TO-200AC (B-PUK)

RoHS

COMPLIANT

MAJOR RATINGS AND CHARACTERISTICS

PARAMETER

TEST CONDITIONS

VALUES

UNITS

IT(AV)

910

A

Ths

55

°C

IT(RMS)

1857

A

Ths

25

°C

ITSM

50 Hz

15 700

A

60 Hz

16 400

I2t

50 Hz

1232

kA2s

60 Hz

1125

VDRM/VRRM

1200 to 2000

V

tq

Typical

150

µs

TJ

- 40 to 125

°C

VOLTAGE RATINGS

TYPE NUMBER

VOLTAGE

CODE

VDRM/VRRM, MAXIMUM REPETITIVE PEAK

AND OFF-STATE VOLTAGE

V

VRSM, MAXIMUM

NON-REPETITIVE PEAK VOLTAGE

V

IDRM/IRRM MAXIMUM

AT TJ = TJ MAXIMUM

mA

ST700C..L

12

1200

1300

80

16

1600

1700

18

1800

1900

20

2000

2100
