WI.DP1203-XXX-R DATASHEET
9
4. Functional Description
The Wi.DP1203-XXX-R
TM is a cost effective high performance radio transceiver module designed for the wireless
transmission of digital information over distances of >500 meters in free space. The module is based on the RF
transceiver circuit from SEMTECH, the XE1203F. . For more information on the XE1203F, please refer to the
datasheet, available from the Semtech website: http://www.semtech.com.
The module incorporates an antenna switch and a SAW Filter placed on the Rx path.

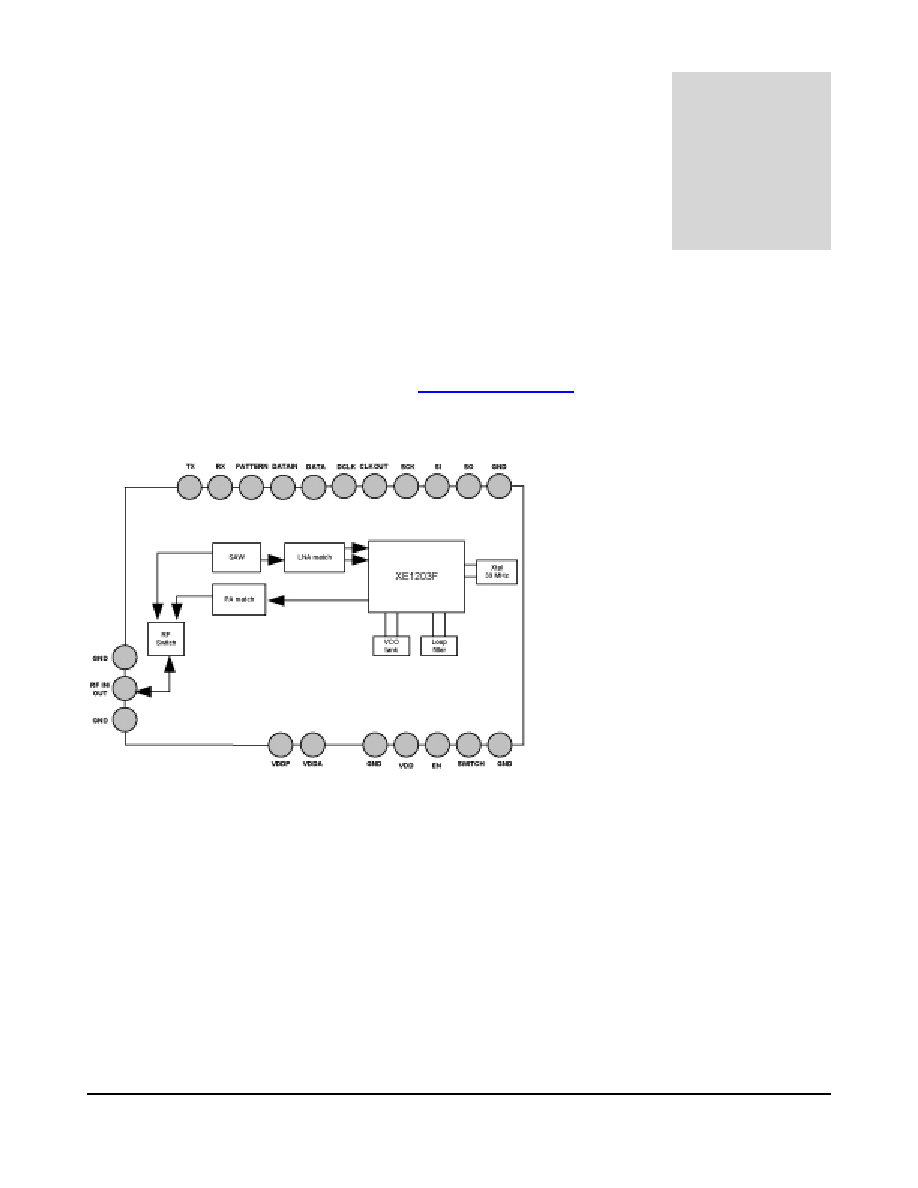

Figure 2: Antenna Switch
