USB50803 - USB50824C

500 WATT MULTI-LINE ULTRA LOW CAPACITANCE TVS ARRAY

DESCRIPTION

The USB508xx and USB508xxC Series are multi-line ultra low capacitance transient voltage suppressor arrays that

provide board level protection for computing and telecommunications applications against the damaging effects of

ESD, tertiary lightning and switching transients.

The USB508xx and USB508xxC Series has a peak pulse power rating of 500 Watts for an 8/20µs waveshape. This

device series meets the IEC 61000-4-2 requirements.

FEATURES

• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

• 500 Watts Peak Pulse Power per Line (tp = 8/20µs)

• Unidirectional and Bidirectional Configurations

• Available in Multiple Voltages Ranging from 3V to 24V

• Ultra Low Capacitance: 3pF

• RoHS Compliant

• REACH Compliant

MEChANICAL ChARACTERISTICS

• Molded JEDEC SO-8 Package

• Approximate Weight: 70 milligrams

• Lead-Free Pure-Tin Plating (Annealed)

• Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• 12mm Tape and Reel Per EIA Standard 481

• Flammability Rating UL 94V-0

APPLICATIONS

• Ethernet - 10/100/1000 Base T

• Computing Interfaces

• xDSL Interfaces

• Cellualr Phone Terminals

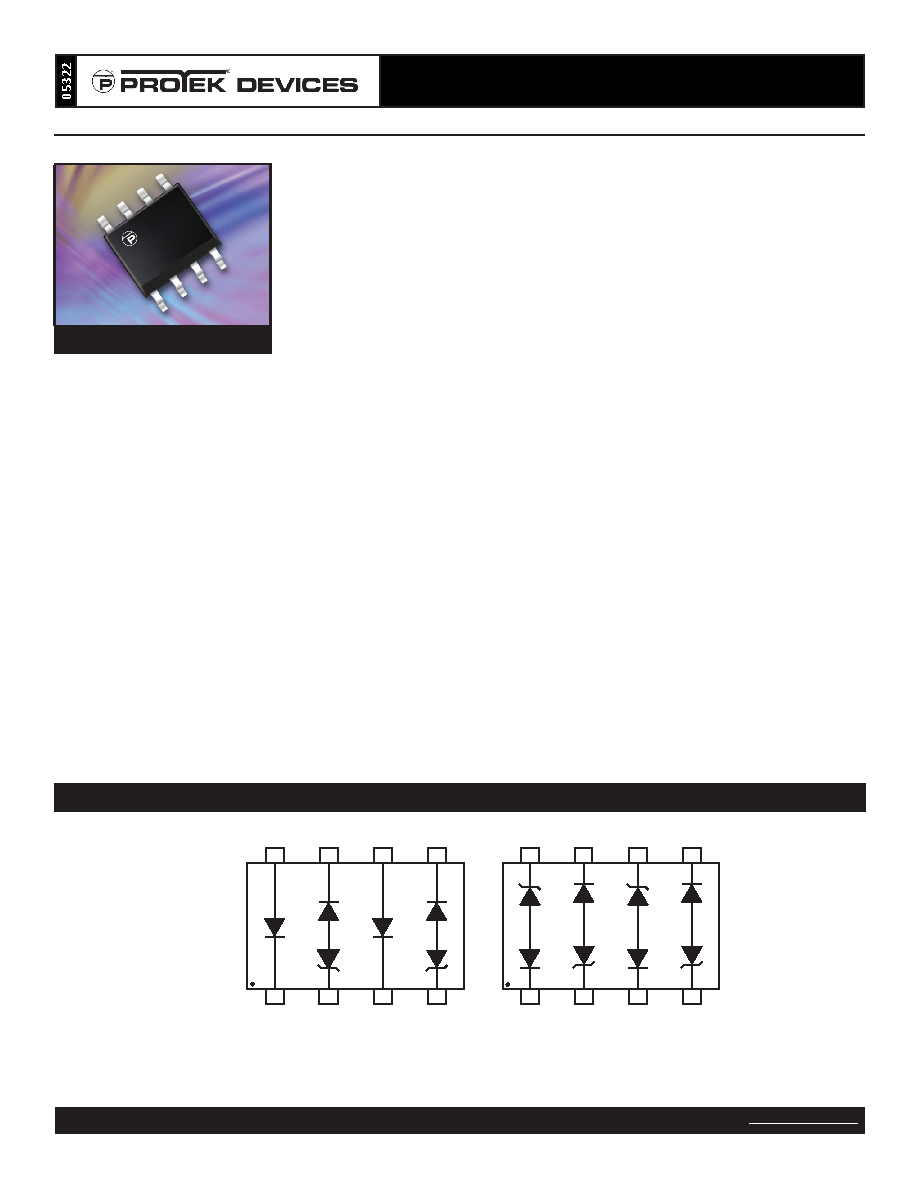

PIN CONFIGURATIONS

SO-8 PACkAGE

1

2

4

8

3

5

6

7

8

7

5

1

6

4

3

2

UNIDIRECTIONAL

BIDIRECTIONAL
