Hardware Configuration

3.4

PWM Input Source

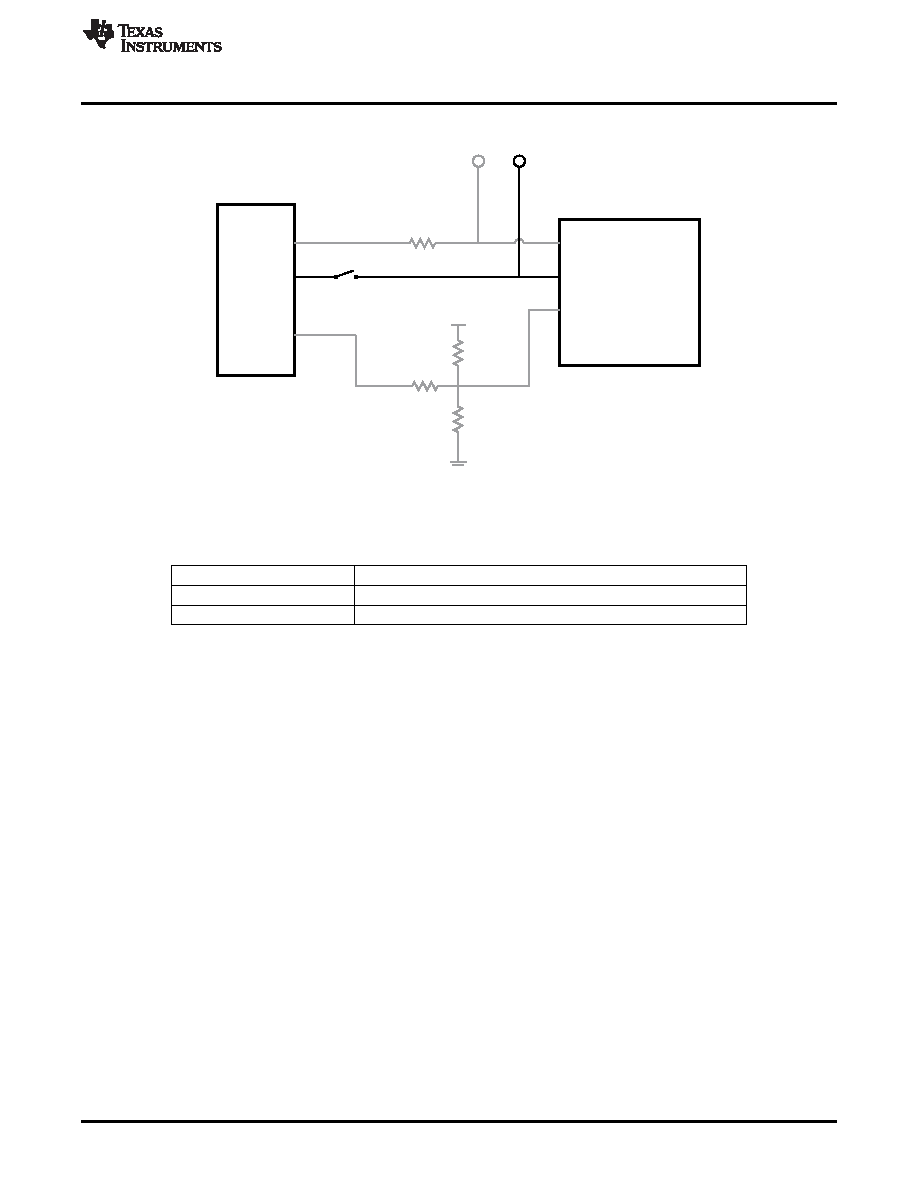

Figure 9. External PWM Input

The DRV2603 input signal can be driven by the on-board MSP430 PWM or an external PWM source. The

input source is selected by shorting or disconnecting JP1.

JP1

PWM Source

Shorted

MSP430

Open

External PWM using PWM testpoint

To set the DRV2603 enable pin high while using an external PWM source:

1. Enter Additional Hardware Modes by holding the "+" button until the actuator buzzes and the mode

LEDs blink.

2. Select Mode 3 (00011'b) using the increment mode button ("+").

3. In Mode 3, press one of the following buttons to enable the DRV2603.

•

B1 - disable the DRV2603

•

B2 - enable with LRA auto-resonance on

•

B3 - enable with LRA auto-resonance off

•

B4 - enable in ERM mode

4. If the DRV2603 is enabled, the "EN" LED will glow.
