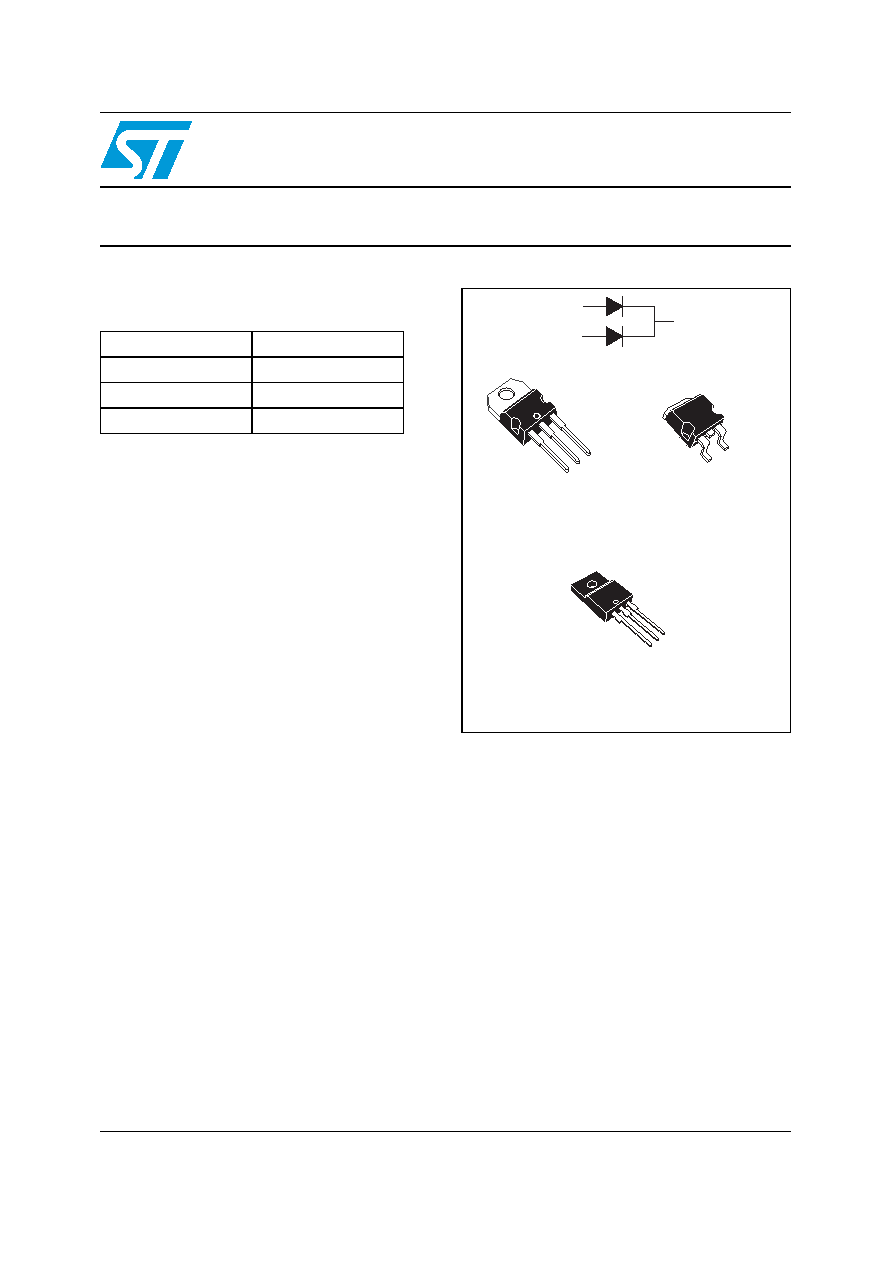

STPS10L40C

Low drop power Schottky rectifier

Main product characteristics

Features and Benefits

■ Low forward voltage drop meaning very small

conduction losses

■ Low dynamic losses as a result of the schottky

barrier

■ Insulated package: TO-220FPAB

insulating voltage = 2000 V DC

capacitance = 12 pF

■ Avalanche capability specified

Description

Dual center tap Schottky rectifiers suited for

Switched Mode Power Supplies and high

frequency DC to DC converters.

Packaged in TO-220AB, TO-220FPAB and

D2PAK, these devices are intended for use in low

voltage, high frequency inverters, free-wheeling

and polarity protection applications.

IF(AV)

2 x 5 A

VRRM

40 V

Tj (max)

150° C

VF(max)

0.46 V

D2PAK

STPS10L40CG

TO-220AB

STPS10L40CT

TO-220FPAB

STPS10L40CFP

A1

A2

K

A1

K

A2

A1

K

A2

A1

K

A2

www.st.com
