Description

M24512-W M24512-R M24512-DR M24512-DF

6/40

Doc ID 16459 Rev 26

Description

The M24512 is a 512-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable

Memory) organized as 64 K × 8 bits.

The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R and

M24512-DR can operate with a supply voltage from 1.8 V to 5.5 V and the M24512-DF can

operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock

frequency of 1 MHz (or less) over an ambient temperature range of –40 °C / +85 °C.

The M24512-D offers an additional page, named the Identification Page (128 bytes). The

Identification Page can be used to store sensitive application parameters which can be

(later) permanently locked in Read-only mode.

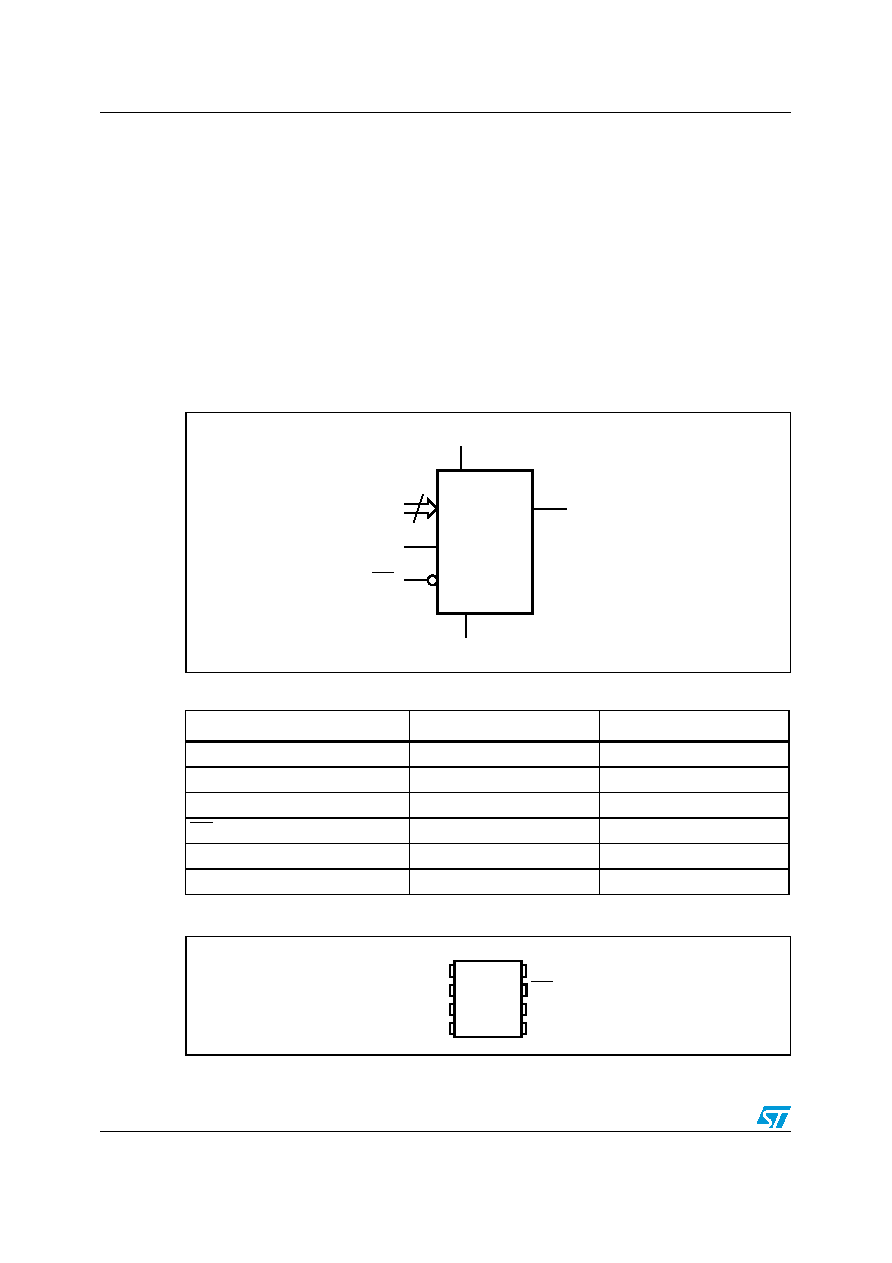

Figure 1.

Logic diagram

Figure 2.

8-pin package connections

See Section 9: Package mechanical data for package dimensions, and how to identify pin 1.

Table 1.

Signal names

Signal name

Function

Direction

E2, E1, E0

Chip Enable

Input

SDA

Serial Data

I/O

SCL

Serial Clock

Input

Write Control

Input

VCC

Supply voltage

VSS

Ground
