DebUG IN HIGH DeFINITION WITH HD4096

Clean, Crisp Waveforms

When compared to waveforms

captured and displayed by 8-bit

oscilloscopes, waveforms captured

with HD4096 technology are

dramatically crisper and cleaner.

Oscilloscopes with HD4096 acquire

waveforms at high resolution, high

sample rate and low noise to display

the most accurate waveforms.

More Signal Details

Signal details often lost in the

noise are clearly visible and easy to

distinguish when captured on

oscilloscopes with HD4096. Details

which were previously difficult to

even see can now be easily seen and

measured. Using the oscilloscope

zoom capabilities gives an even closer

look at the details for unparalleled

insight to the signals on screen.

Unmatched

Measurement Precision

Precise measurements are critical for

effective debug and analysis. HD4096

enables oscilloscopes to deliver

unmatched measurement precision to

improve testing capabilities and provide

better results.

Oscilloscopes with HD4096 have a variety of benefits that

allow the user to debug in high definition. Waveforms

displayed by high definition oscilloscopes are cleaner and

crisper. More signal details can be seen and measured; these

measurements are made with unmatched precision resulting

in better test results and shorter debug time.

8-bit

12-bit

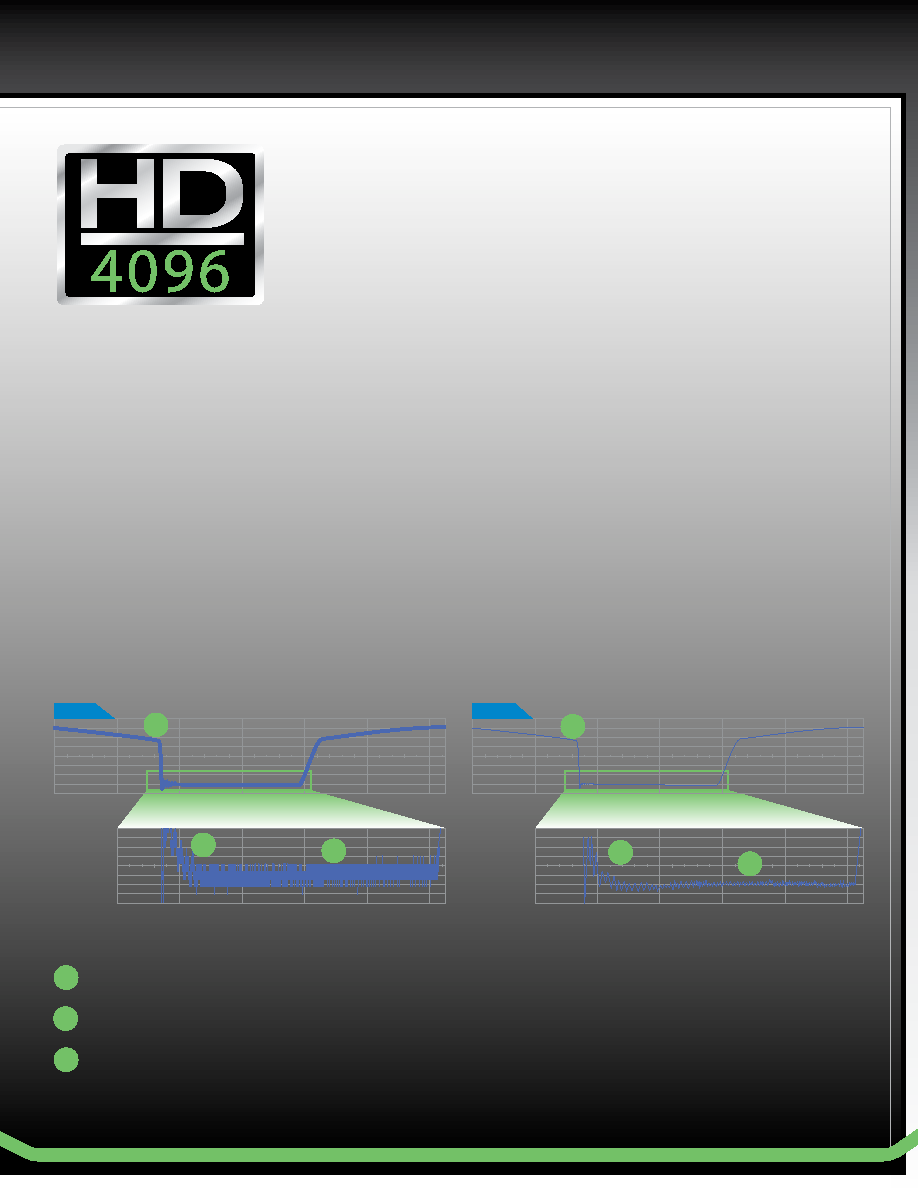

Clean, Crisp Waveforms | Thin traces show the actual waveform with minimal noise interference

Unmatched Measurement Precision | Measurements are more precise and not affected by quantization noise

More Signal Details | Waveform details lost on an 8-bit oscilloscope can now be clearly seen
