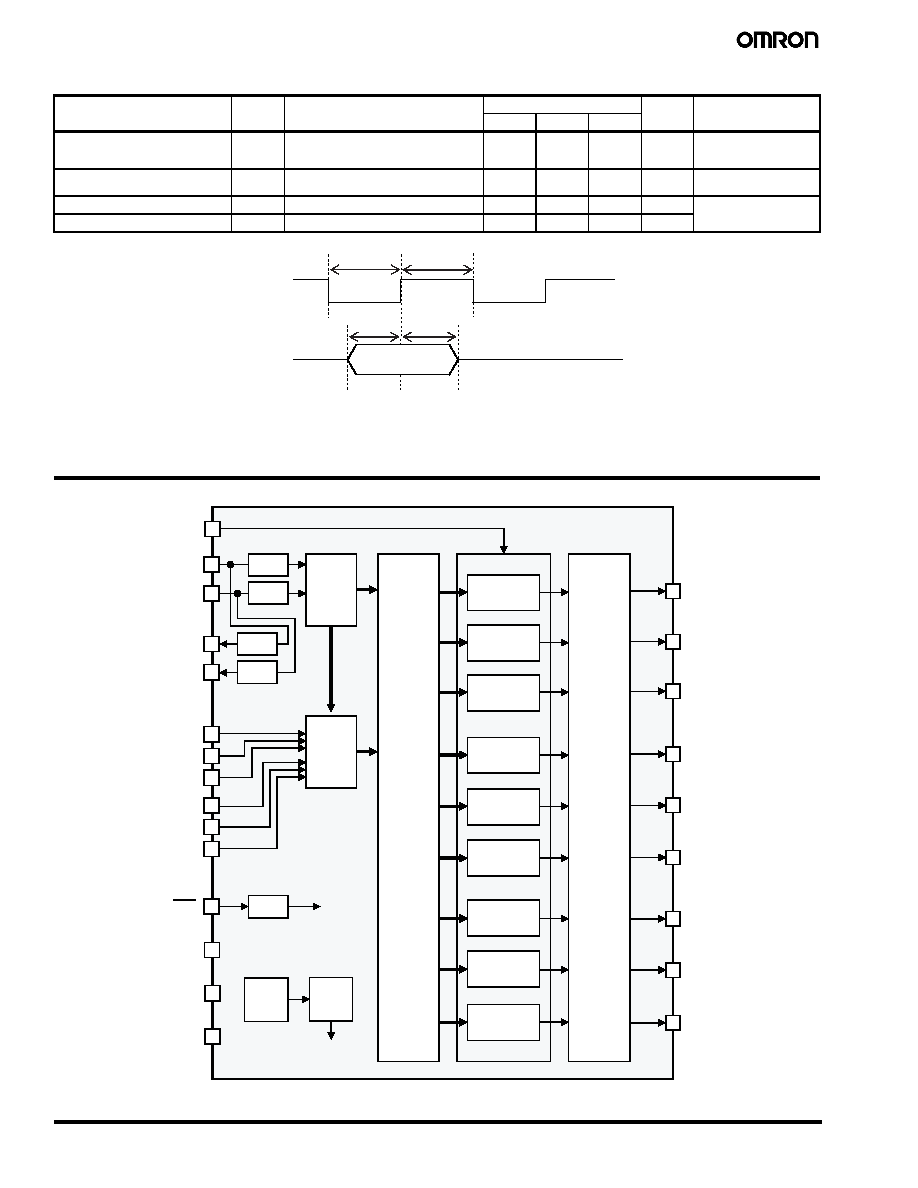

LED Control IC
W2RF004RM
Timing Characteristics (Ta = 25
°C, V
DD = 5V)
Engineering Data
Block Diagram
Item
Symbol
Condition
Spec.
Unit
Applicable
terminal
Min.
Typ.
Max.
Driving Output PWM Cycle
T
PWM
- - -
3.88
4.00
4.12
ms
OUTA0 to 2
OUTB0 to 2
OUTC0 to 2
Communication Clock
Pulse Width
t
SCL
- - -
100
- - -
- - -
ns
SCL-I
Setup Time
t
SET
- - -
50
- - -
- - -
ns
SDA-I, SCL-I
Hold Time
t
HLD
- - -
50
- - -
- - -
ns
SCL-I
Valid
Fig. 1 Input timing waveforms
SDA-I
tSCL
tSCL
tSET
tHLD
Register
Communi-
cation
circuit
SDA-I
SCL-I
ADRA2
ADRA1
ADRA0
OUTA0
OUTB0
OUTC0
GND
VDD
Clock
division
circuit
System clock
Reset
SDA-O
SCL-O
ADRB2
ADRB1
ADRB0
Operational
control
Filter
Filter
Buffer
Buffer
Internal
oscillation
Filter
Gradation
control
A0
Gradation
control
B0
Gradation
control
C0
Gradation
control
A1
Gradation
control
B1
Gradation
control
C1
Gradation
control
A2
Gradation
control
B2
Gradation
control
C2
Output
circuit
OUTA1
OUTB1
OUTC1
OUTA2
OUTB2
OUTC2
CAP
INV
RST
