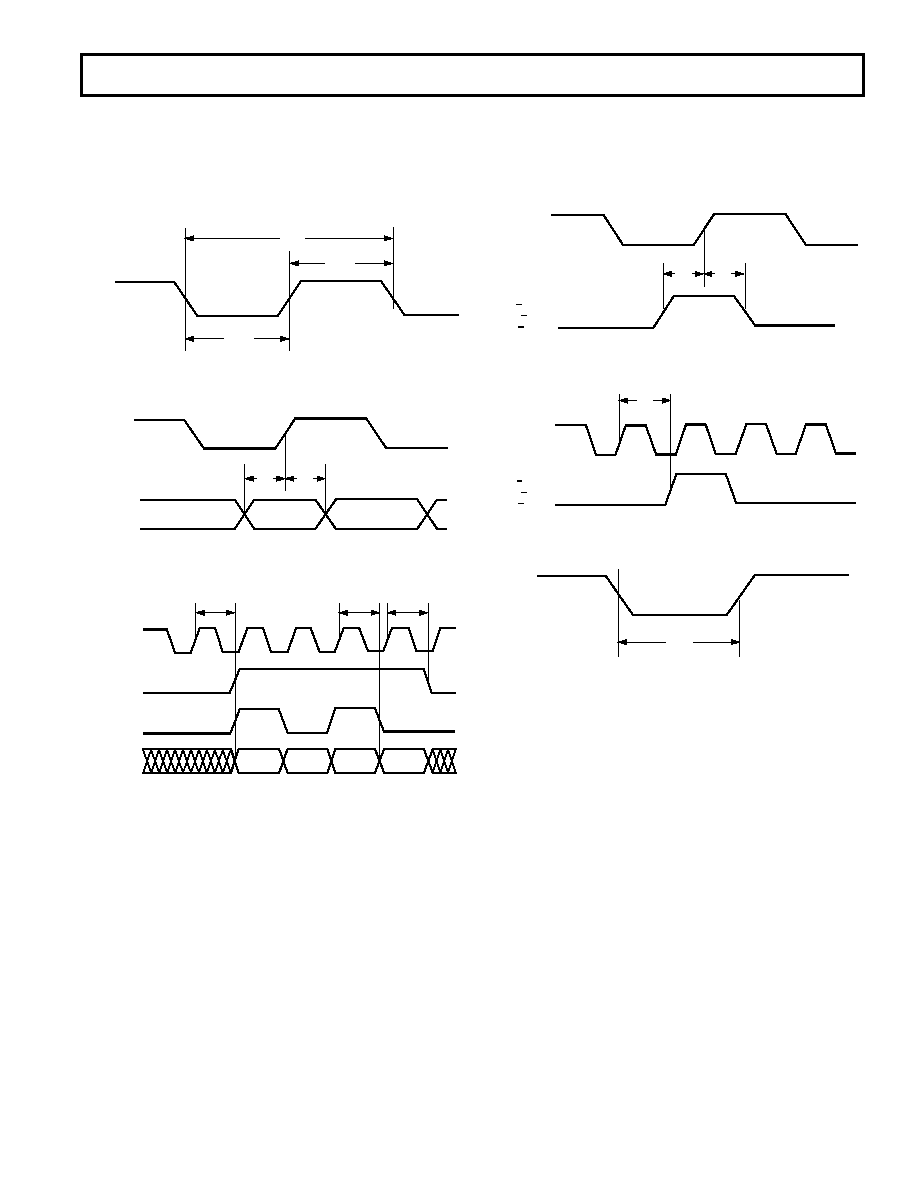

7 / 43 page ![]() AD6620 –7– REV. 0 TIMING DIAGRAMS CLK, INPUTS, PARALLEL OUTPUTS RESET with PAR/SER = “1” establishes Parallel Outputs active. tCLKH tCLKL tCLK CLK Figure 3. CLK Timing Requirements CLK IN[15:0] EXP[2:0] A/B tSI tHI DATA Figure 4. Input Data Timing Requirements CLK OUT[15:0] VALID OUTPUT DATA DVOUT I/QOUT tDPR tDPF I Q I Q IA QA IB QB tDPF Figure 5. Parallel Output Switching Characteristics SYNC PULSES: SLAVE OR MASTER tSY tHY CLK SYNC NCO SYNC CIC SYNC RCF Figure 6. SYNC Slave Timing Requirements tDY CLK SYNC NCO SYNC CIC SYNC RCF Figure 7. SYNC Master Delay tRESL RESET Figure 8. Reset Timing Requirements |
|
