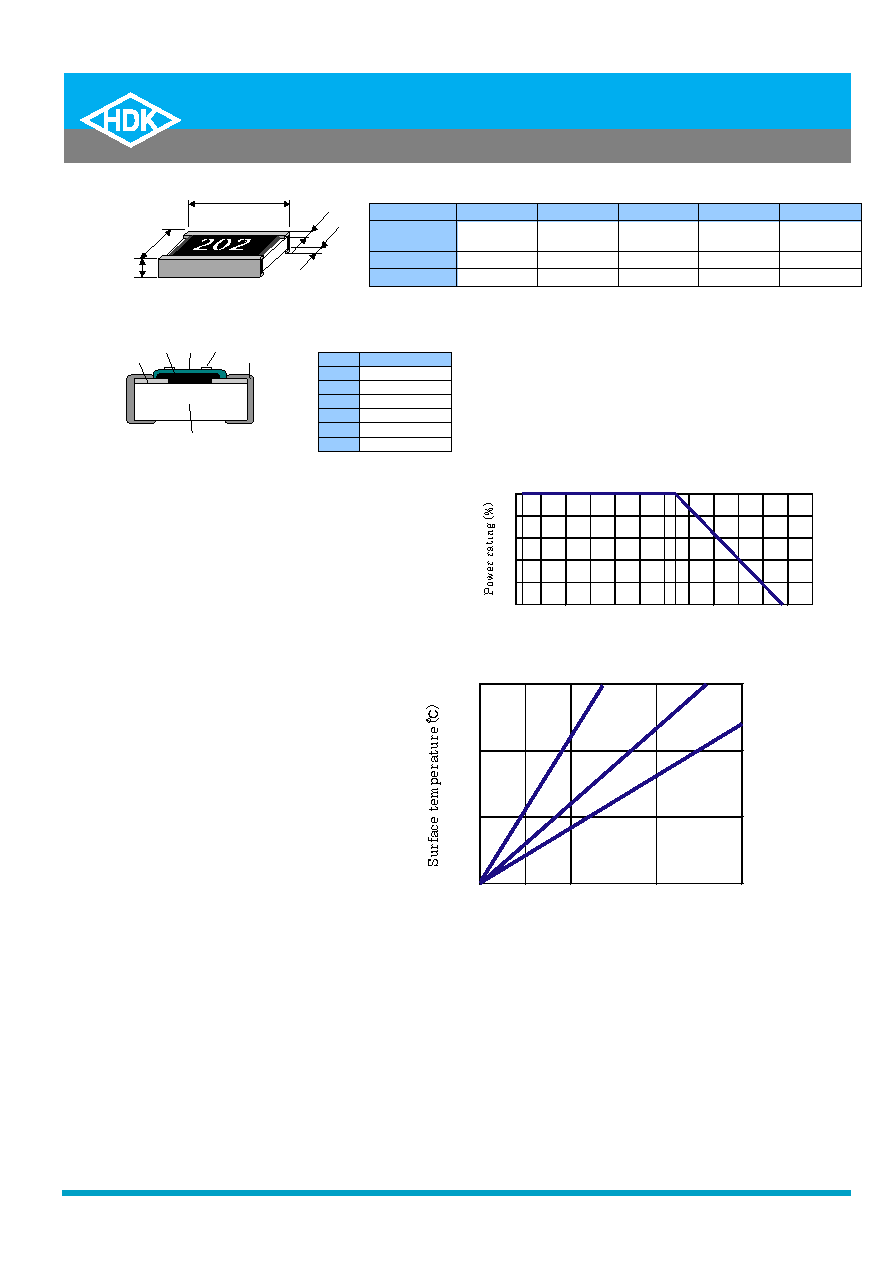

Dimensions

■

Structure

■

Surface Temperature

For resistors operated in ambient temperature above70 ℃,

power rating must be derated in accordance with the

derating curve.

■ Surface Temperature

Surface temperature rise is shown in this figure.

Condition : Measured by soldering on glass

cloth base material epoxy resin (t=1.6mm).

■

Packaging

Refer "Dimension, Packaging, etc."

HOKURIKU

Specifications are subject to change without notice

High Power Low Resistance Chip Resistors

Model No.

WLCR32

3.20±0.15

1.60±0.15

0.30±0.20

0.50±0.20

0.55

＋0.15/-0.05

WLCR50

5.00±0.20

2.50±0.20

0.50±0.20

0.60±0.20

0.56±0.15

WLCR64

6.30±0.20

3.20±0.20

0.50±0.20

0.90±0.20

0.56±0.15

①

②

③④ ⑤

⑥

Symbol

Material List

①

Ceramic Substrate

②

Conductor

③

Resistor

④

Over coat

⑤

Marking

⑥

Side Electrode

100

-55℃

0℃

70℃

155℃

Ambient Temperature(℃)

150

100

200

300

Power rating (%)

WLCR50

WLCR64

WLCR32

Unit : mm
