AD8564AR 데이터시트(PDF) 8 Page - Analog Devices

부품명 AD8564AR
상세설명  Quad 7 ns Single Supply Comparator
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

AD8564AR 데이터시트(HTML) 8 Page - Analog Devices

  AD8564AR Datasheet HTML 1Page - Analog Devices AD8564AR Datasheet HTML 2Page - Analog Devices AD8564AR Datasheet HTML 3Page - Analog Devices AD8564AR Datasheet HTML 4Page - Analog Devices AD8564AR Datasheet HTML 5Page - Analog Devices AD8564AR Datasheet HTML 6Page - Analog Devices AD8564AR Datasheet HTML 7Page - Analog Devices AD8564AR Datasheet HTML 8Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 8 / 8 page
background image
AD8564
–8–
REV. A

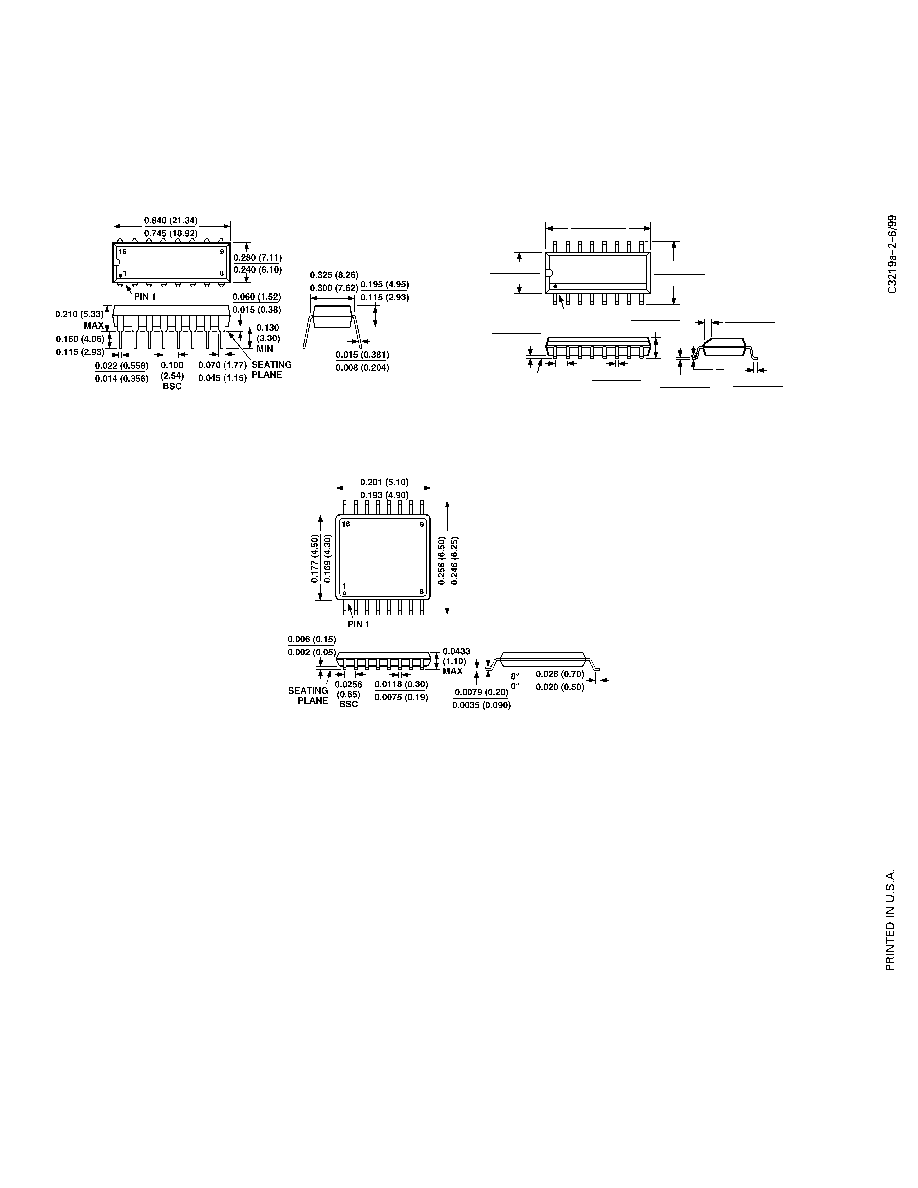

OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
16-Lead Epoxy DIP
(N-16)
16-Lead Narrow Body SOIC
(R-16A)
16-Lead Thin Shrink Small Outline (TSSOP)
(RU-16)
16
9
8
1
0.3937 (10.00)
0.3859 (9.80)
0.2440 (6.20)
0.2284 (5.80)
0.1574 (4.00)
0.1497 (3.80)
PIN 1
SEATING
PLANE
0.0098 (0.25)
0.0040 (0.10)
0.0192 (0.49)
0.0138 (0.35)
0.0688 (1.75)
0.0532 (1.35)
0.0500
(1.27)
BSC
0.0099 (0.25)
0.0075 (0.19)
0.0500 (1.27)
0.0160 (0.41)
8
0
0.0196 (0.50)
0.0099 (0.25)
45
