REV. A

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties

which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of Analog Devices.

a

Matched Monolithic

Dual Transistor

MAT01

FEATURES

V typ, 100

V max

V/ C max

Low Noise Voltage: 0.23

V p-p—0.1 Hz to 10 Hz

High Breakdown: 45 V min

Available in Die Form

PRODUCT DESCRIPTION

The MAT01 is a monolithic dual NPN transistor. An exclusive

Silicon Nitride “Triple-Passivation” process provides excellent

stability of critical parameters over both temperature and time.

Matching characteristics include offset voltage of 40

µV, tem-

perature drift of 0.15

µV/°C, and h

10 nA. The high gain at low collector current makes the

MAT01 ideal for use in low power, low level input stages.

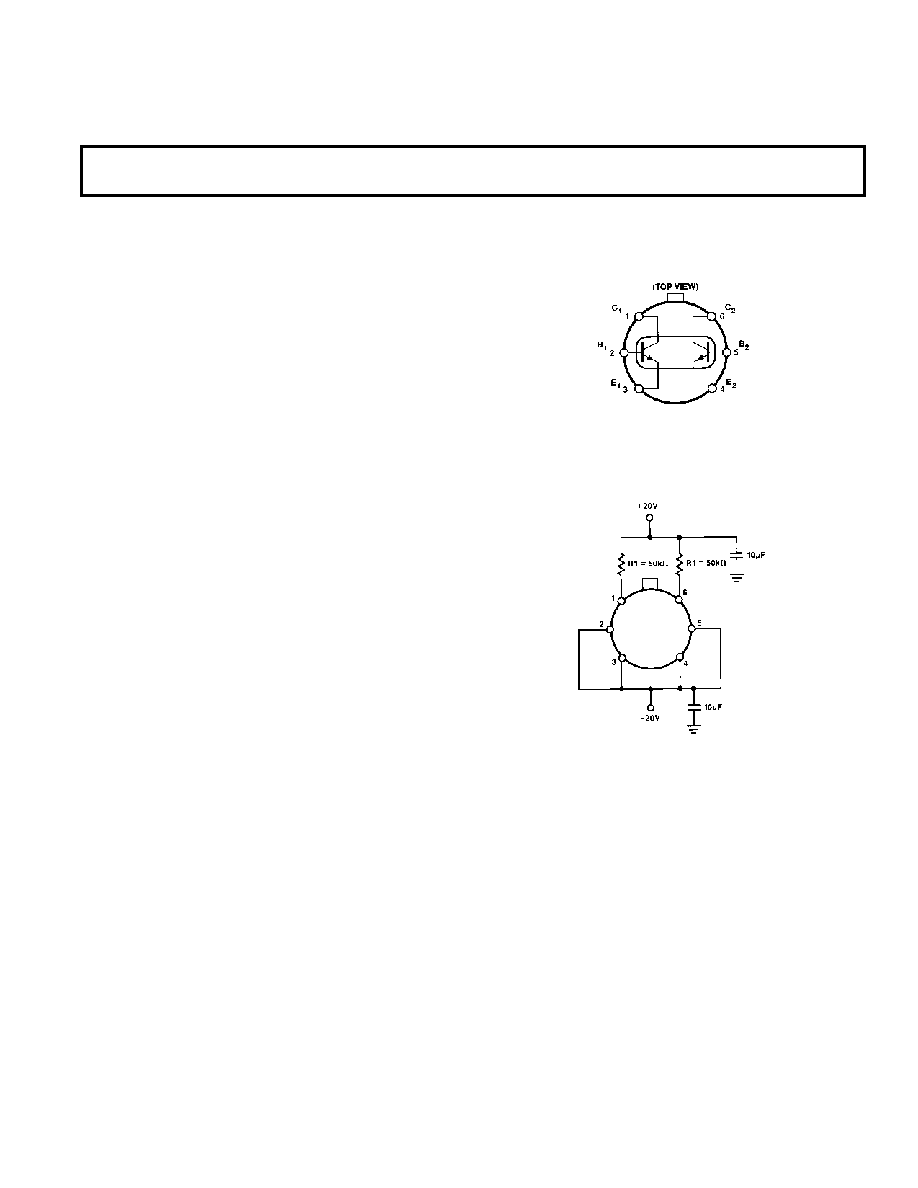

PIN CONNECTION

TO-78

(H Suffix)

NOTE: Substrate is connected to case.

BURN-IN CIRCUIT
